Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Somerset Regal L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

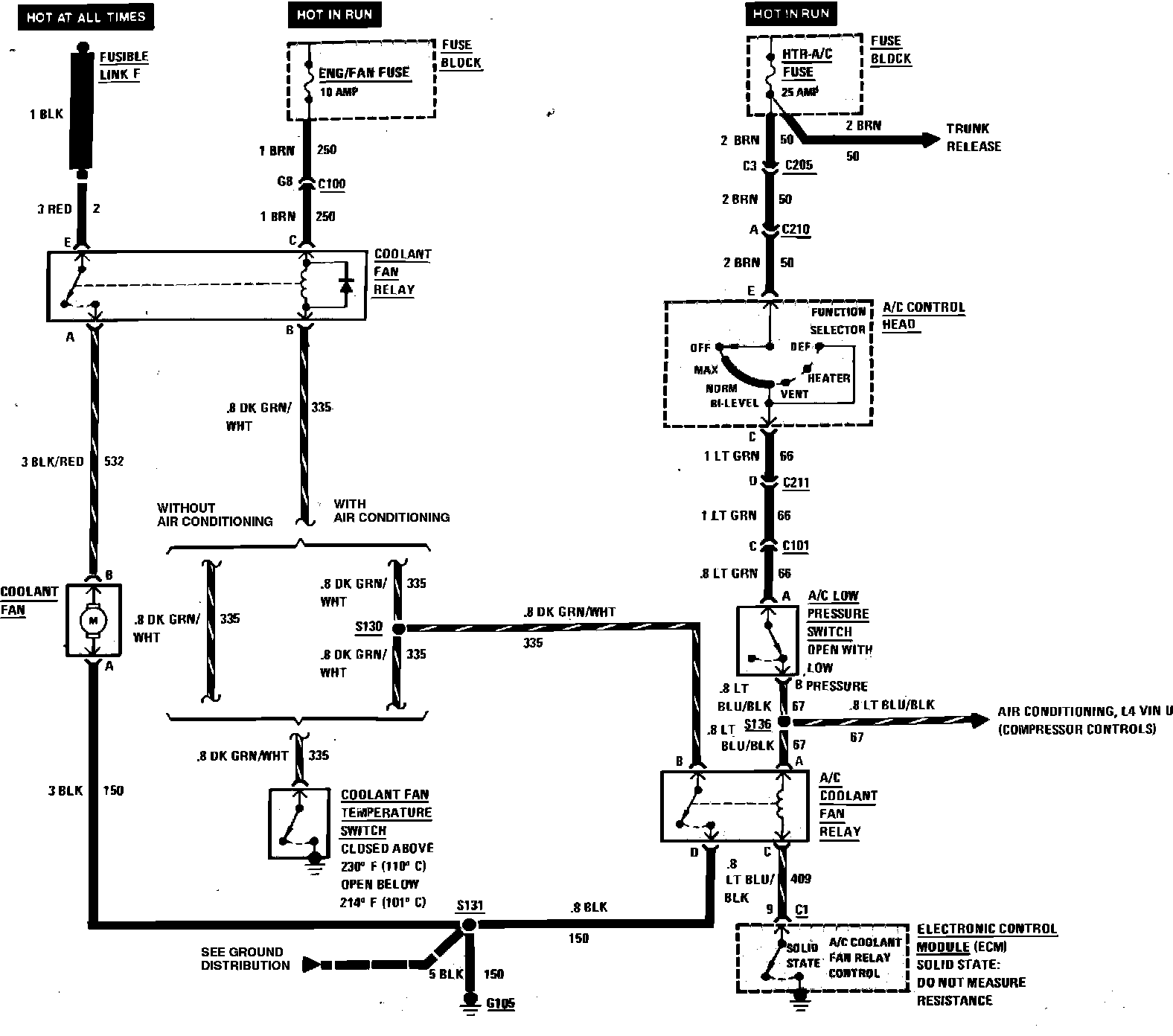

Cooling Fan Wiring Circuit:
