Electronic/Powertrain Control Module (ECM/PCM)

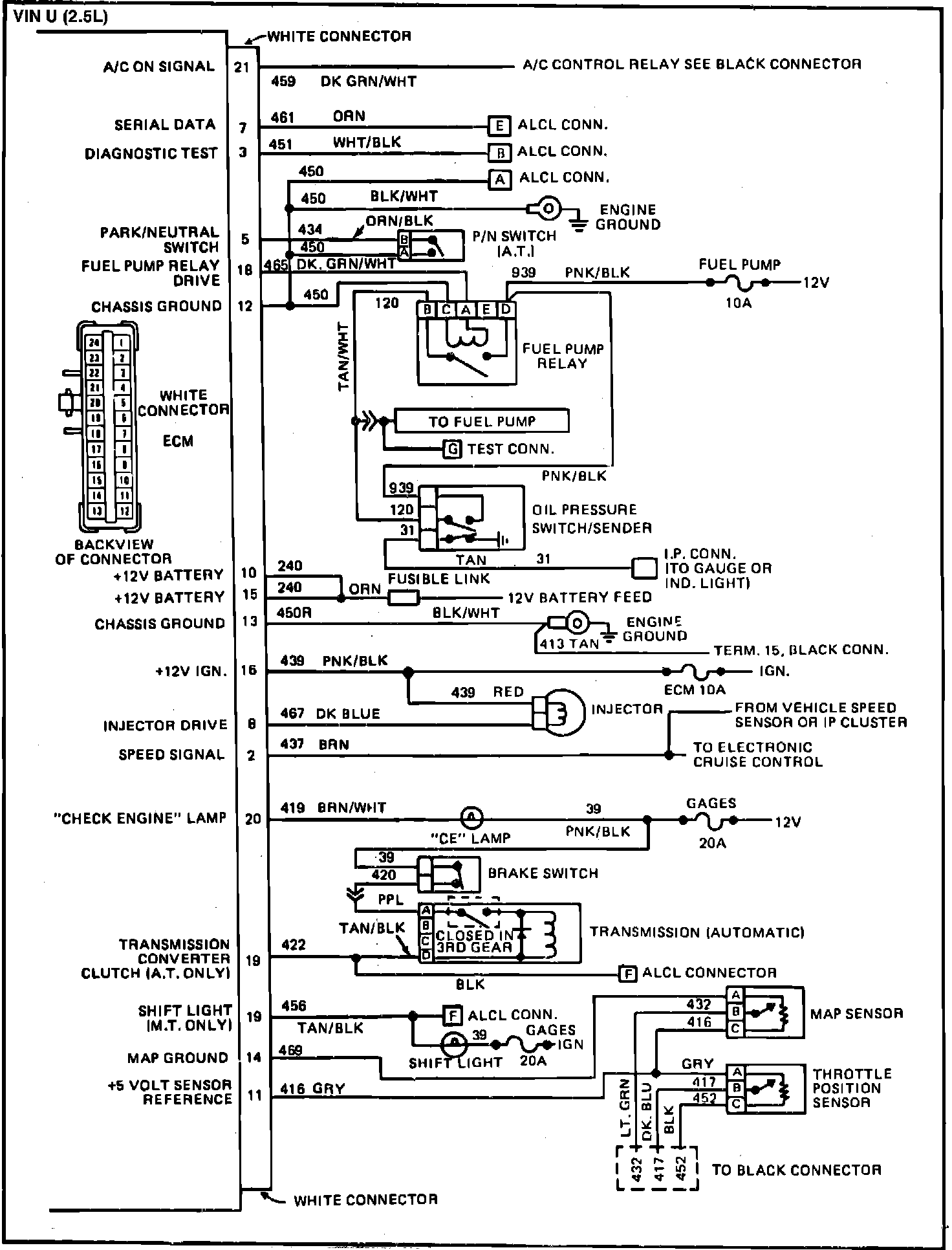

Fig. 034 ECM Wiring Diagrams (1 of 2):

Fig. 035 ECM Wiring Diagrams (2 of 2):
