Engine Mount: Service and Repair

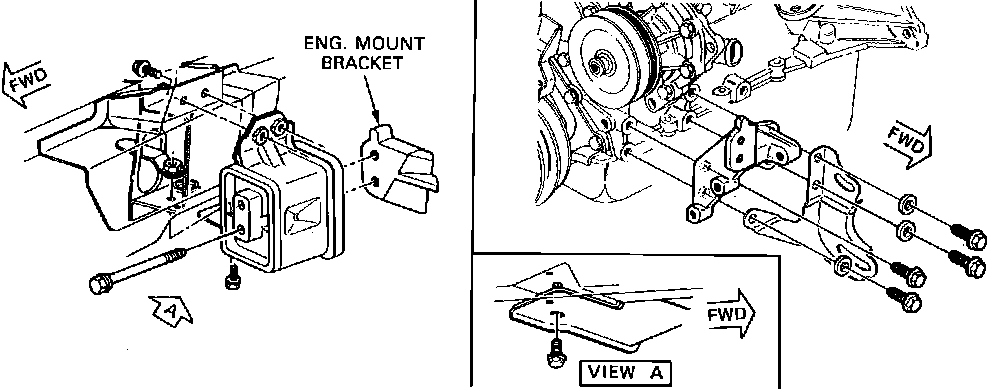

Fig. 1 Front engine mount:

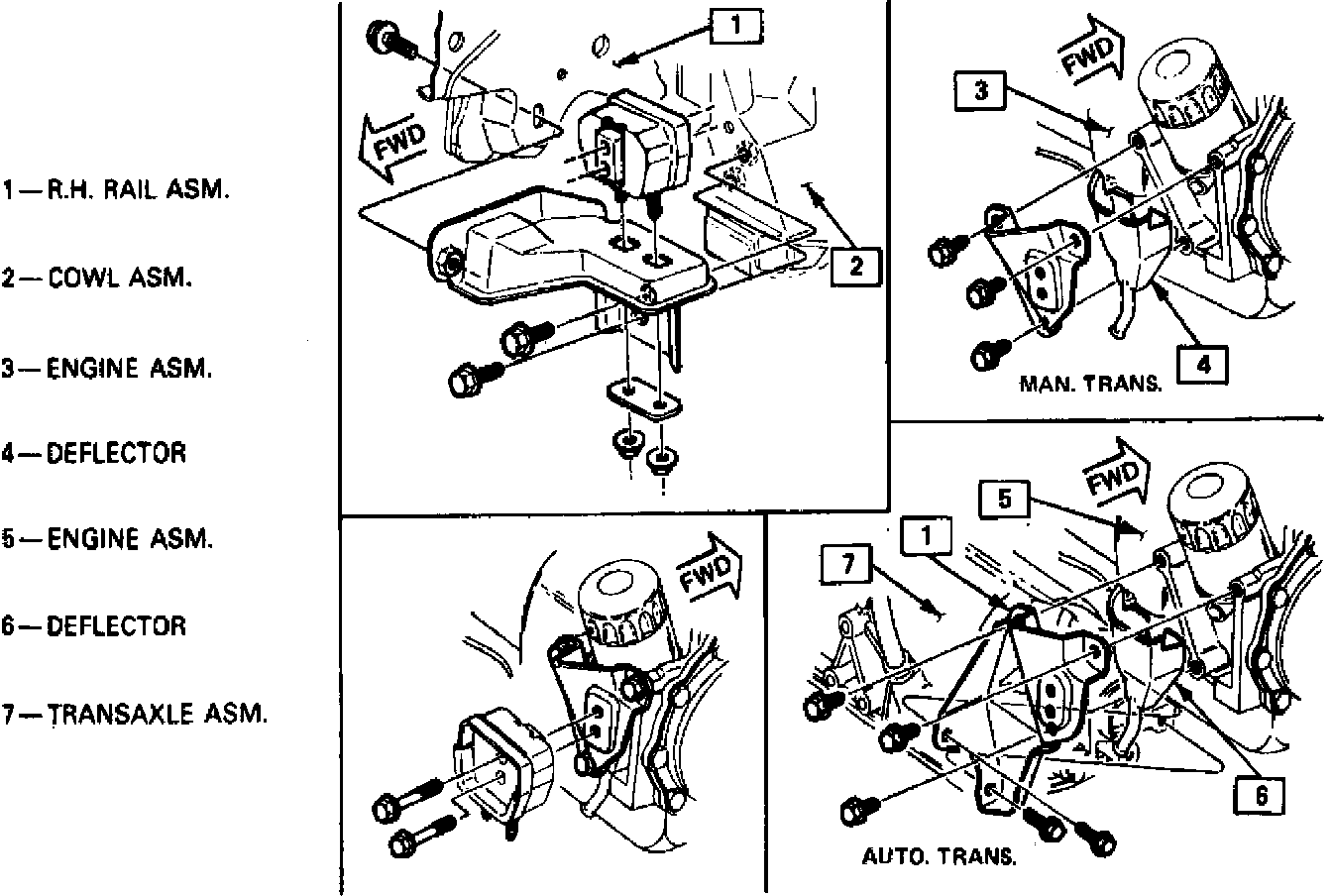

Fig. 2 Rear engine mount:

1. Support engine using fixture No. J-28467 or equivalent.
2. Raise and support vehicle.
3. Remove engine mount-to-chassis attaching bolts from front mount, Fig. 1, and engine mount-to-bracket nuts from rear mount, Fig. 2.
4. Remove engine mount-to-bracket nuts from front mount and engine mount-to-chassis attaching bolts from rear mount.
5. Remove engine mounts.
6. Reverse procedure to install.
