Radio/Stereo: Service and Repair

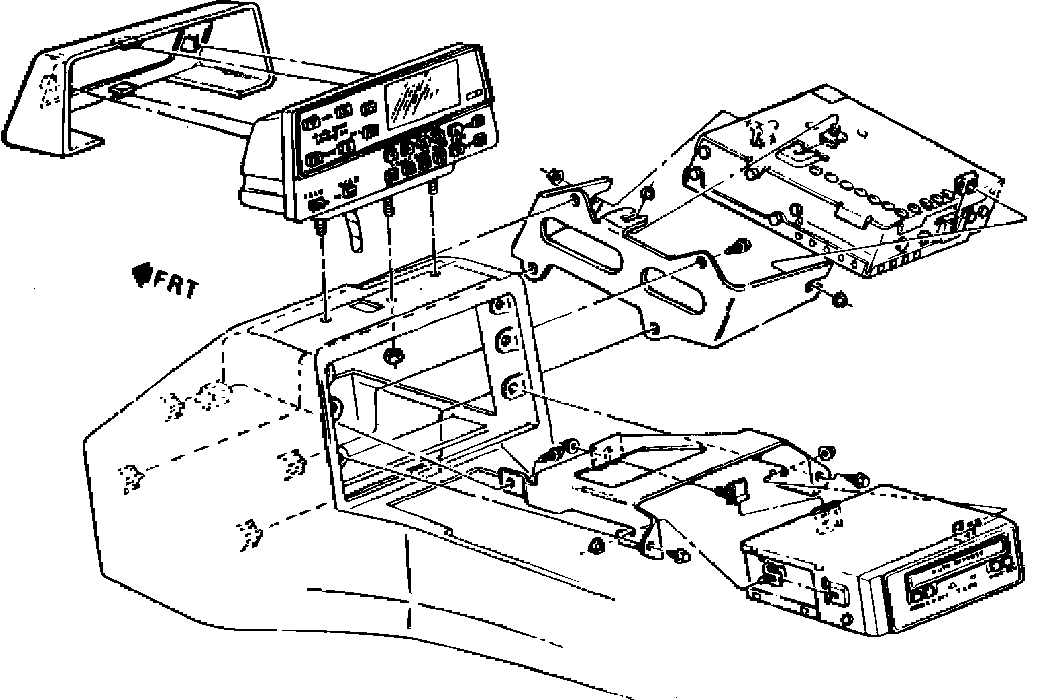

Fig. 8 Radio installation. Skylark & Somerset:

SKYLARK & SOMERSET
1. Disconnect battery ground cable.
2. Remove console extensions, lower instrument panel trim and face plates, as needed, to gain access to components and mounting hardware.
3. Remove necessary screws and nuts, Fig. 8, disconnect electrical connectors and antenna lead if necessary, then remove components.
4. Reverse procedure to install.
