Installation

For additional information see Notes, Warnings, and Hints. Fundamentals and Basics

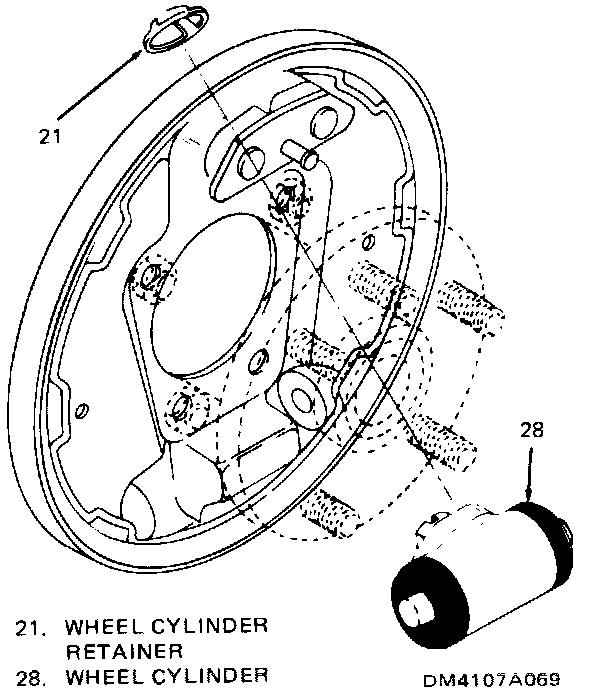

Wheel Cylinder:

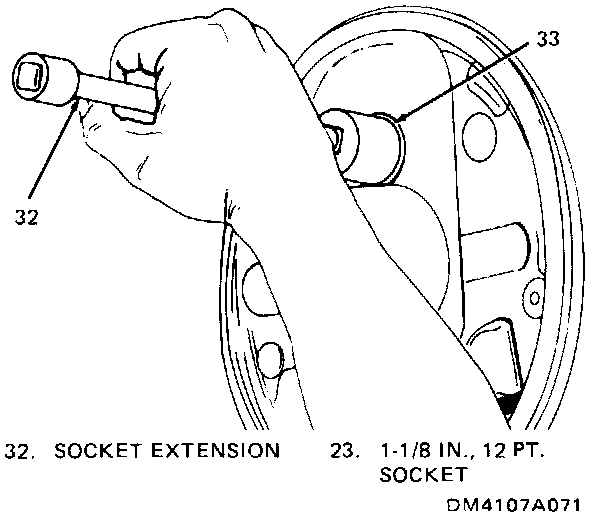

Installing Wheel Cylinder Retainer:

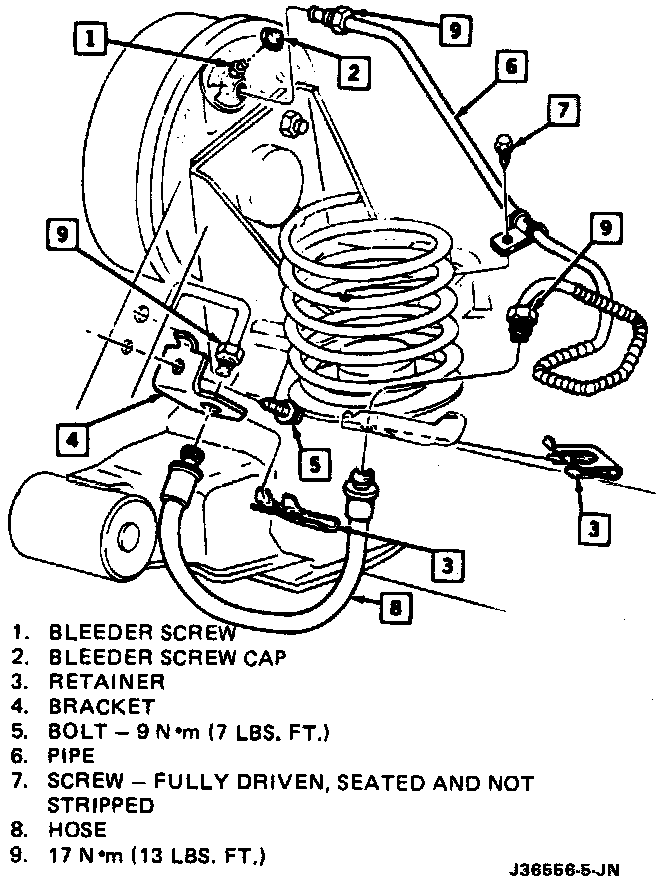

Rear Brake Pipes And Hoses:

- Position wheel cylinder assembly and hold in place with wooden block between cylinder and axle flange.
- Install new retainer over wheel cylinder abutment using a 11/8 inch 12-point socket and socket extention.
- Install inlet line and torque tube nut to 17 Nm (150 in. lb.).
- Bleed wheel cylinder. Service and Repair
