Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Somerset Regal V6-181 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
System Diagram
System Diagram

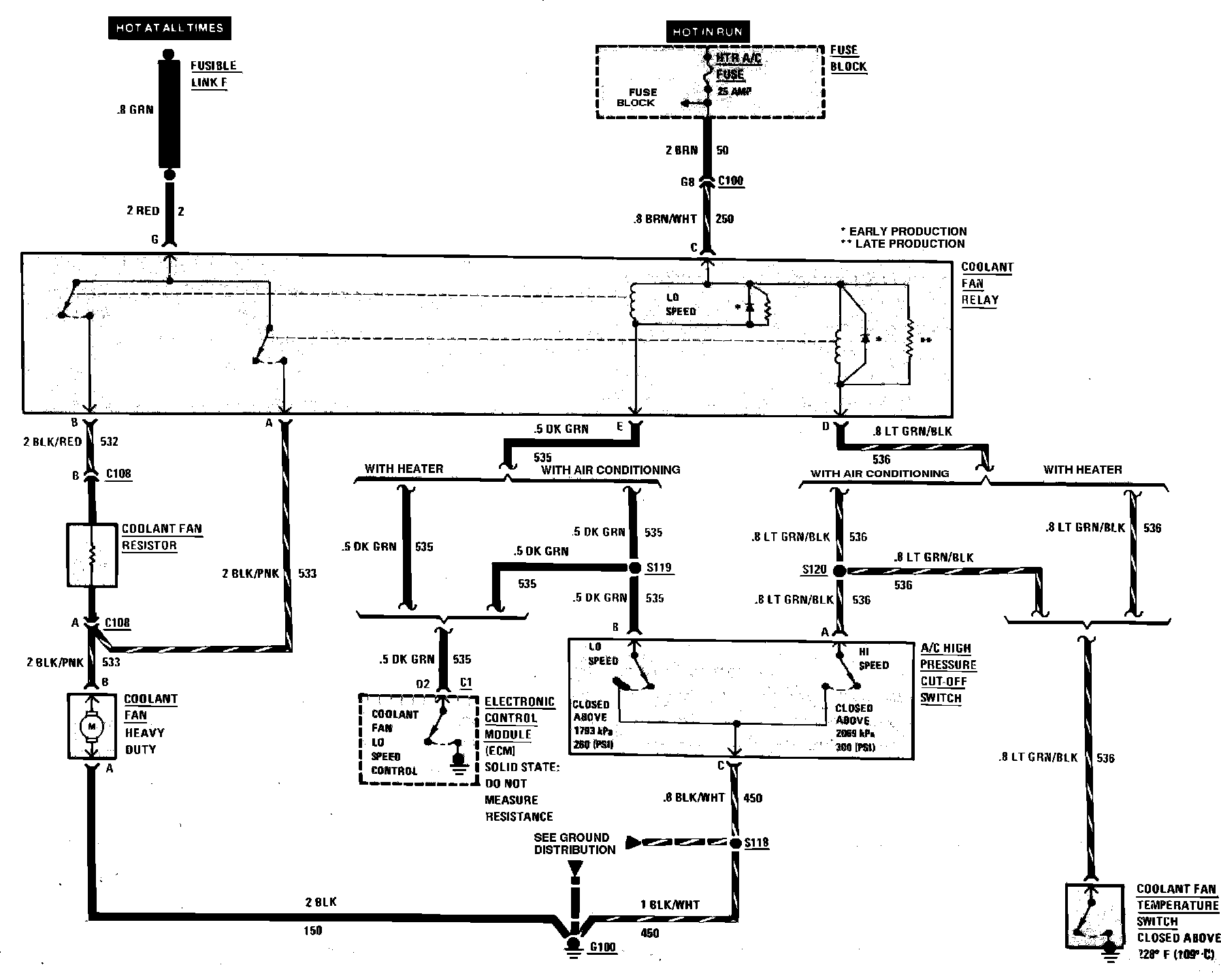

Cooling Fan Wiring Circuit (All Models):
