Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
Audible Warning Device

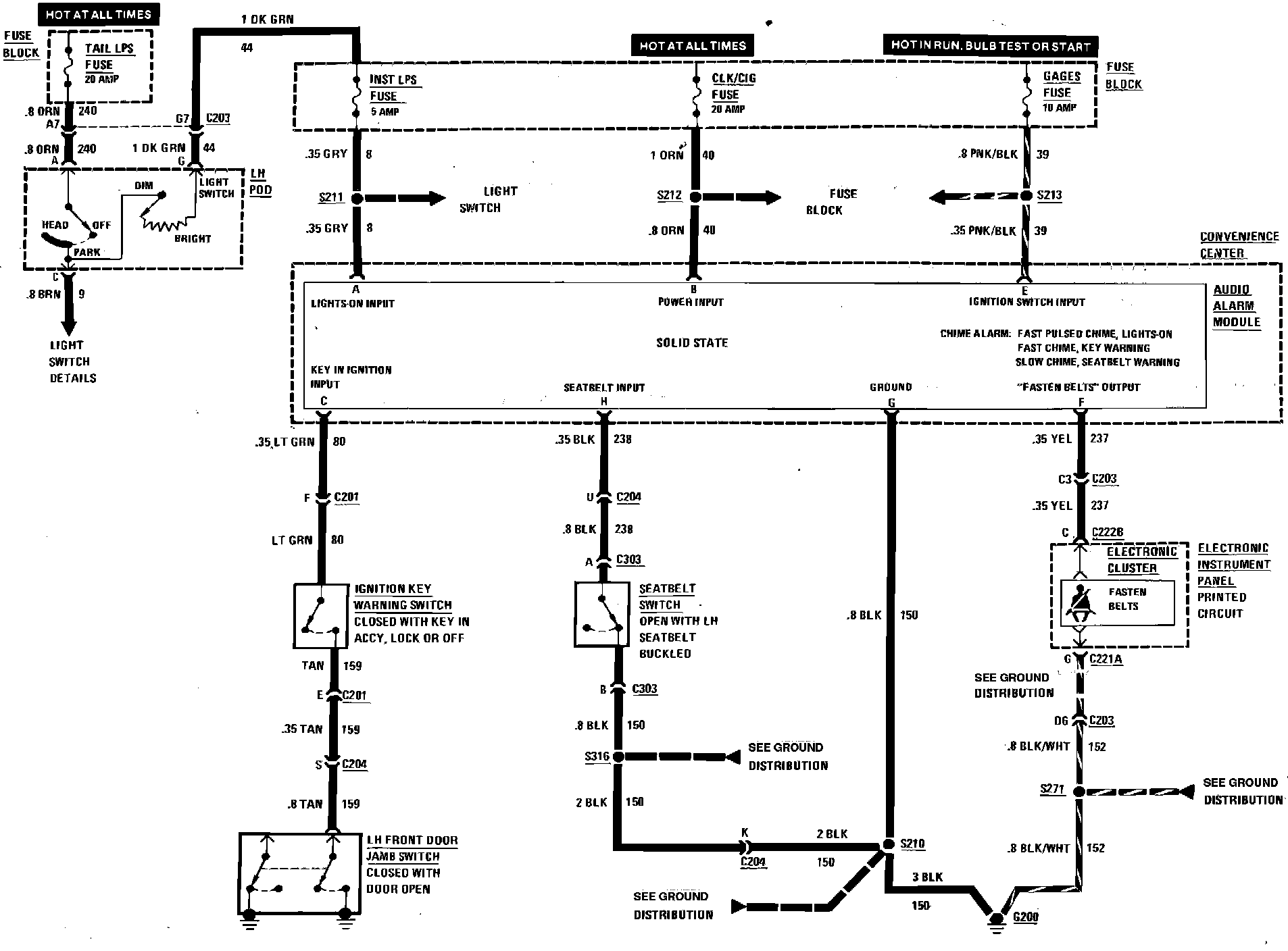

Audio Alarm System Wiring Circuit:
