With AM/FM Stereo & ETR

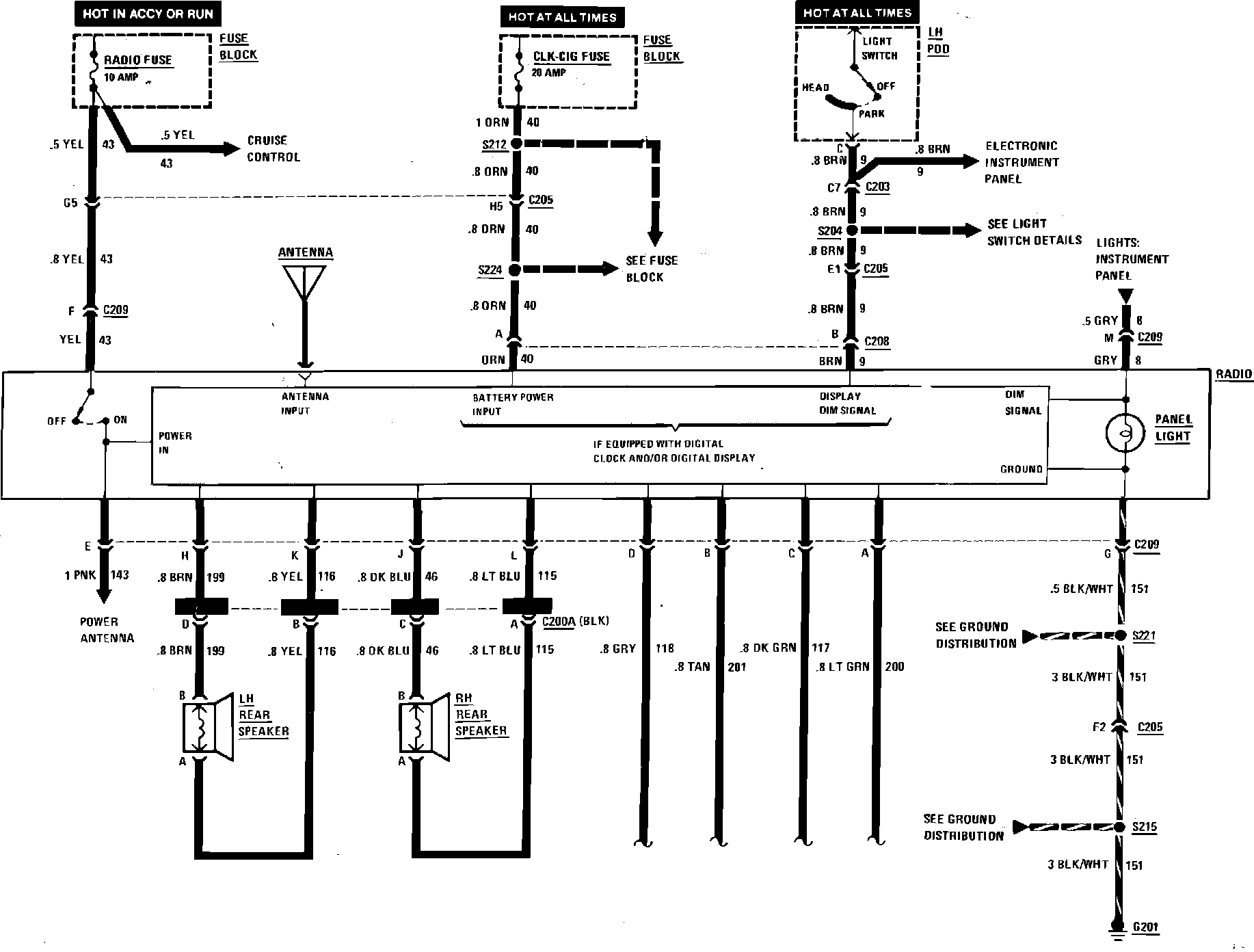

Radio & Clock Wiring Circuit (With AM/FM Stereo & ETR):

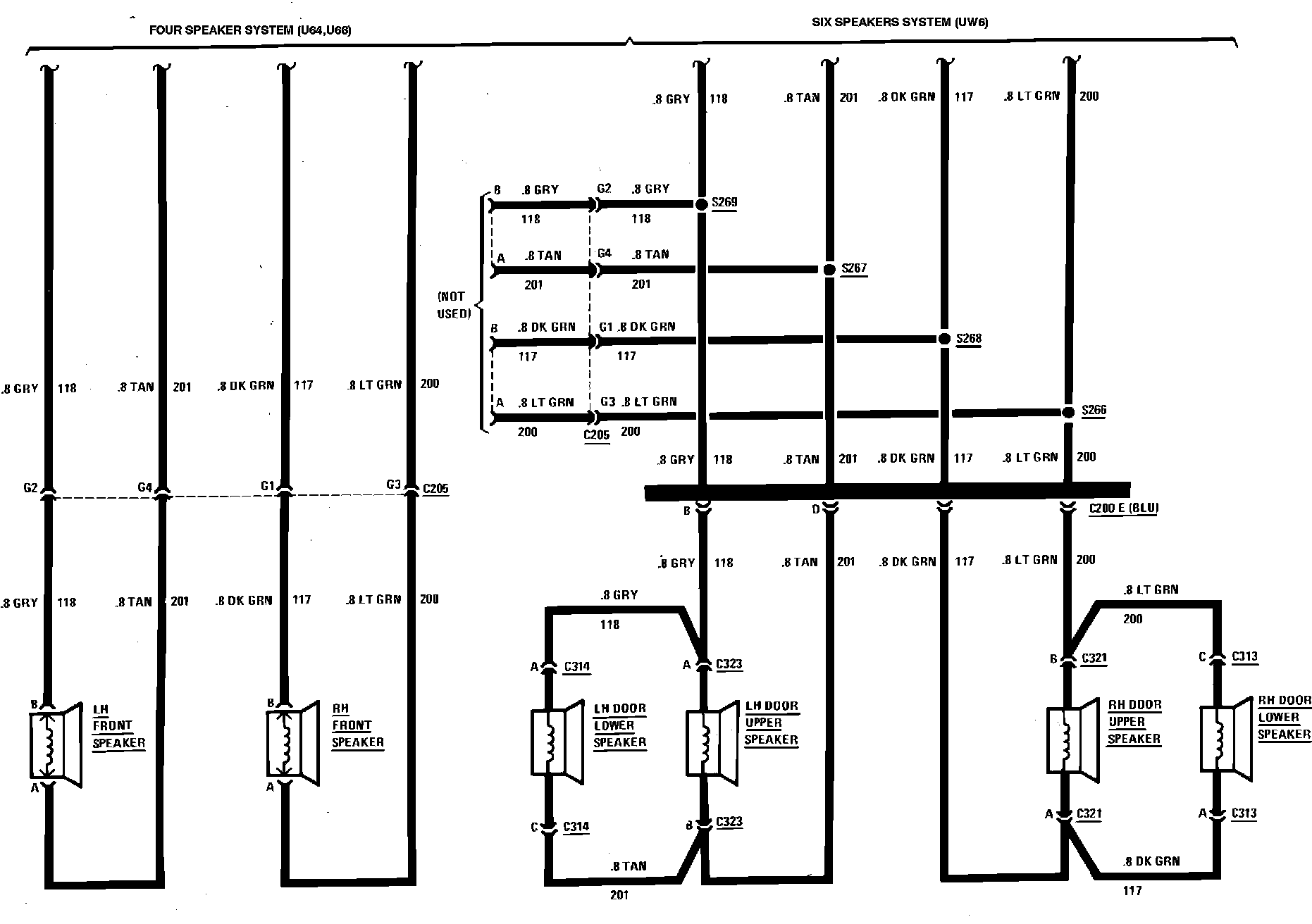

Radio & Clock Wiring Circuit (With AM/FM Stereo & ETR):
