Home >> Buick >> 1985 >> Somerset Regal V6-181 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Instrument Panel Circuit Board >> Typical With Standard Cluster

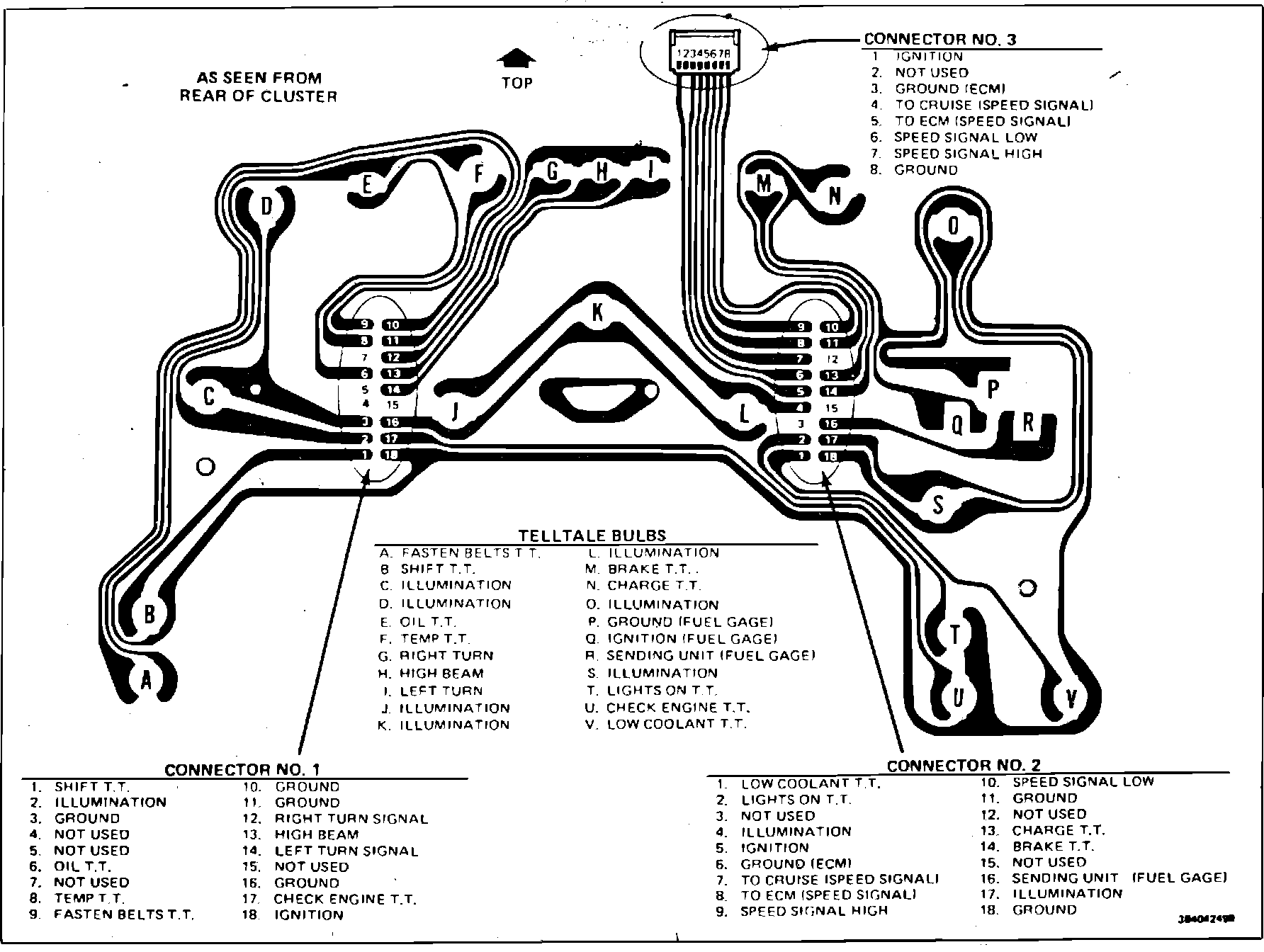

Typical With Standard Cluster

Instrument Panel Printed Circuit (Typical With Digital Cluster):
