Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Panel
>>
Instrument Panel Indicators
Instrument Panel Indicators

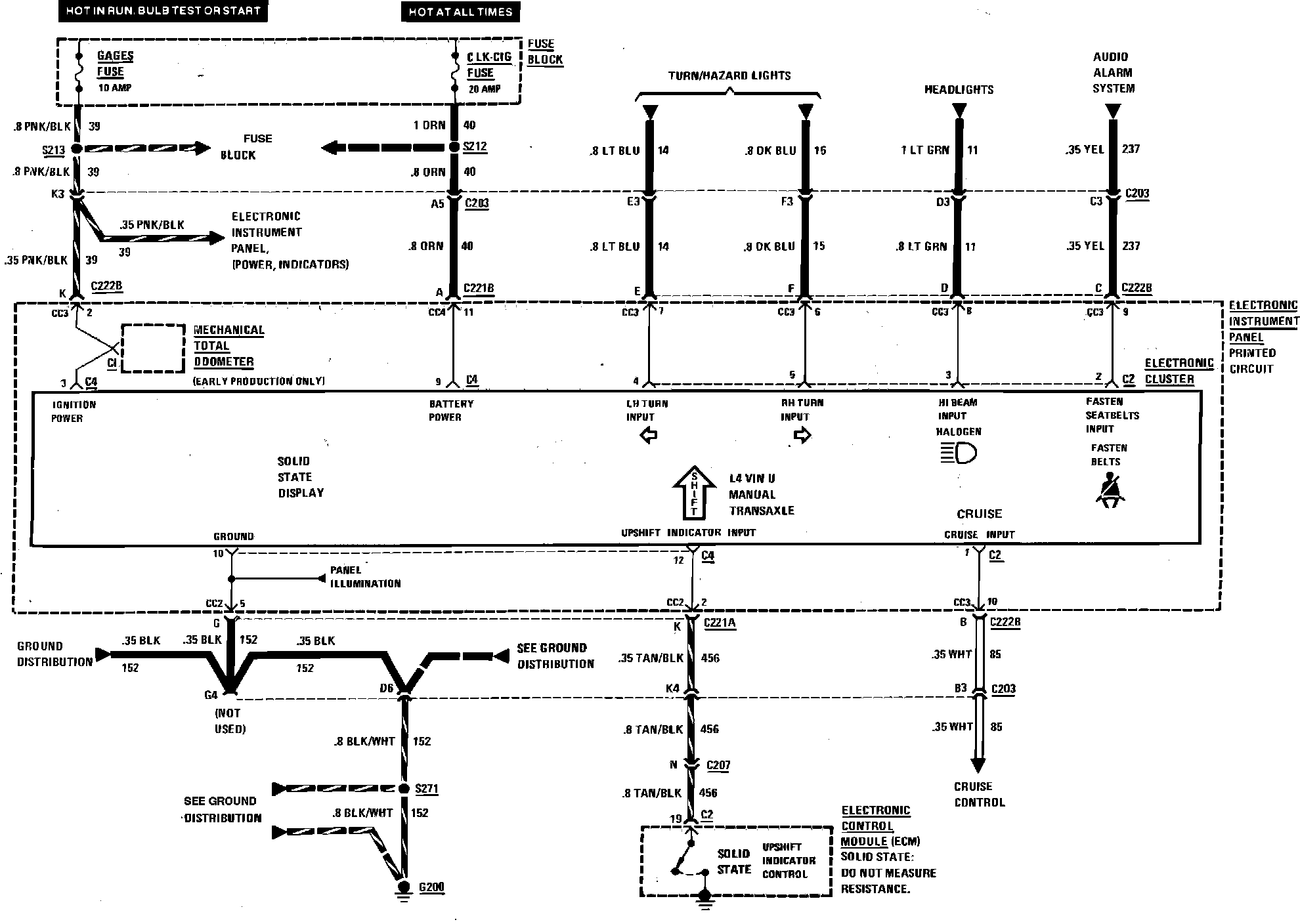

Instrument Panel Wiring Circuit:
Instrument Panel Wiring Circuit:
