Home >> Buick >> 1985 >> Somerset Regal V6-181 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Tail Lamp

Tail Lamp

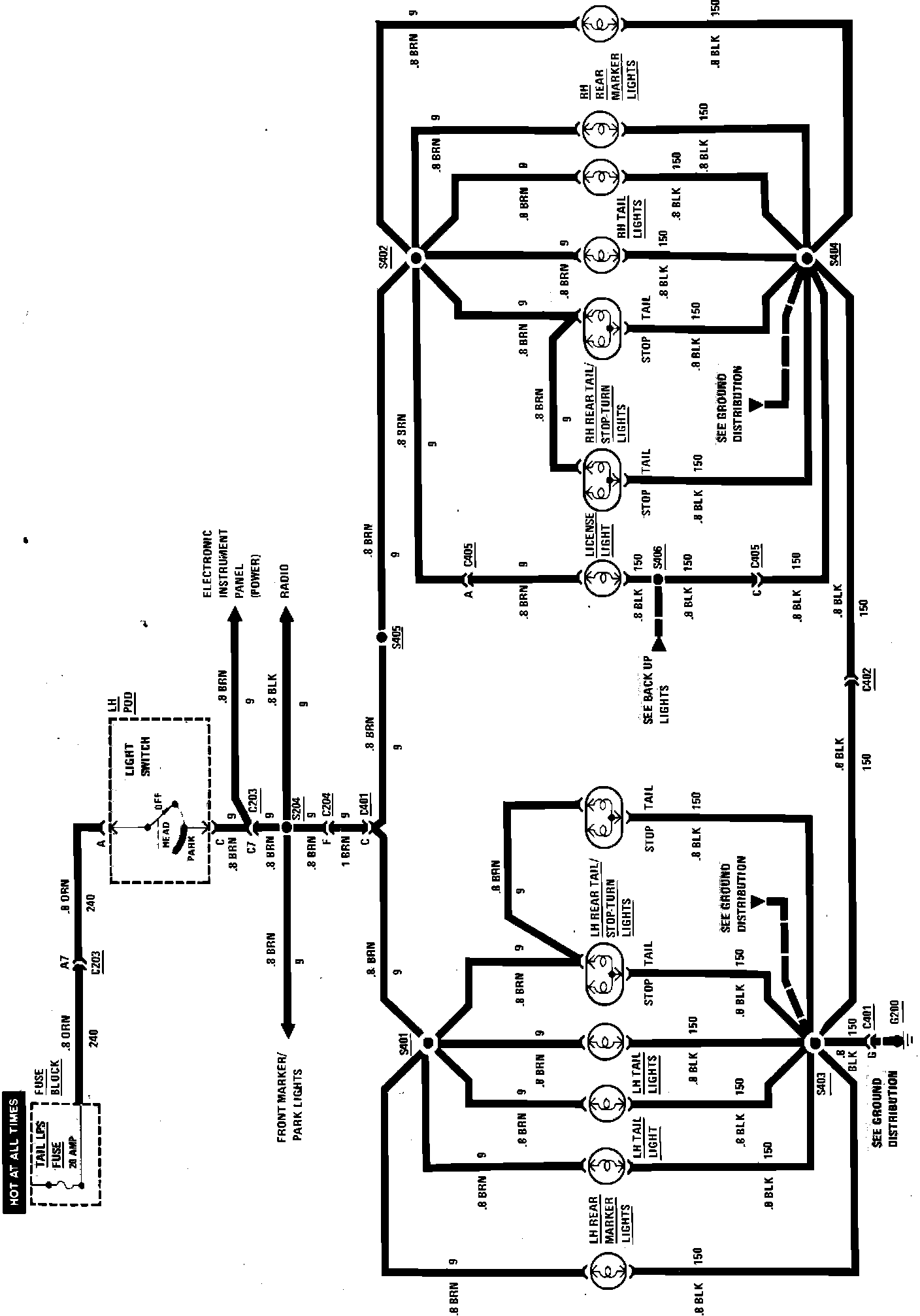

Rear License, Marker & Tail Lamp Wiring Circuit:
