Idle Speed Control & Vehicle Data Sensors

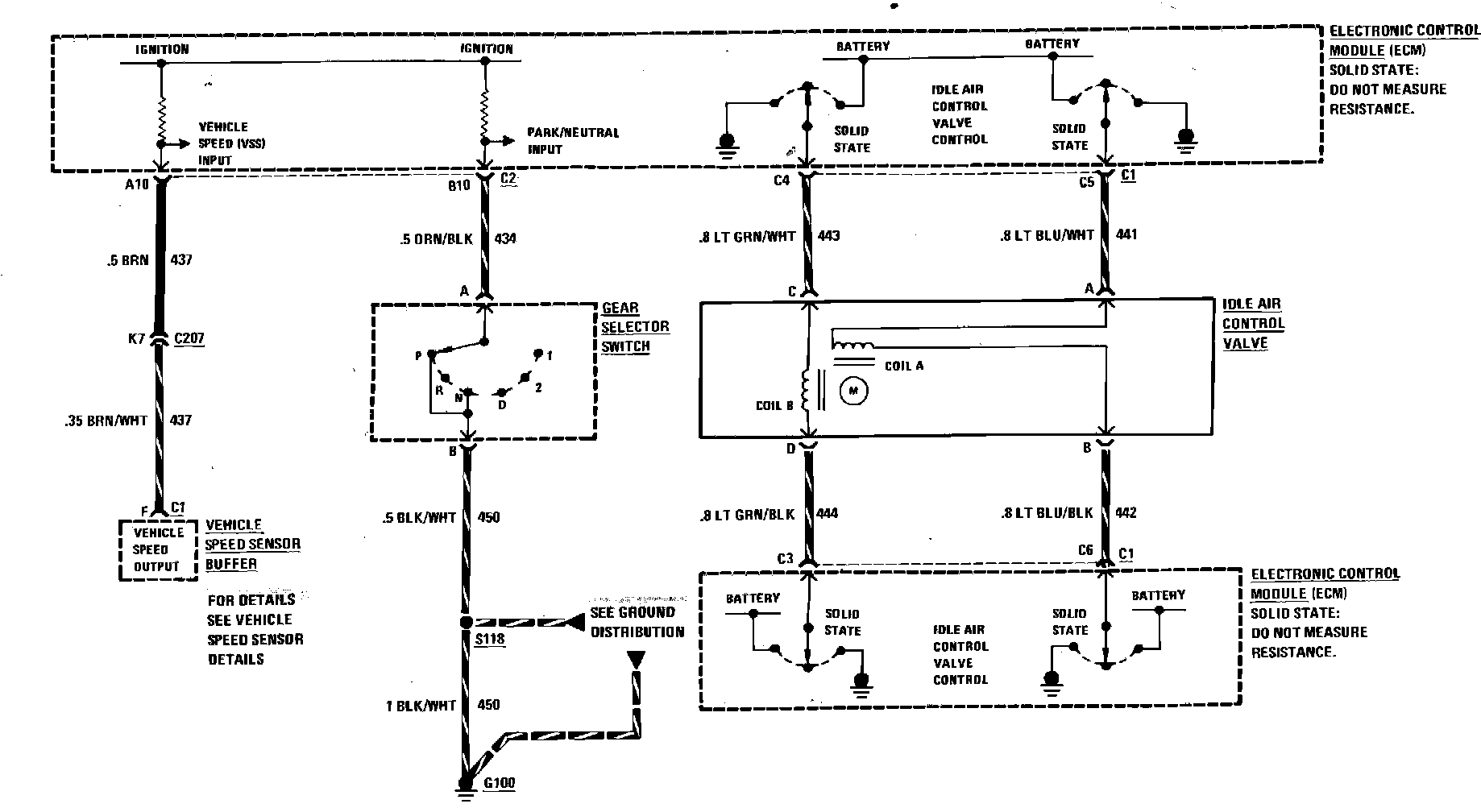

Multiport Fuel Injection (Idle Air Control & Vehicle Data Sensors) Wiring Circuit:
