Grounds, Power & Service Engine Soon Indicator

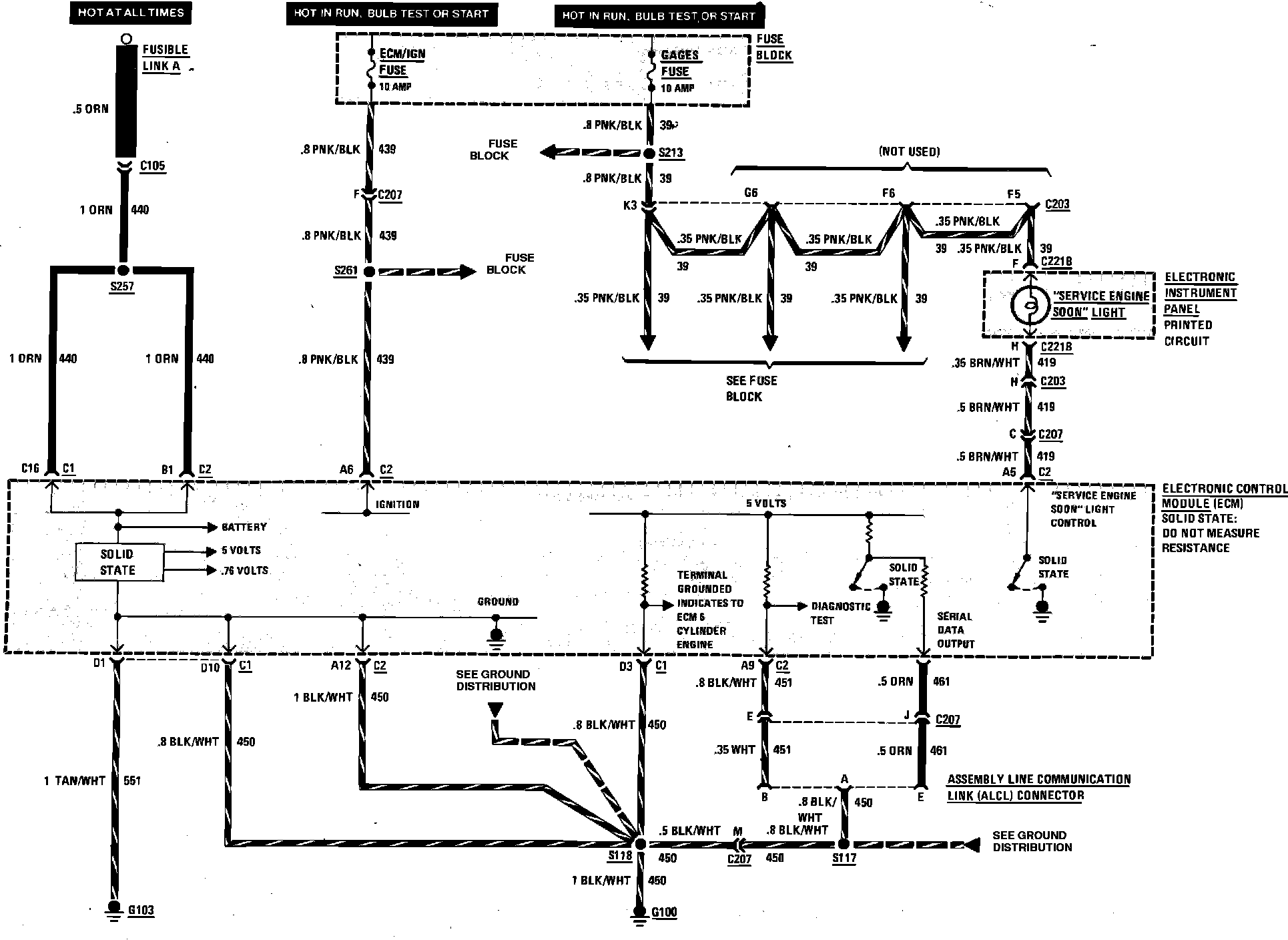

Multiport Fuel Injection (Grounds, Power & Service Engine Soon Indicator) Wiring Circuit:
