Electronic Instrument Cluster Power

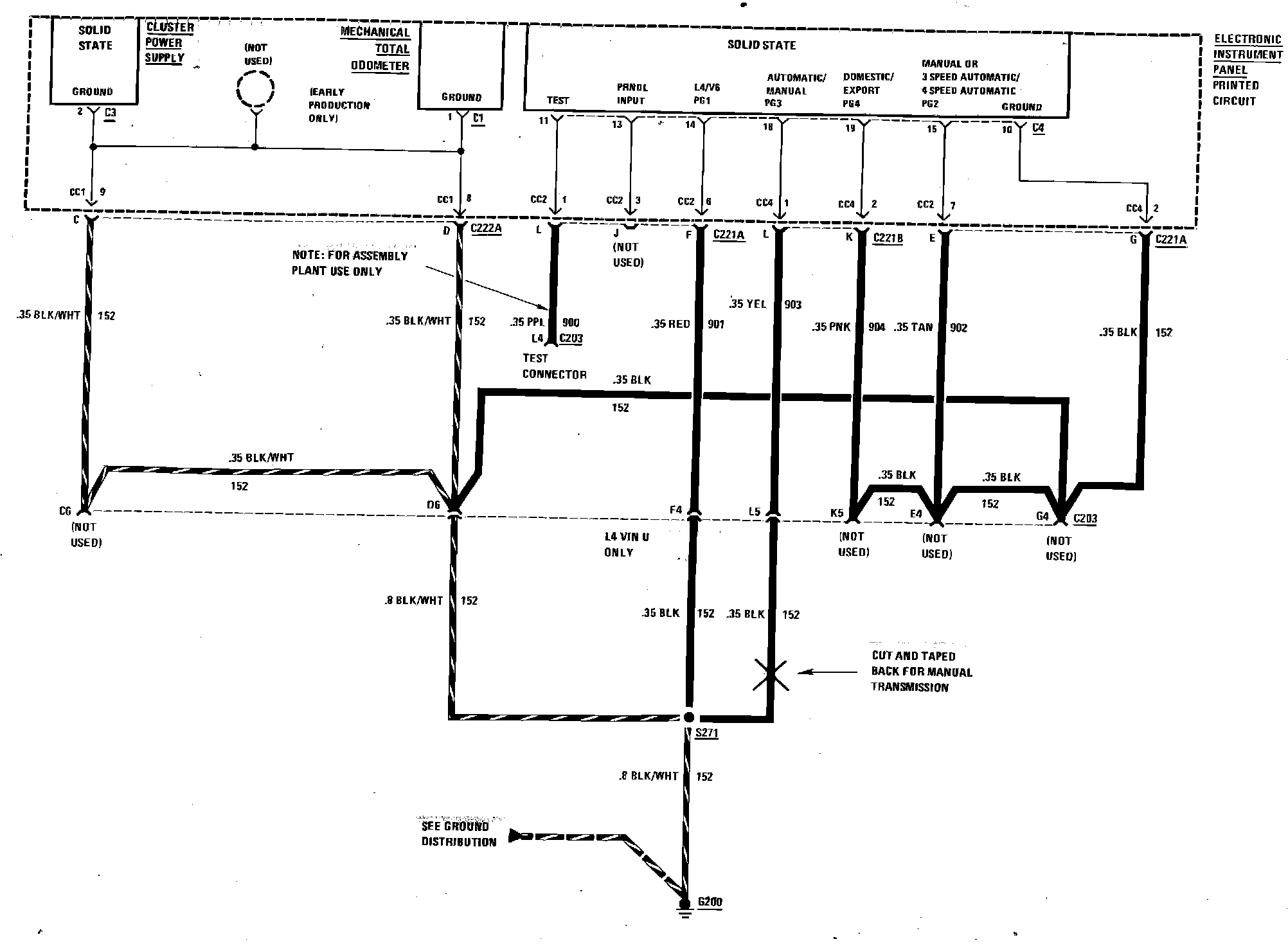

Instrument Panel Wiring Circuit:

Instrument Panel Wiring Circuit:
