Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Somerset Regal V6-181 3.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
System Check Chart - Digital Cluster
System Check Chart - Digital Cluster

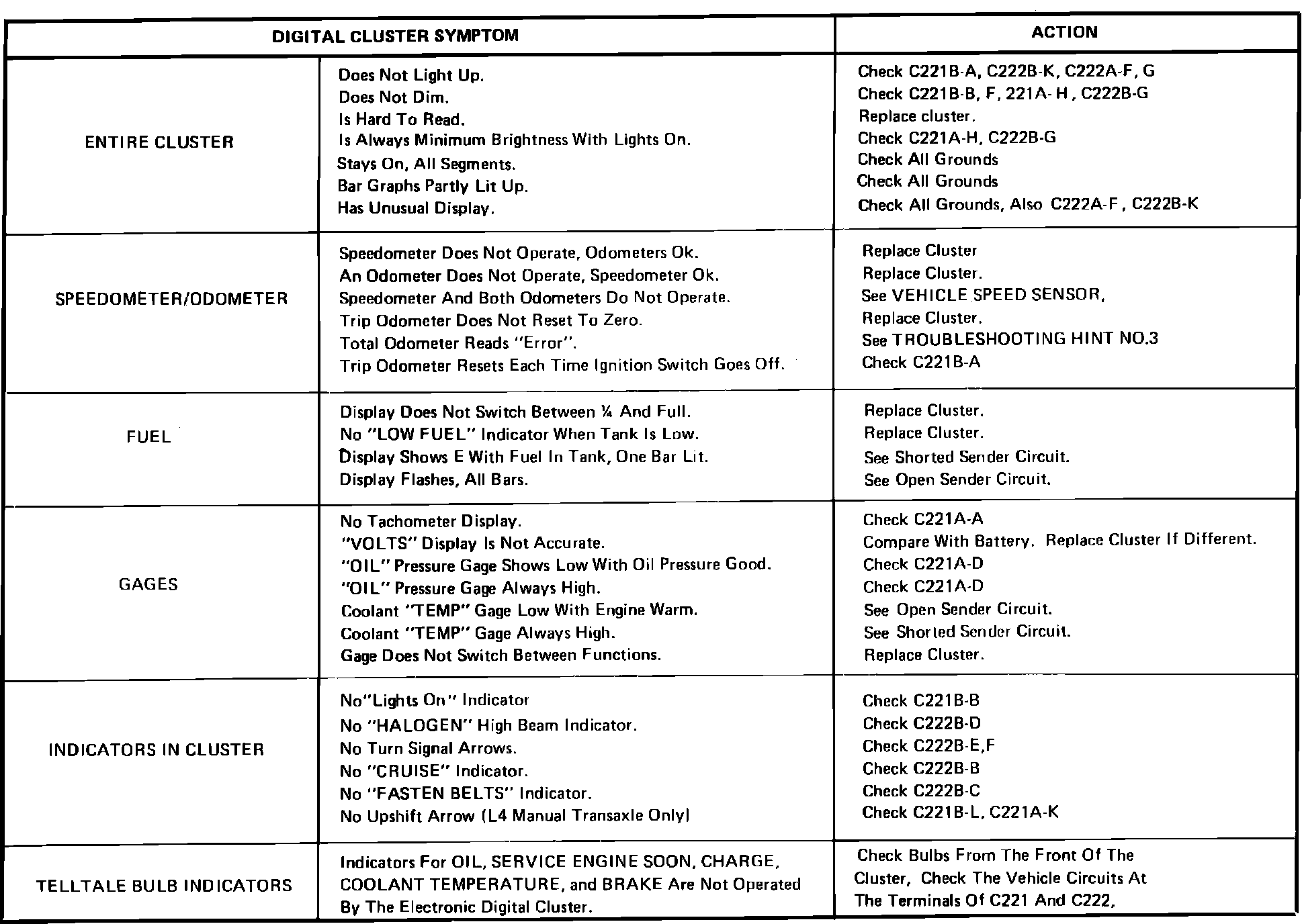

Digital Cluster Symptom Chart:
