Programming and Relearning

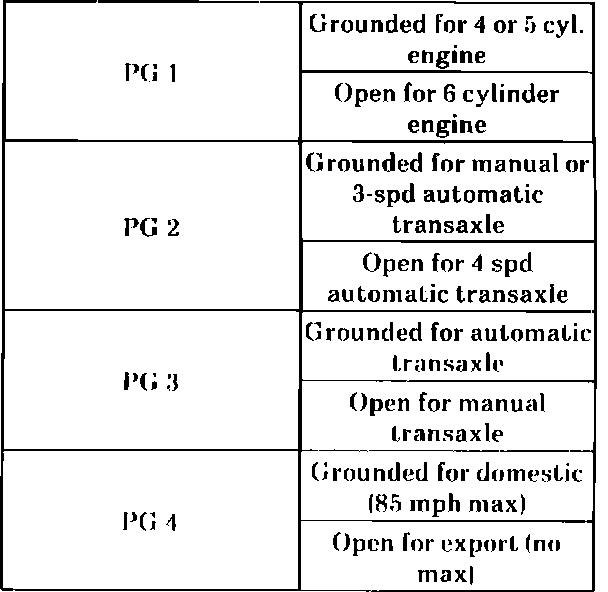

Programed Ground Chart:

The electronic instrument cluster may be programed for different engine options and for different transaxles. The connections to the Programed Ground (PG) terminals accomplish these changes. The tachometer readings and red lines, the maximum speedometer reading, the shift indicator, and the "Unleaded Fuel Only" display are affected by the PG grounds.
