Home >> Buick >> 1985 >> Somerset Regal V6-181 3.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G200 & G201 (Part 2 of 3)

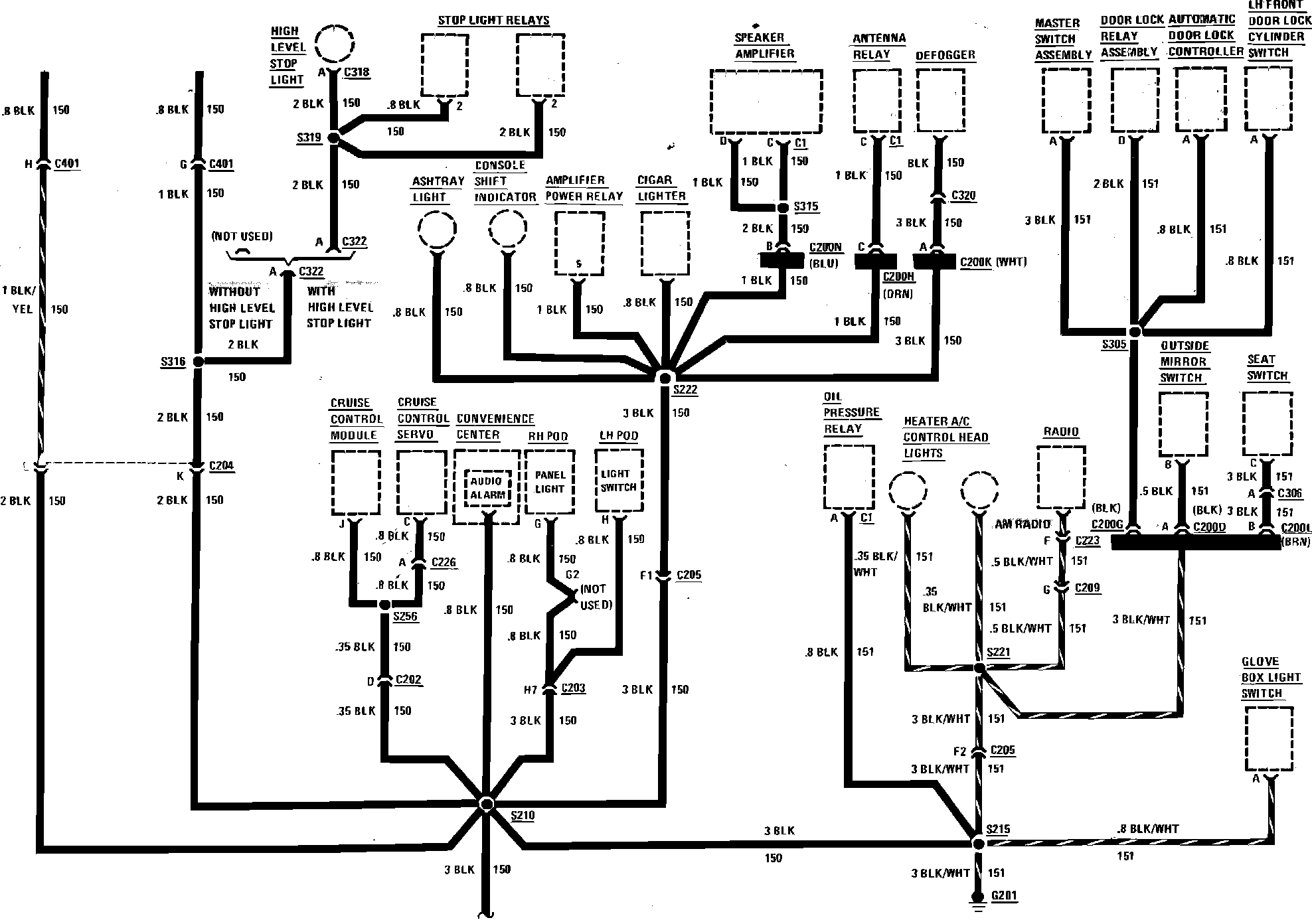

G200 & G201 (Part 2 of 3)

Ground Distribution (G200 & G201):
