Emission Control, Spark Control & Torque Converter Clutch

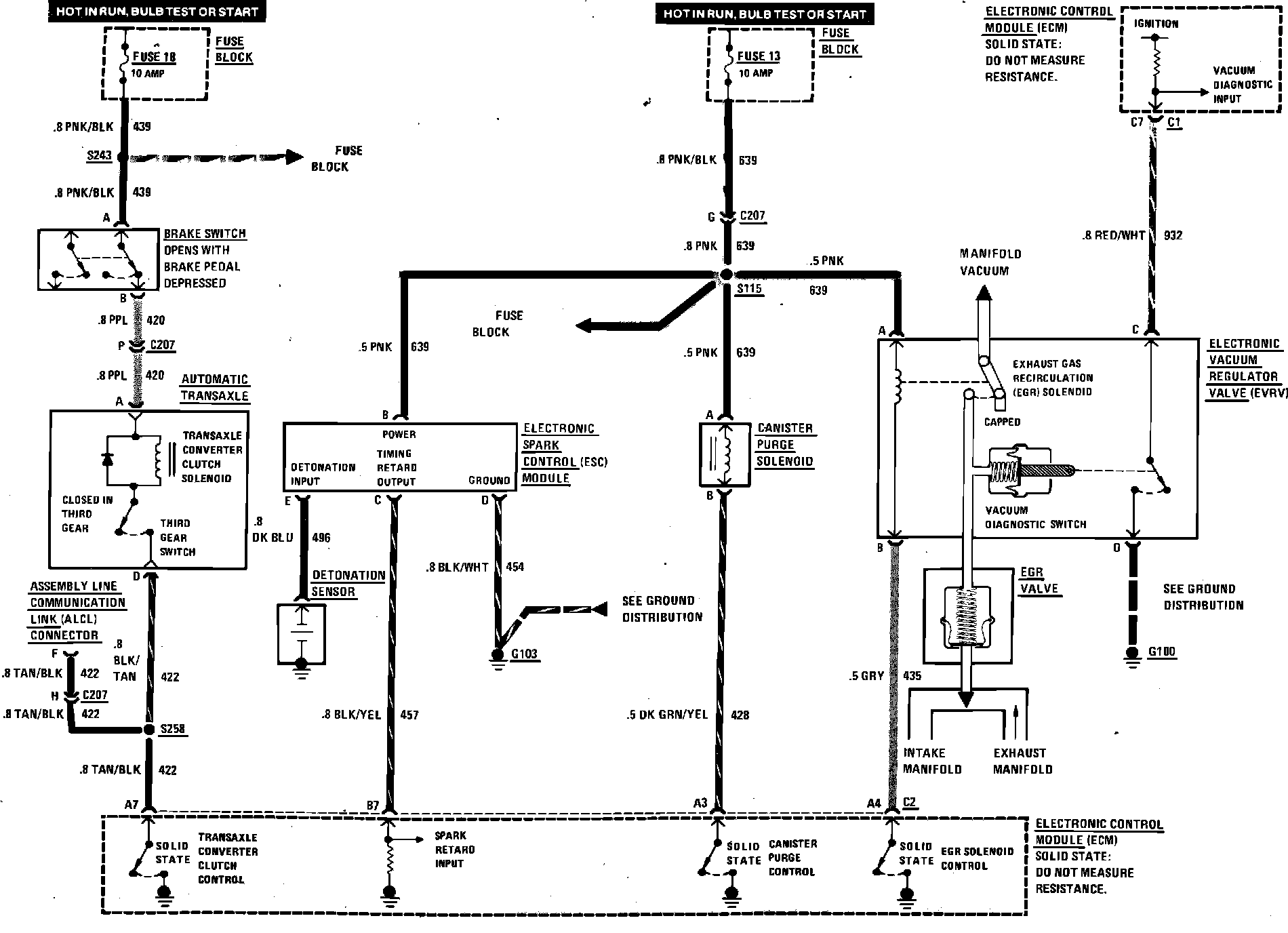

Multiport Fuel Injection (Emission Control, Spark Control & Torque Converter Clutch) Wiring Circuit:
