Engine Data Sensors & Vehicle Data Sensors

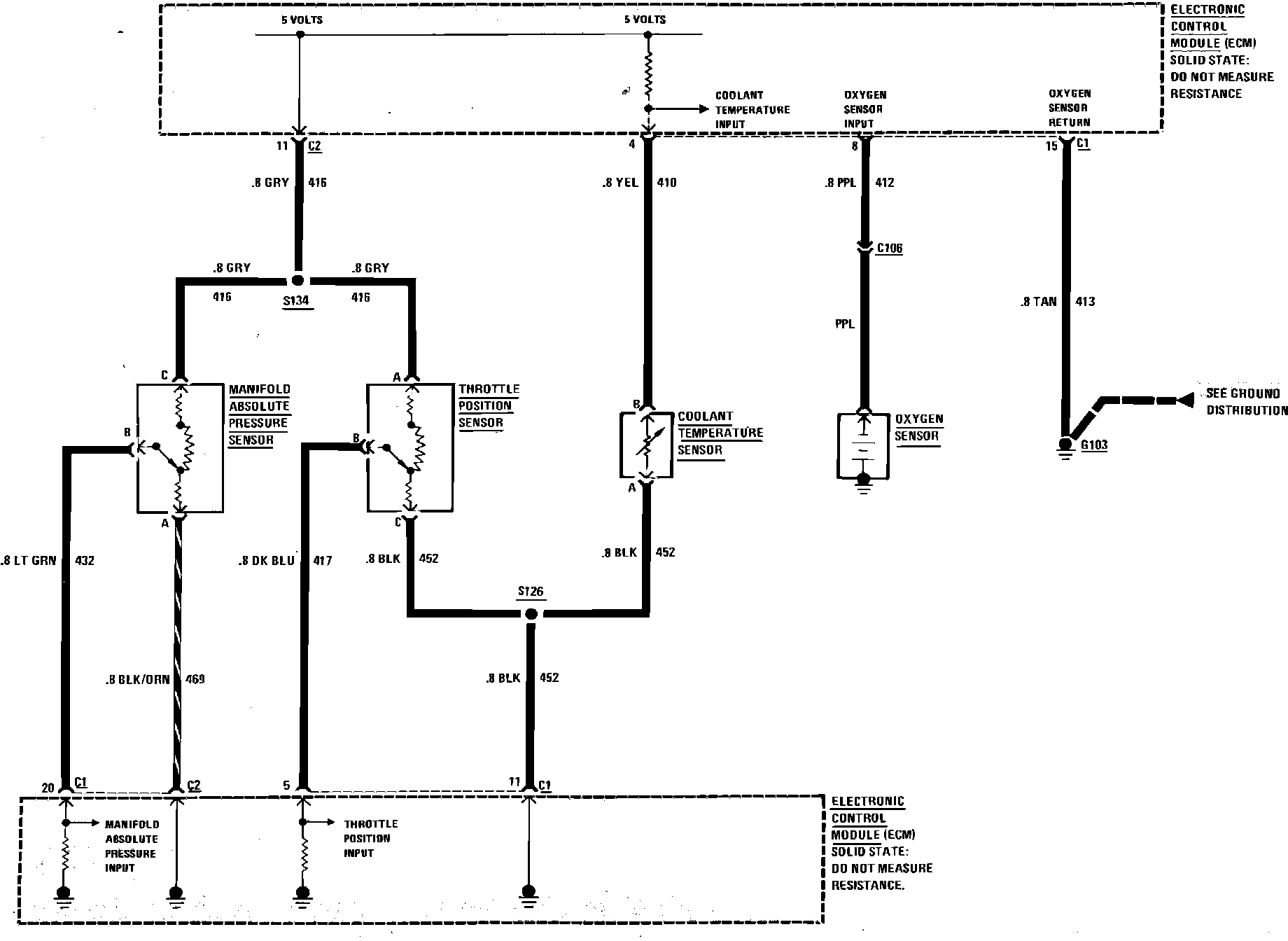

Electronic Fuel Injection:

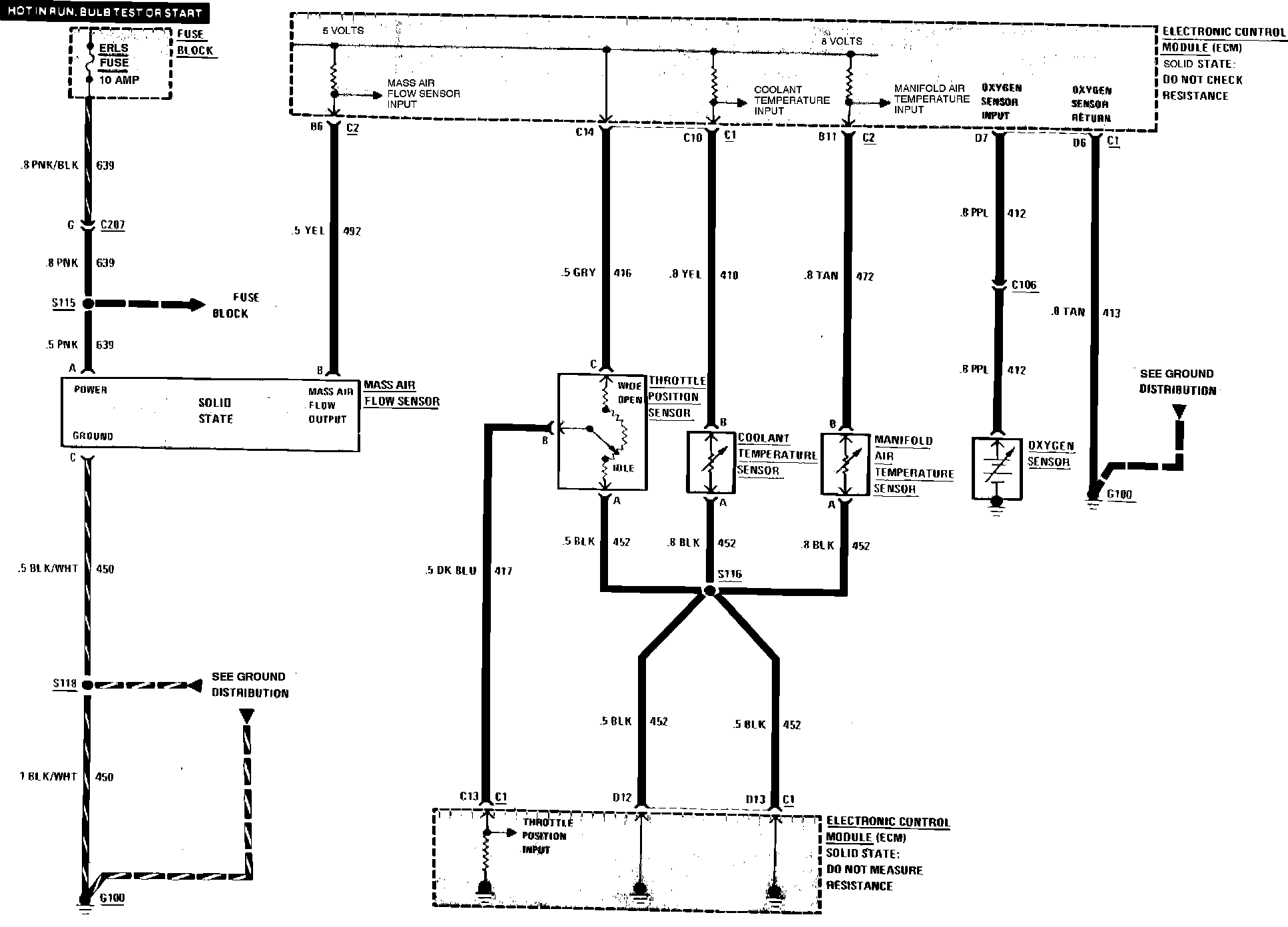

Multiport Fuel Injection (Engine Data Sensors) Wiring Circuit:
