Fuel Control & Fuel Injectors
Fuel Control & Fuel Injectors

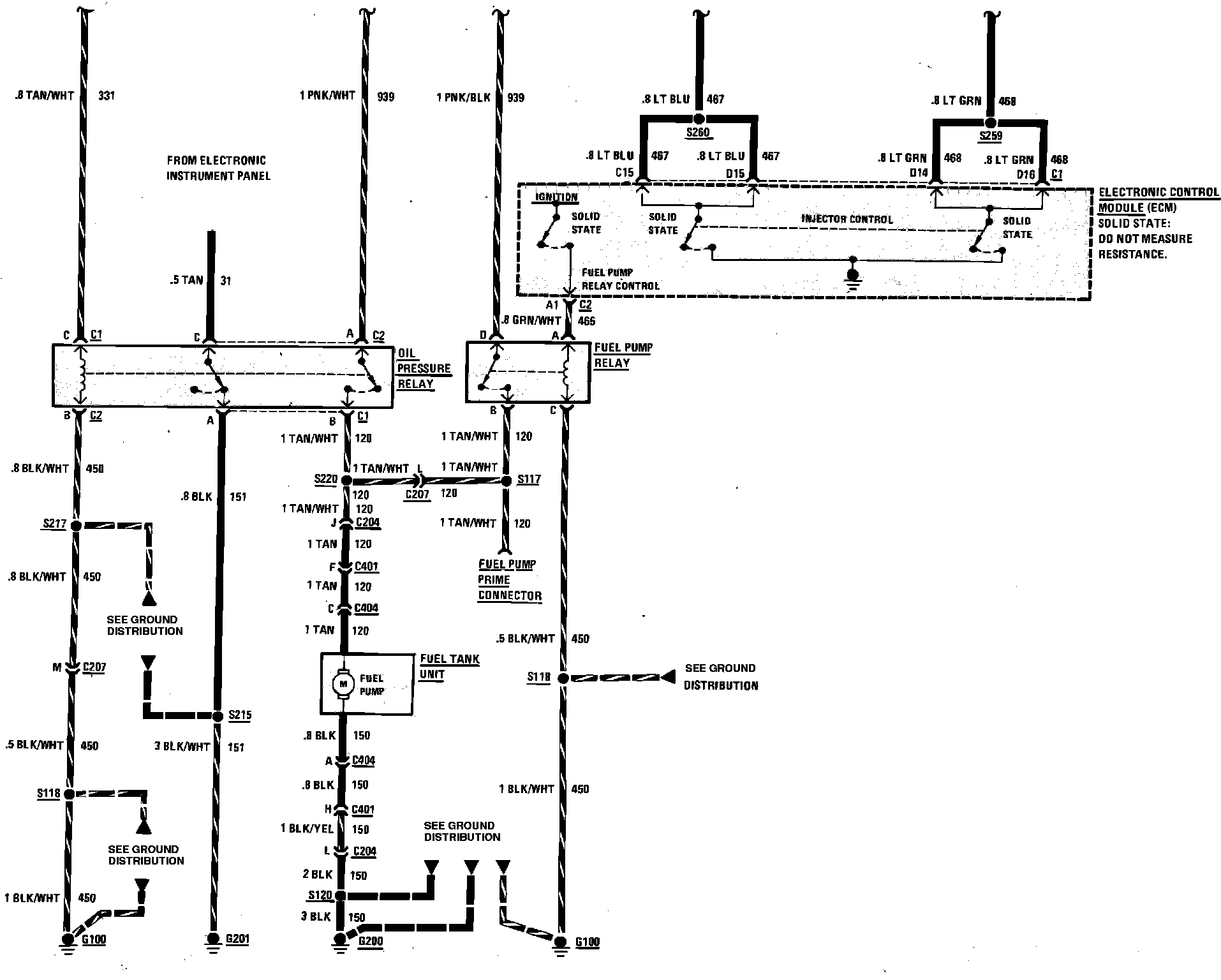

Multiport Fuel Injection (Fuel Control & Injectors) Wiring Circuit:

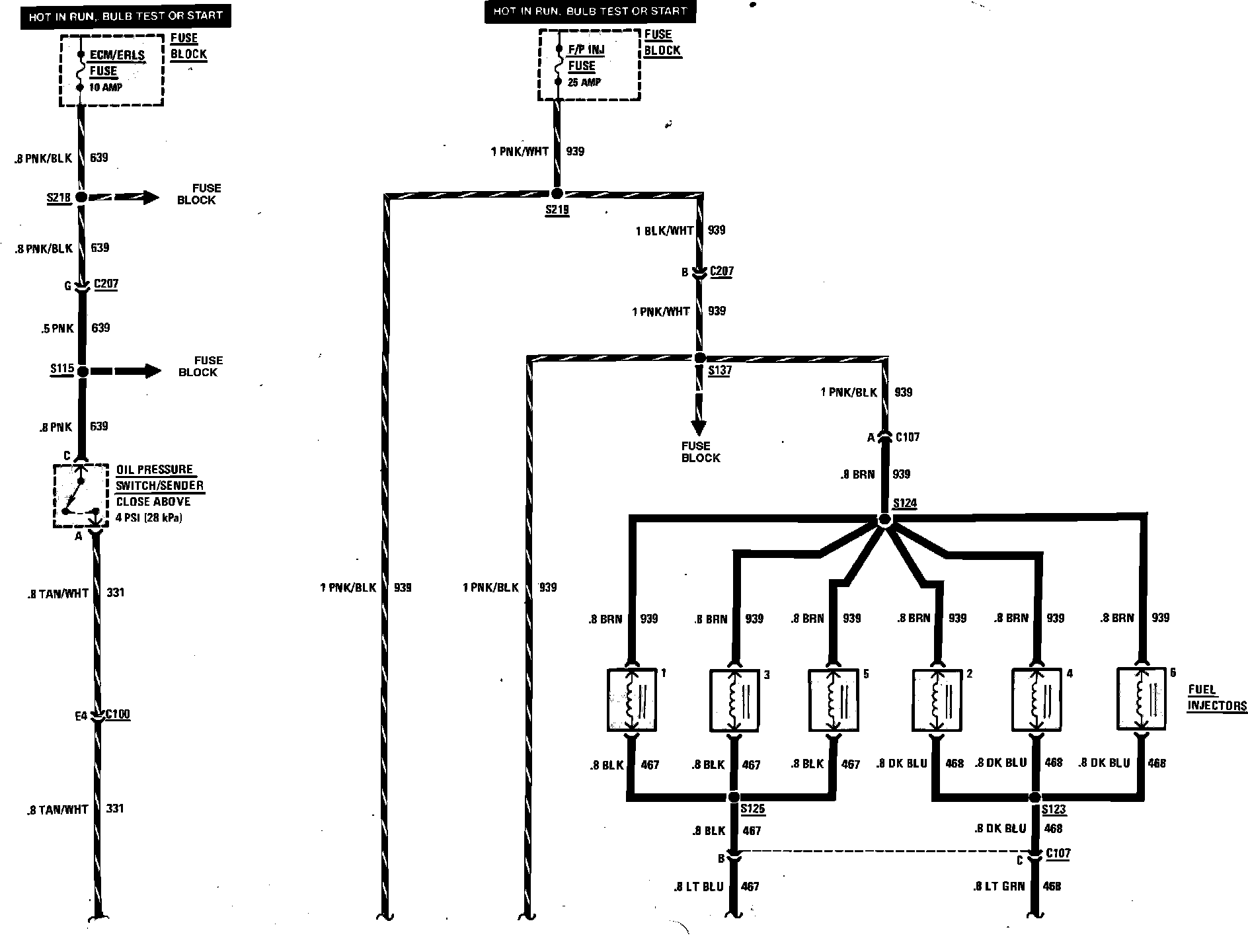

Multiport Fuel Injection (Fuel Control & Injectors) Wiring Circuit:
