Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Somerset Regal V6-181 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

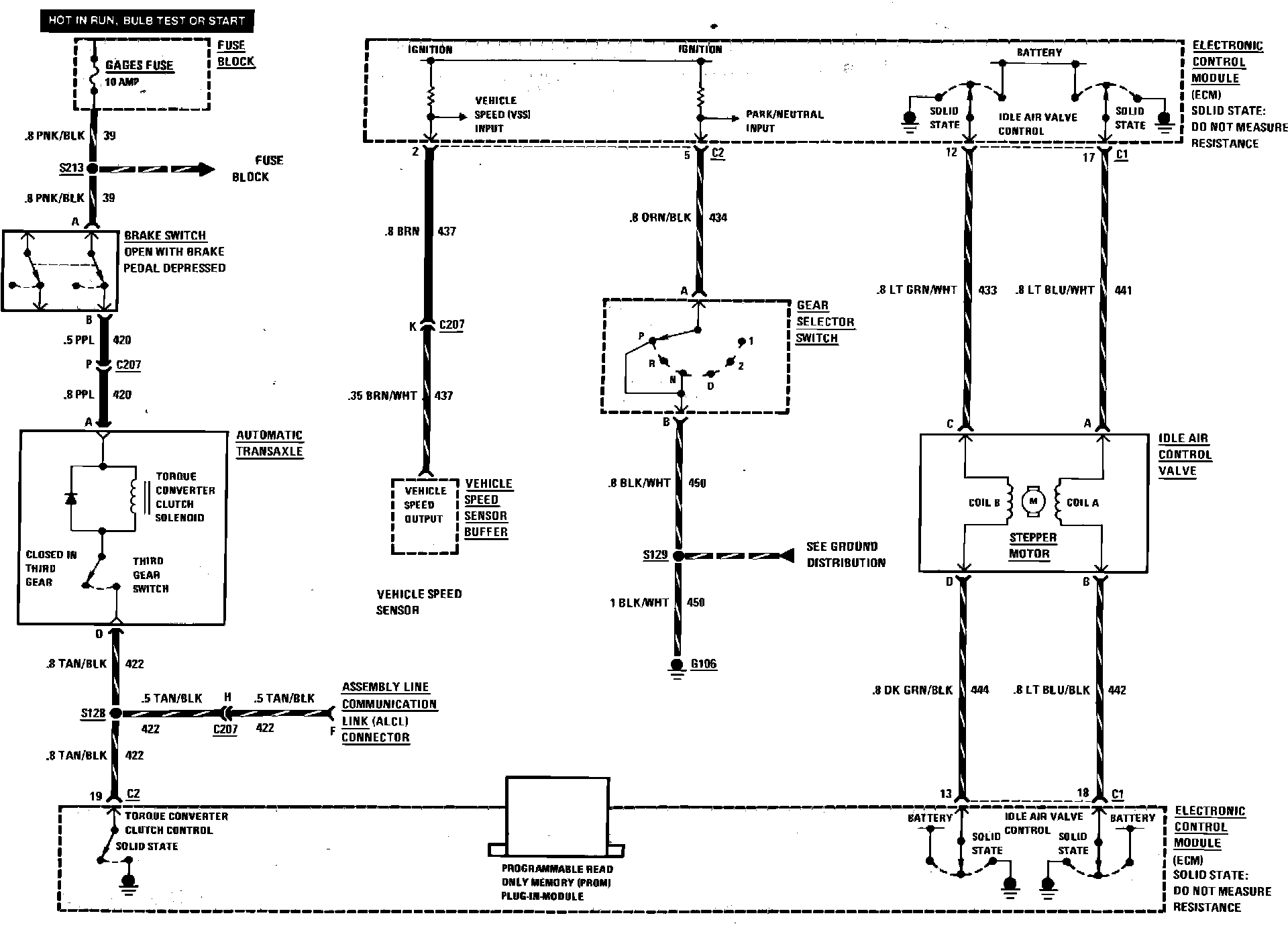

Idle Air Control, Torque Converter Clutch & Vehicle Sensors
Idle Air Control, Torque Converter Clutch & Vehicle Sensors
Electronic Fuel Injection:
