Multiport Fuel Injection
Multiport Fuel Injection

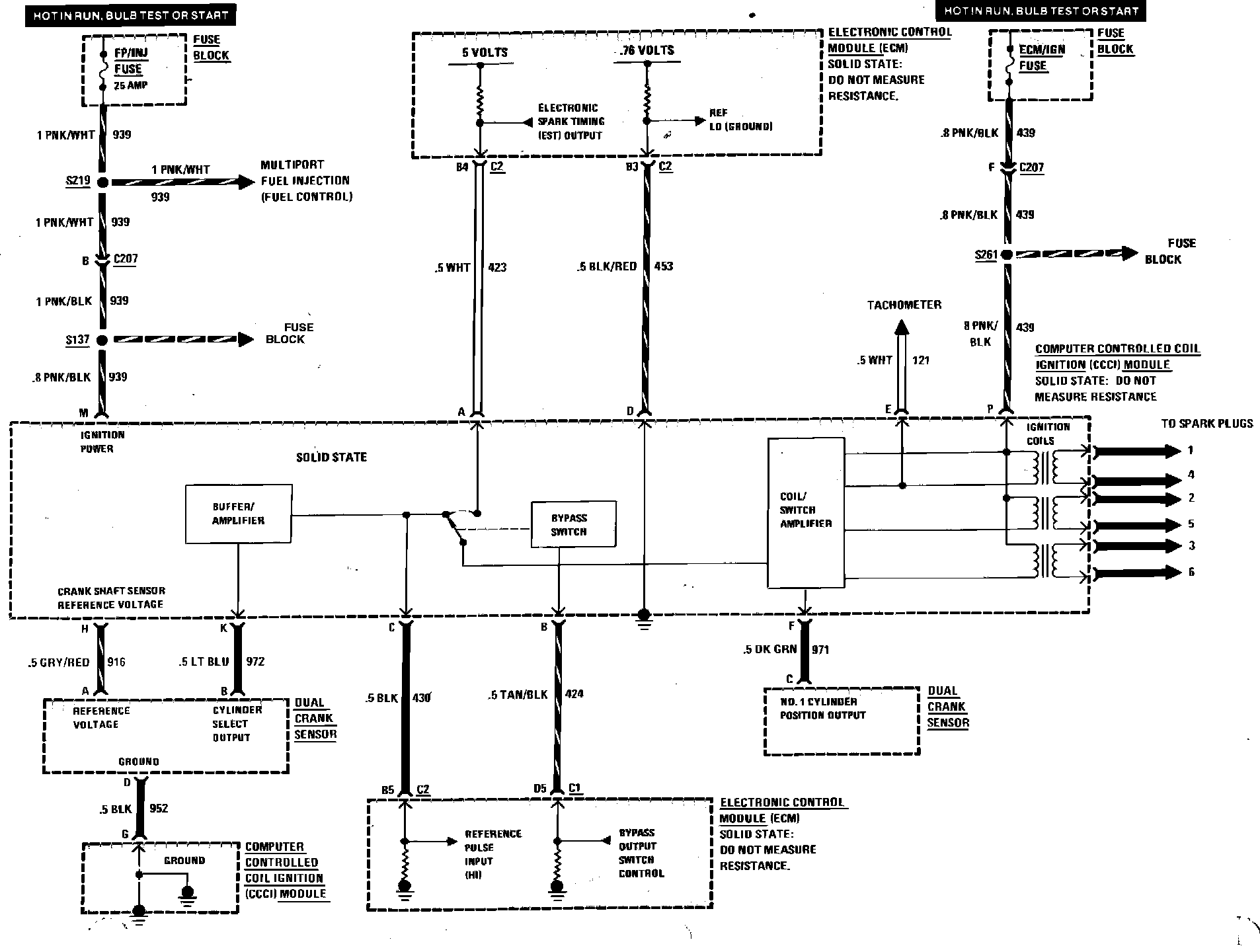

Multiport Fuel Injection (Ignition) Wiring Circuit:
