P/S - Fluid Seepage From Reservoir Fill Cap

Bulletin 85-3-15

Date Mar. '85

Ref. No.. 85-172-3
SUBJECT: POWER STEERING FLUID SEEPAGE FROM RESERVOIR FILL CAP

MODELS AFFECTED: 1985 SOMERSET REGAL

STEERING FLUID RESERVOIR ASSEMBLY:

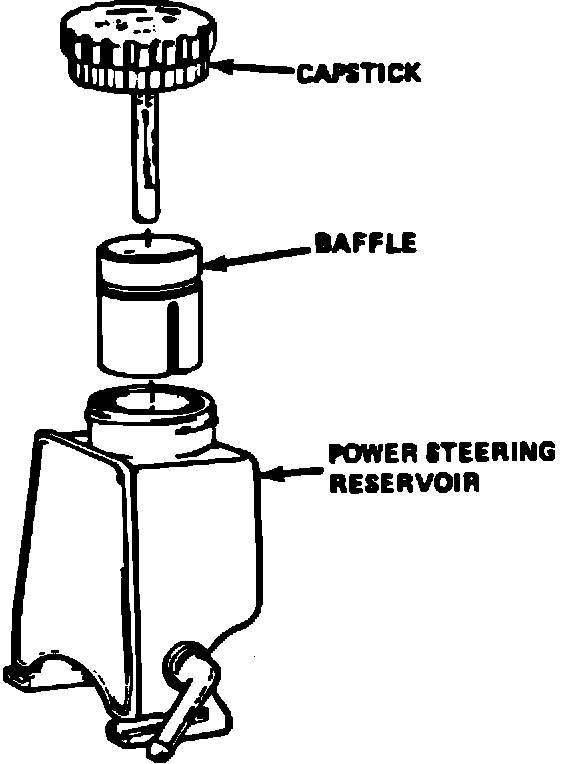

Some 1985 Somerset Regals built prior to November, 1984 may exhibit power steering fluid seepage from the reservoir fill cap area. This condition may be repaired by replacing the capstick with a new capstick and baffle. Place the baffle inside the filler neck and install new capstick as shown in Figure.
New capstick and baffle package part numbers are:

V-6 Engine (VIN Code L) - 7849388
4-Cyl. Engine (VIN Code U) - 7849387
