A/T - Transmission Converter (Flexplate) Cover
Bulletin: 85-7-3ADate: Mar 1985
Ref.No.: 85-067A-3
SUBJECT: TRANSMISSION CONVERTER COVER
MODELS AFFECTED: 1985 SOMERSET REGALS WITH 3.0L (VIN CODE L) ENGINES
Flexplate:
NOTE: This bulletin supercedes Bulletin 85-7-3. Please discard previous bulletin and replace it with this one which provides updated information.

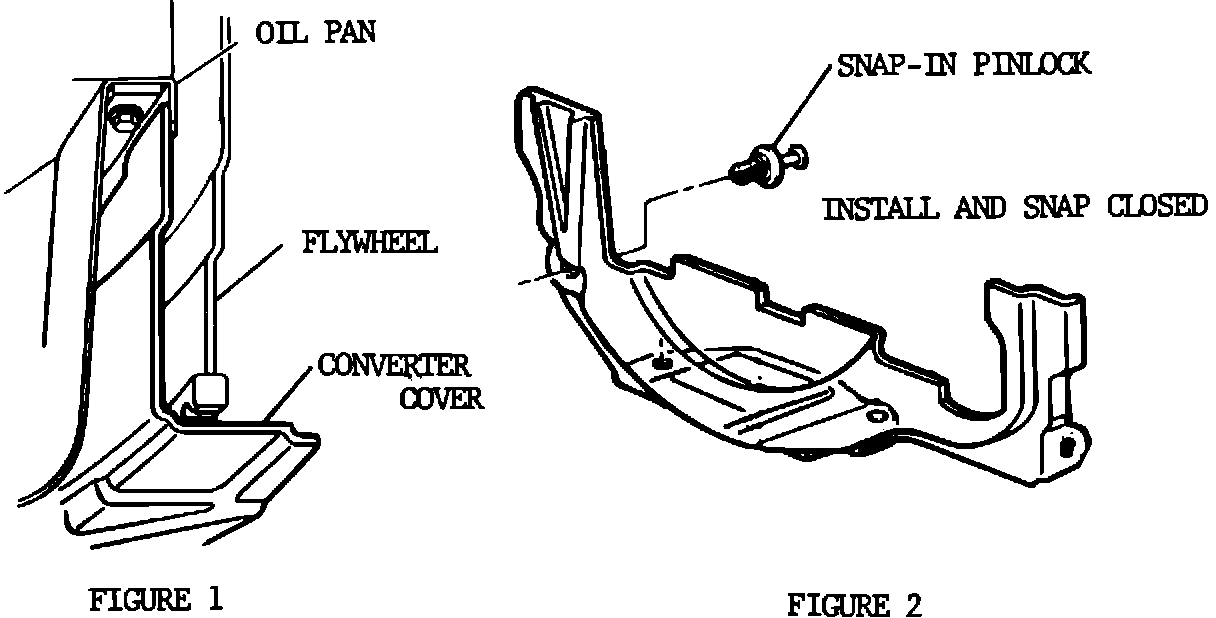

When replacing the transmission converter (flexplate) cover on the above vehicles care should be taken to install the tabs on the cover on the engine side of the engine oil pan flange to prevent possible interference with the flexplate. See Figure 1..
As a further aid in preventing interference in this area a snap-in pin lock retainer part number 5973400 is being installed in the cover in production. It is suggested that this pin be installed in the existing opening of any cover, not so equipped, prior to reinstalling it. See Figure 2.
