C301 (2 Door)
C301 (2 Door)

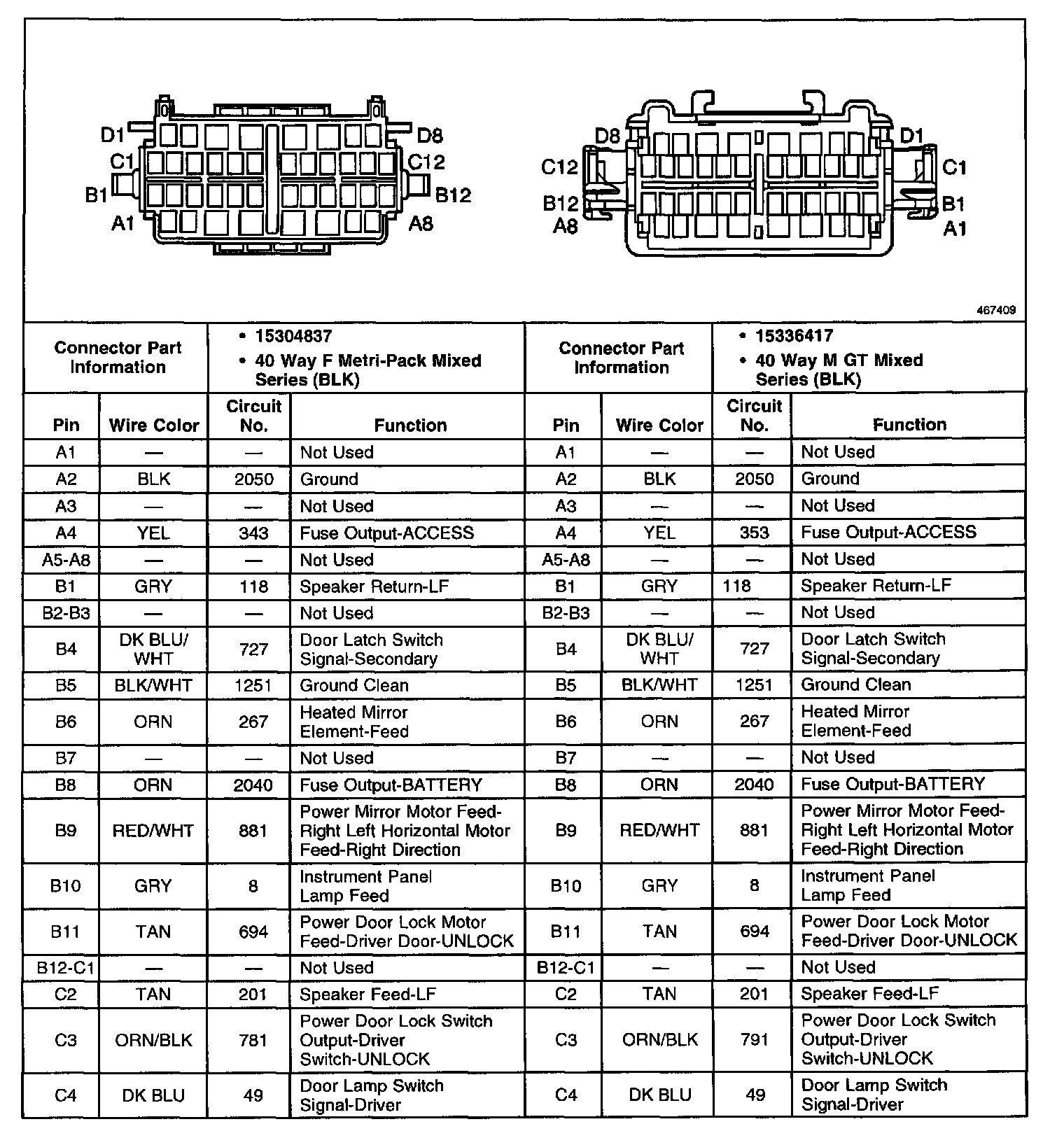

Inline Connector C301 (2 Door) (Part 1 Of 2):

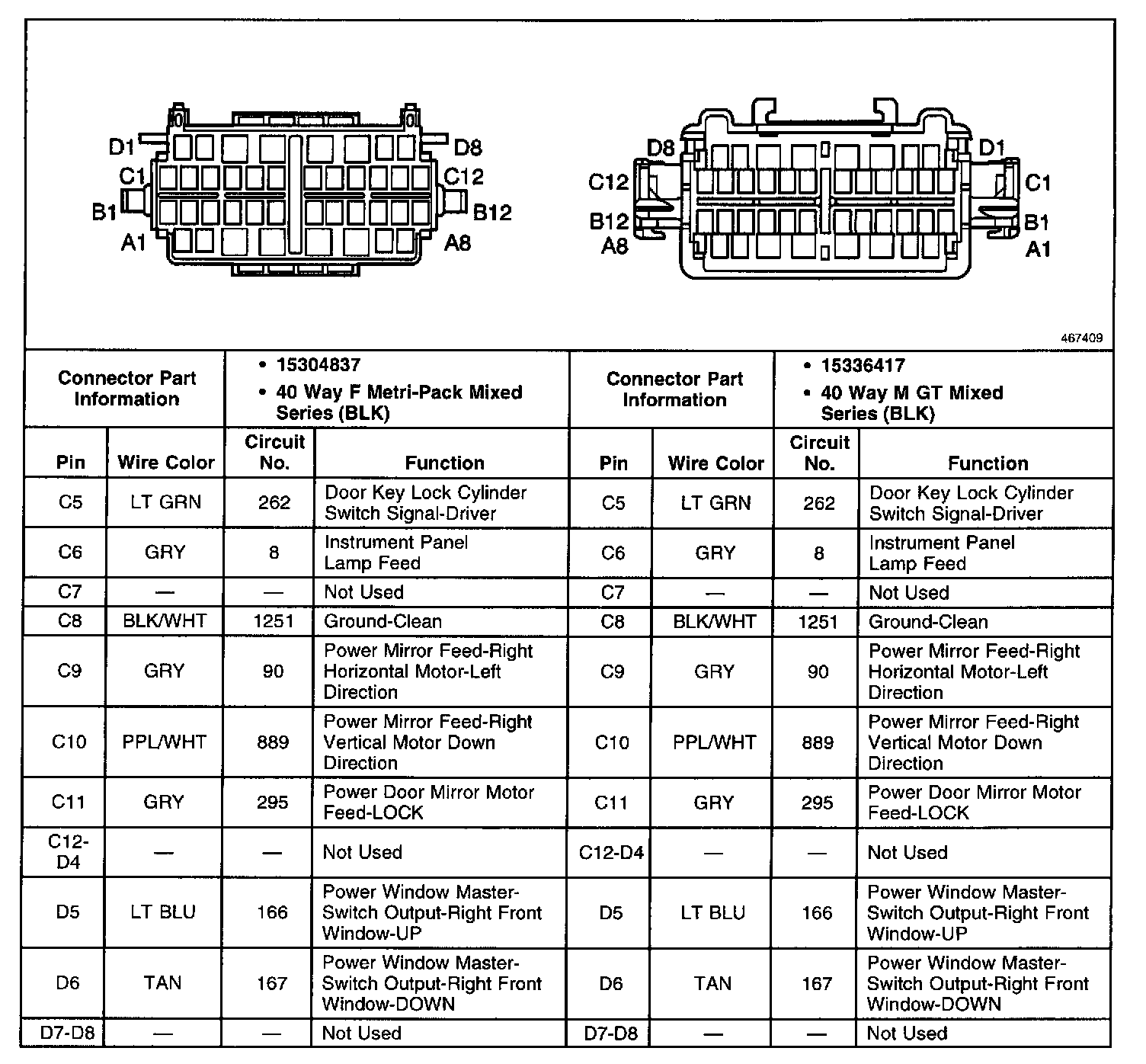

Inline Connector C301 (2 Door) (Part 2 Of 2):
