Air Door Actuator / Motor, HVAC
>>
Air Temperature Actuator
Air Temperature Actuator

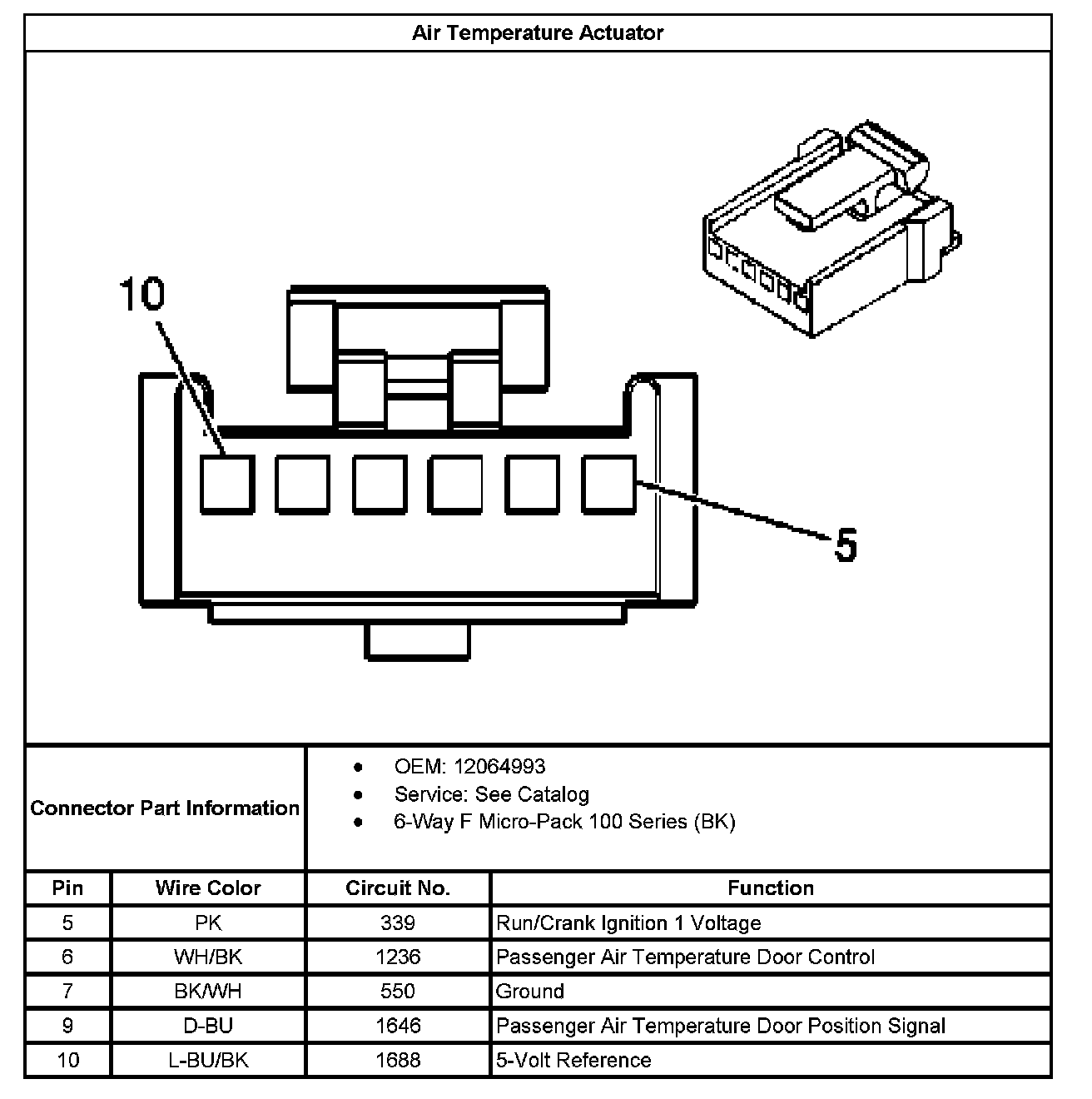

Air Temperature Actuator:
