Supercharger
>>
Air Bypass Valve, Supercharger
Air Bypass Valve, Supercharger

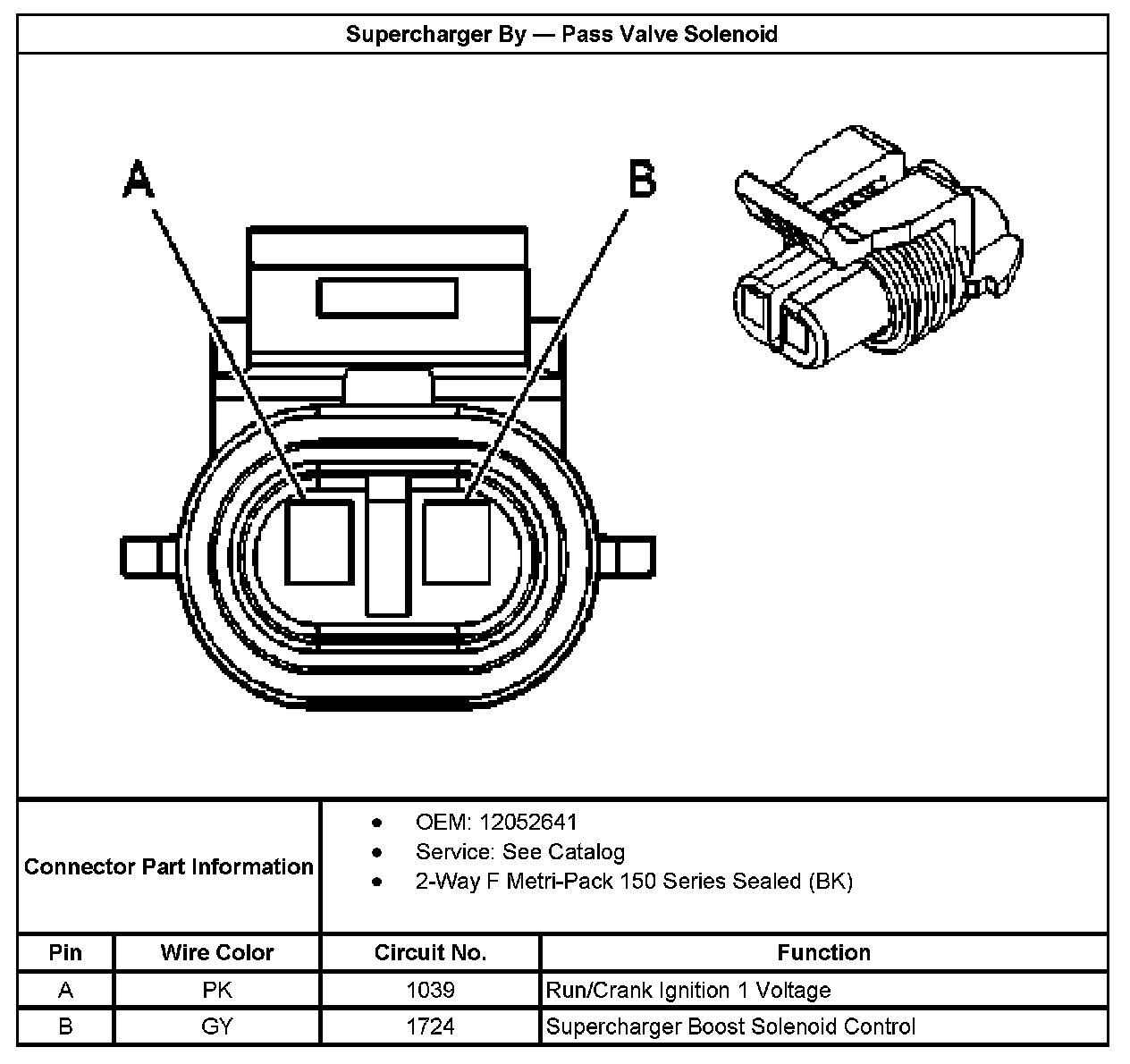

Supercharger By - Pass Valve Solenoid:
