Radio Antenna Module Replacement (Hatchback)

Radio Antenna Module Replacement (Hatchback)

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.
2. Remove the interior courtesy lamp. Refer to Interior Courtesy Lamp Replacement (Interior Courtesy Lamp Replacement).
3. Remove the screw from the vehicle inside.

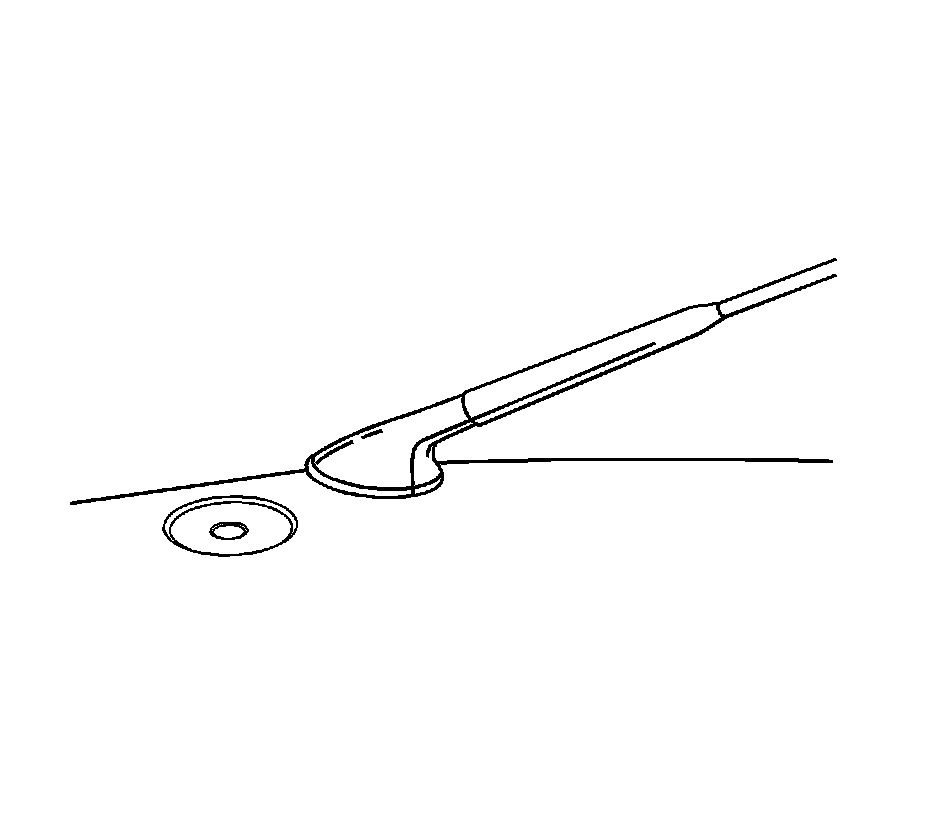

4. Remove the roof antenna.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the roof antenna with the screw.

Tighten the roof antenna retaining screws to 3 N.m (27 lb in).

2. Install the interior courtesy lamp. Refer to Interior Courtesy Lamp Replacement (Interior Courtesy Lamp Replacement).
3. Connect the negative battery cable.
