Radio Antenna Module Replacement (Notchback)

Radio Antenna Module Replacement (Notchback)

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.

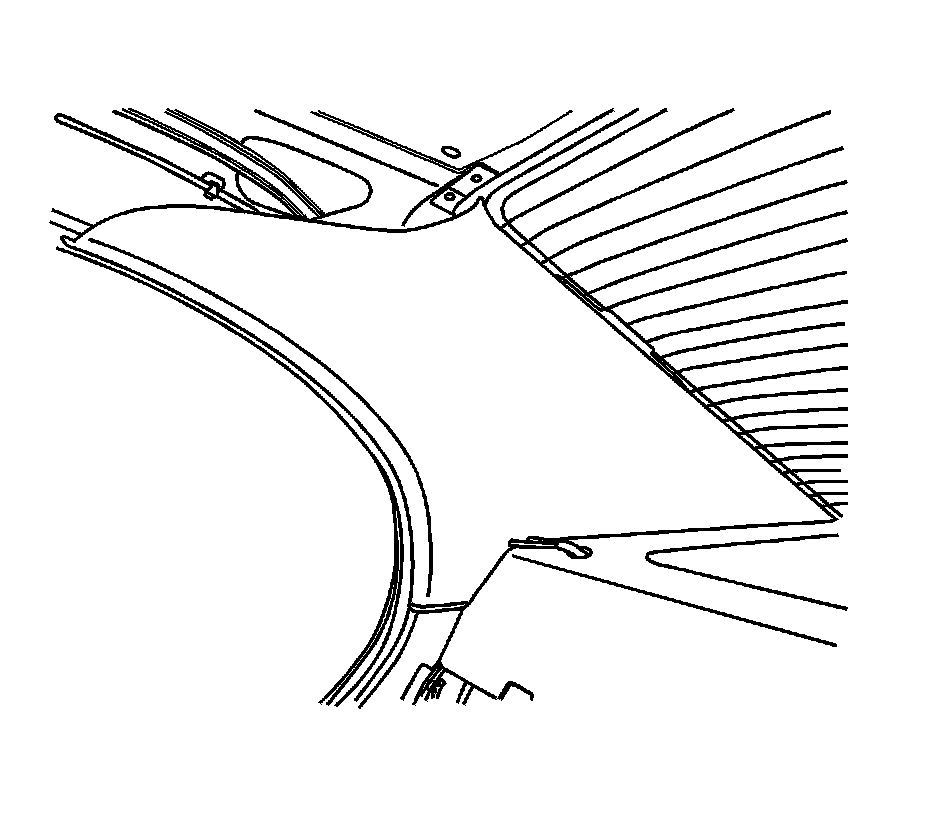

2. Remove the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Notchback) (Service and Repair)Rear Quarter Upper Trim Panel Replacement (Hatchback) (Service and Repair).




3. Disconnect the negative battery cable.

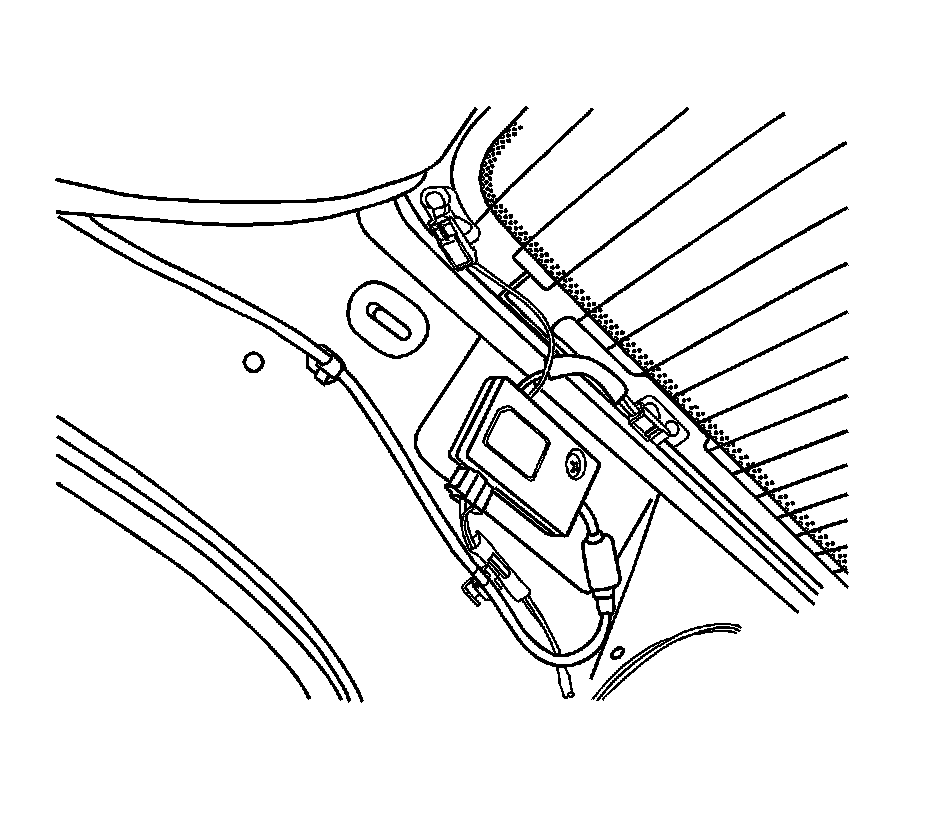

4. Remove the screws and the glass antenna module.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the glass antenna module with the screws.

Tighten the roof antenna retaining screws to 2.5-3.5 N.m (22-31 lb in).

2. Connect the electrical connectors.




3. Install the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Notchback) (Service and Repair)Rear Quarter Upper Trim Panel Replacement (Hatchback) (Service and Repair).
4. Connect the negative battery cable.
