Radio Rear Speaker Replacement (Hatchback)

Radio Rear Speaker Replacement (Hatchback)

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.
2. Remove the rear cargo area side trim panel. Refer to Cargo Area Side Trim Panel Replacement (Hatchback) (Service and Repair).
3. Disconnect the electrical connector.

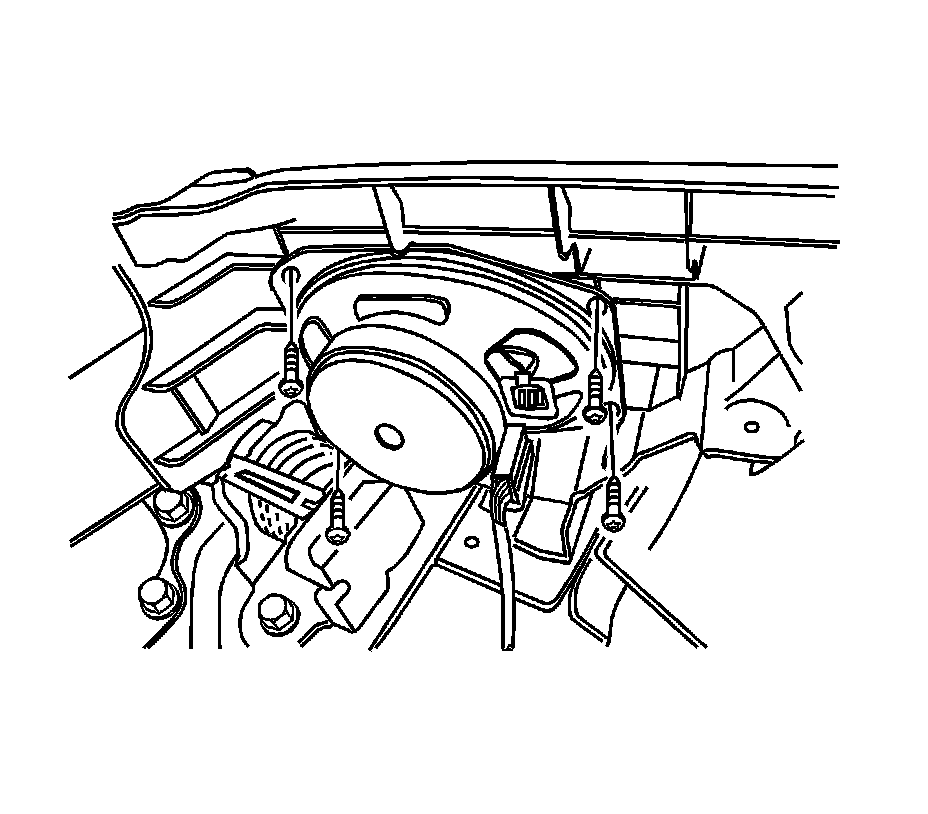

4. Remove the screws and the rear speaker.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the rear speaker with the screws.

Tighten the rear speaker screws to 3 N.m (27 lb in).

2. Connect the electrical connector.
3. Install the rear cargo area side trim panel. Refer to Cargo Area Side Trim Panel Replacement (Hatchback) (Service and Repair).
4. Connect the negative battery cable.
