Radio Rear Speaker Replacement (Notchback)

Radio Rear Speaker Replacement (Notchback)

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.
2. Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair).

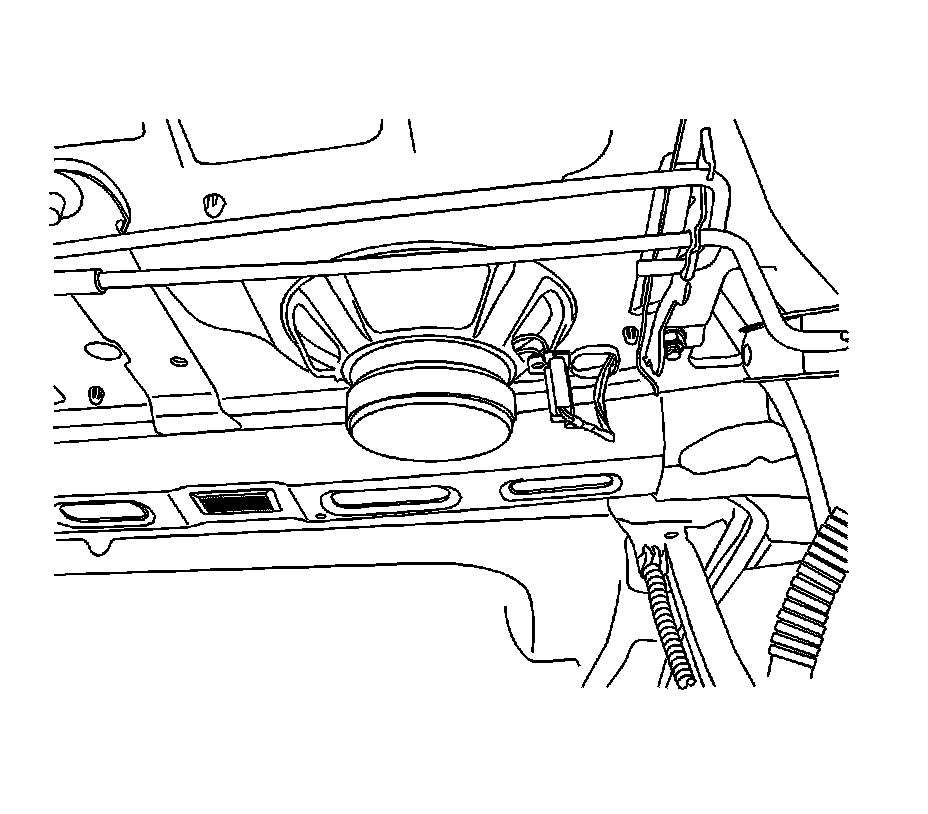

3. Disconnect the electrical connector.

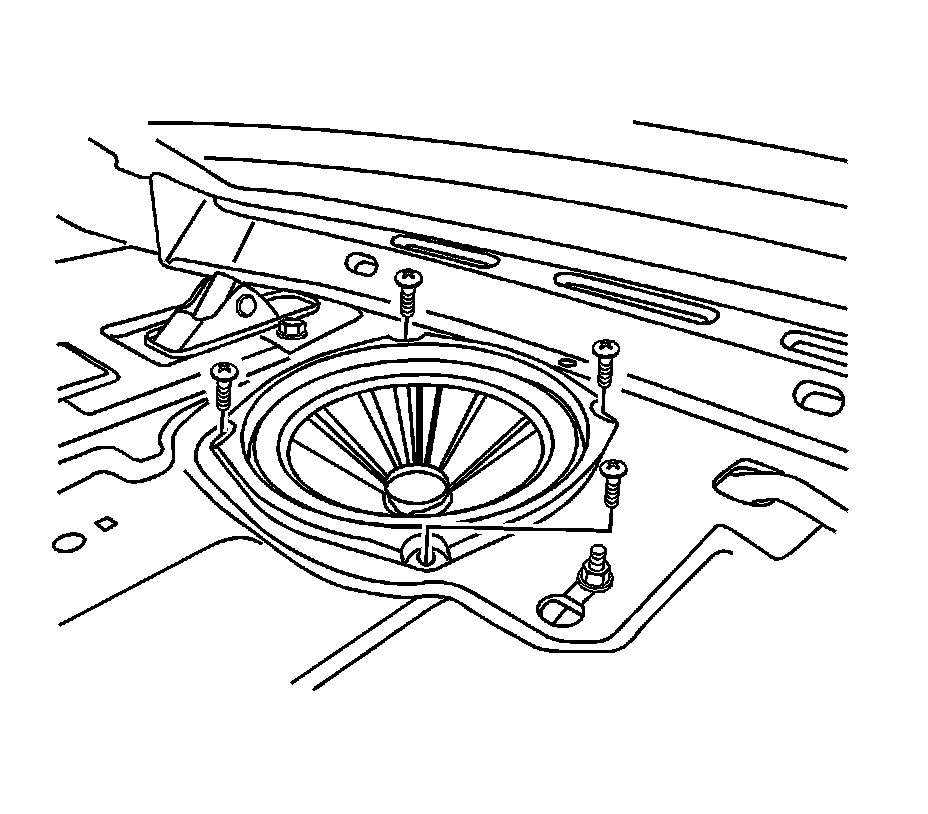

4. Remove the screws and the rear speakers.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the rear speakers with the screws.

Tighten the rear speaker screws to 3 N.m (27 lb in).




2. Connect the electrical connector.
3. Install the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair).
4. Connect the negative battery cable.
