Rear Bumper Impact Bar Replacement


Rear Bumper Impact Bar Replacement


Removal Procedure





1.Remove the rear bumper fascia.

Refer to Rear Bumper Fascia Replacement .

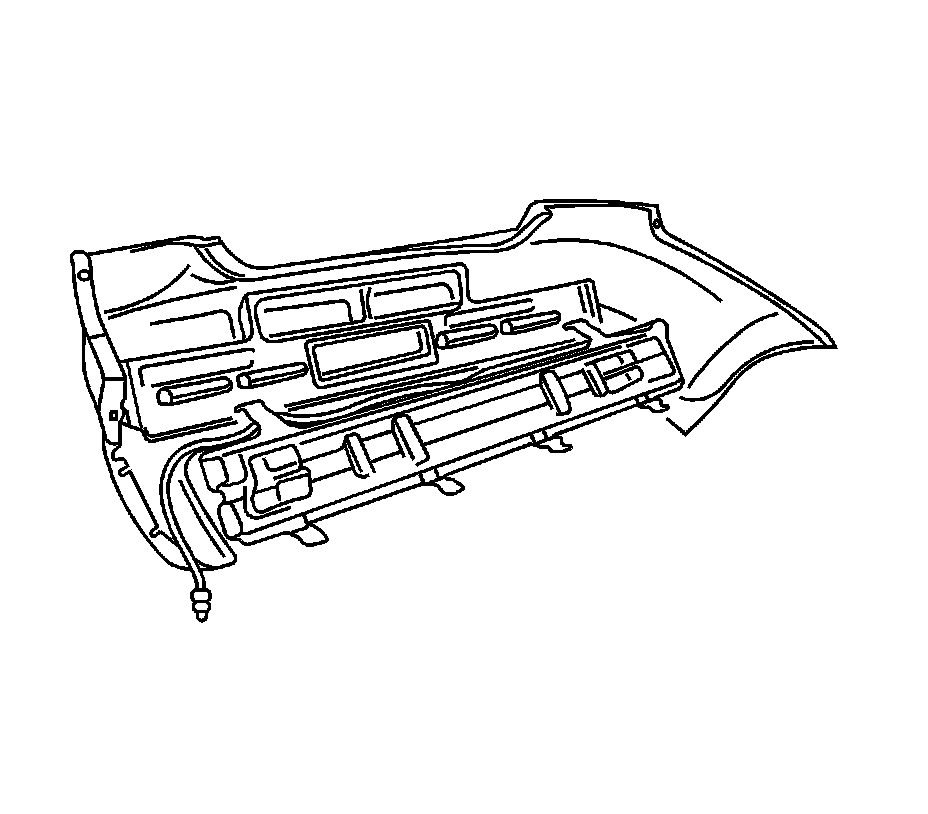

2.Remove the rear bumper impact beam.

Installation Procedure





1.Install the rear bumper impact beam.

2.Install the rear bumper fascia.

Refer to Rear Bumper Fascia Replacement .
