Rear Bumper Shock Absorber: Service and Repair

Rear Energy Absorber Replacement (North American)

Removal Procedure




1. Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Notchback) (Rear Bumper Fascia Replacement (Notchback))Rear Bumper Fascia Replacement (Hatchback) (Rear Bumper Fascia Replacement (Hatchback)).

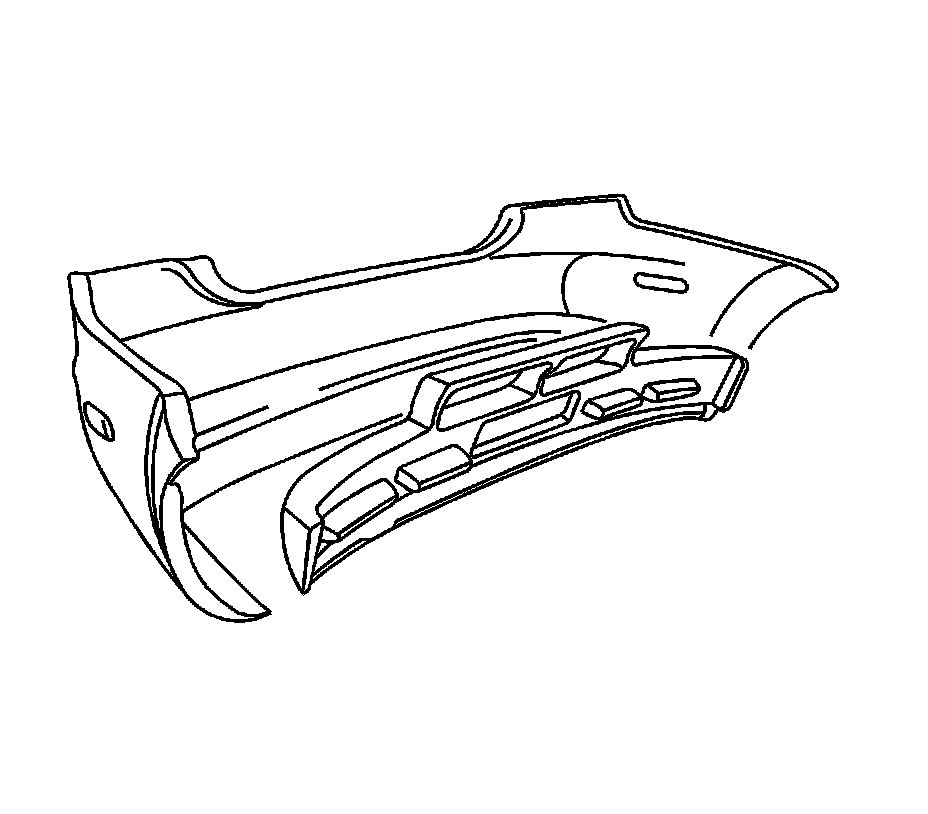

2. Remove the energy absorber.


Installation Procedure




1. Install the energy absorber.
2. Install the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Notchback) (Rear Bumper Fascia Replacement (Notchback))Rear Bumper Fascia Replacement (Hatchback) (Rear Bumper Fascia Replacement (Hatchback)).
