Hood Hinge: Service and Repair

Hood Hinge Replacement

Removal Procedure




1. Remove the hood. Refer to Hood Replacement (Service and Repair).

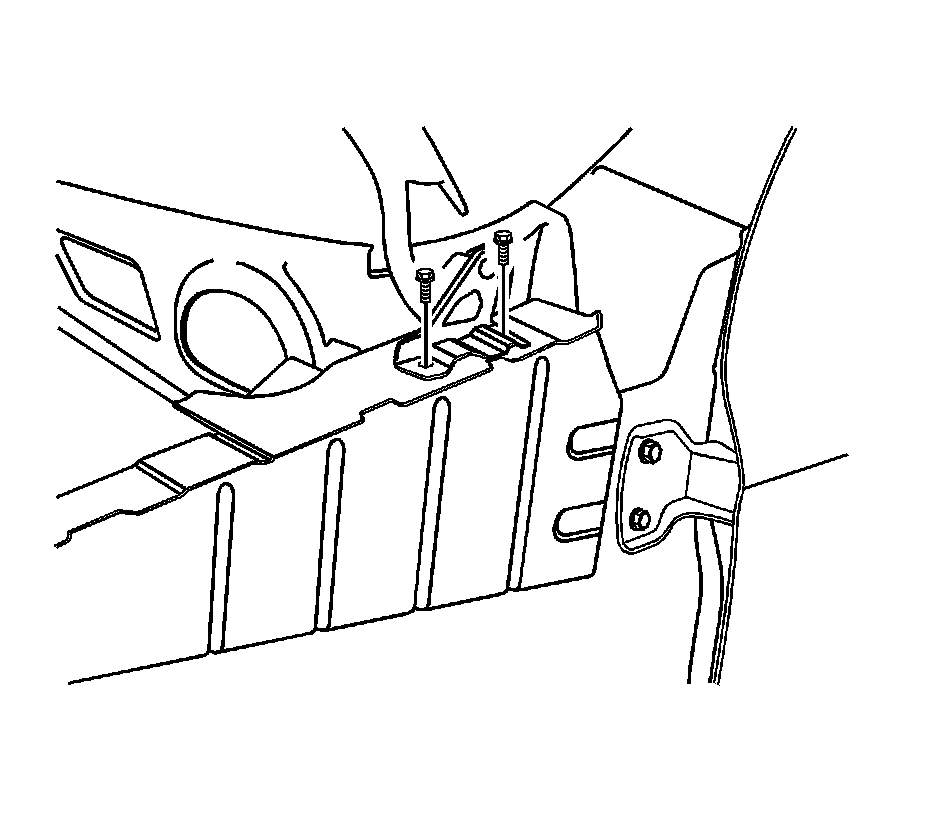

2. Remove the bolts and the hinge.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the hinge with the bolts.

Tighten the hinge bolts to 20 N.m (15 lb ft).

2. Install the hood. Refer to Hood Replacement (Service and Repair).
