Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Aveo L4-1.6L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Diagrams
>>
Connector Views
Connector Views

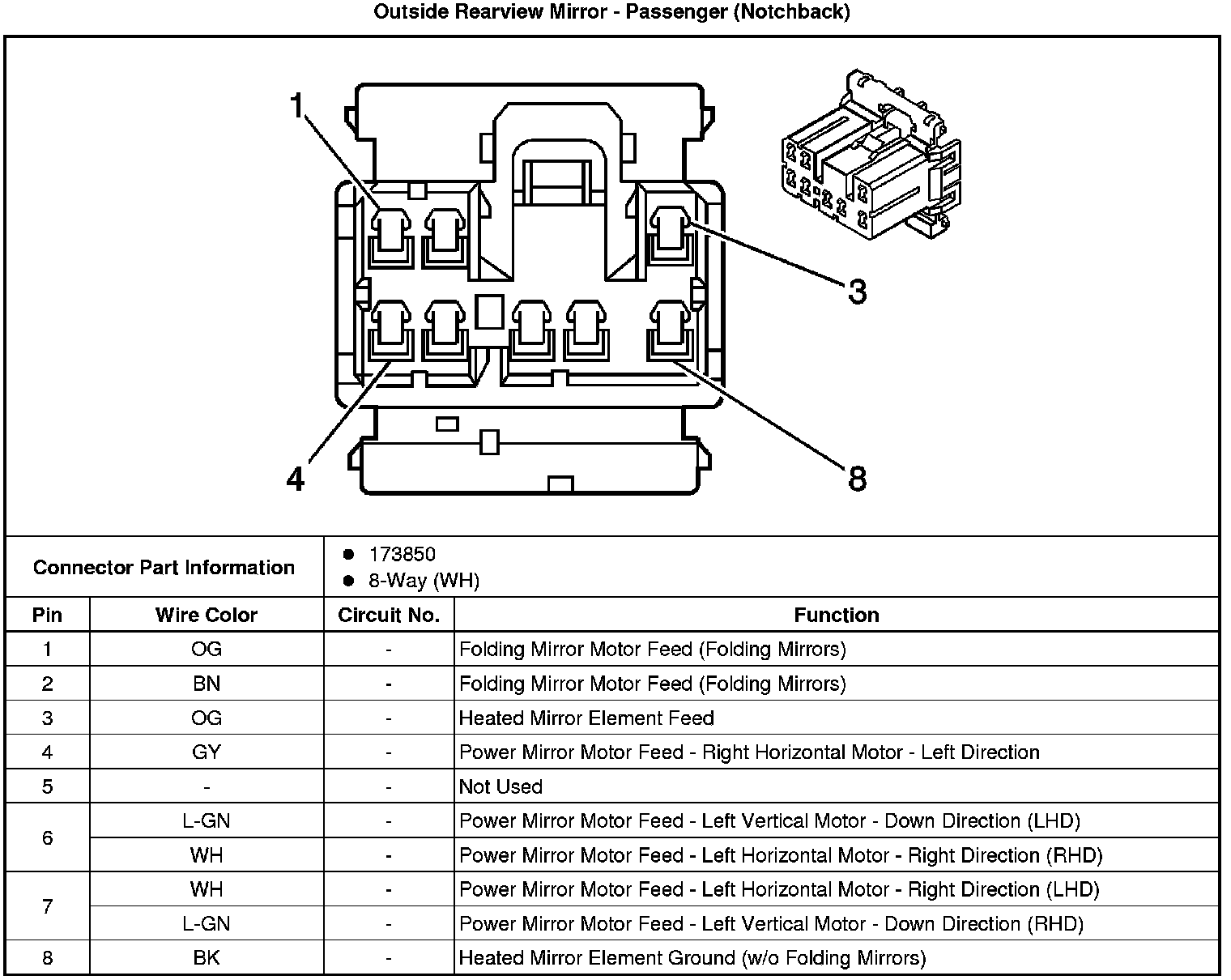

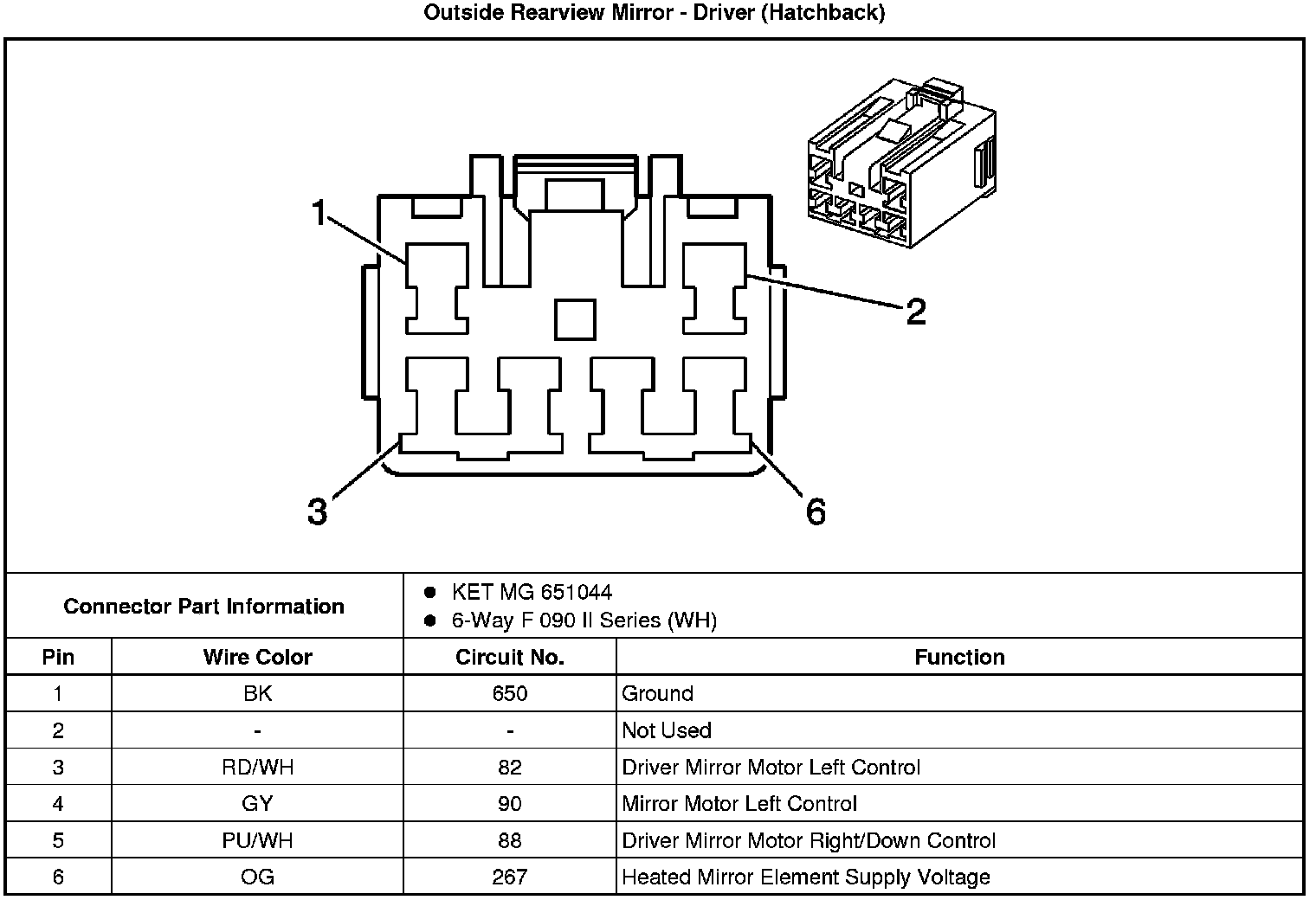

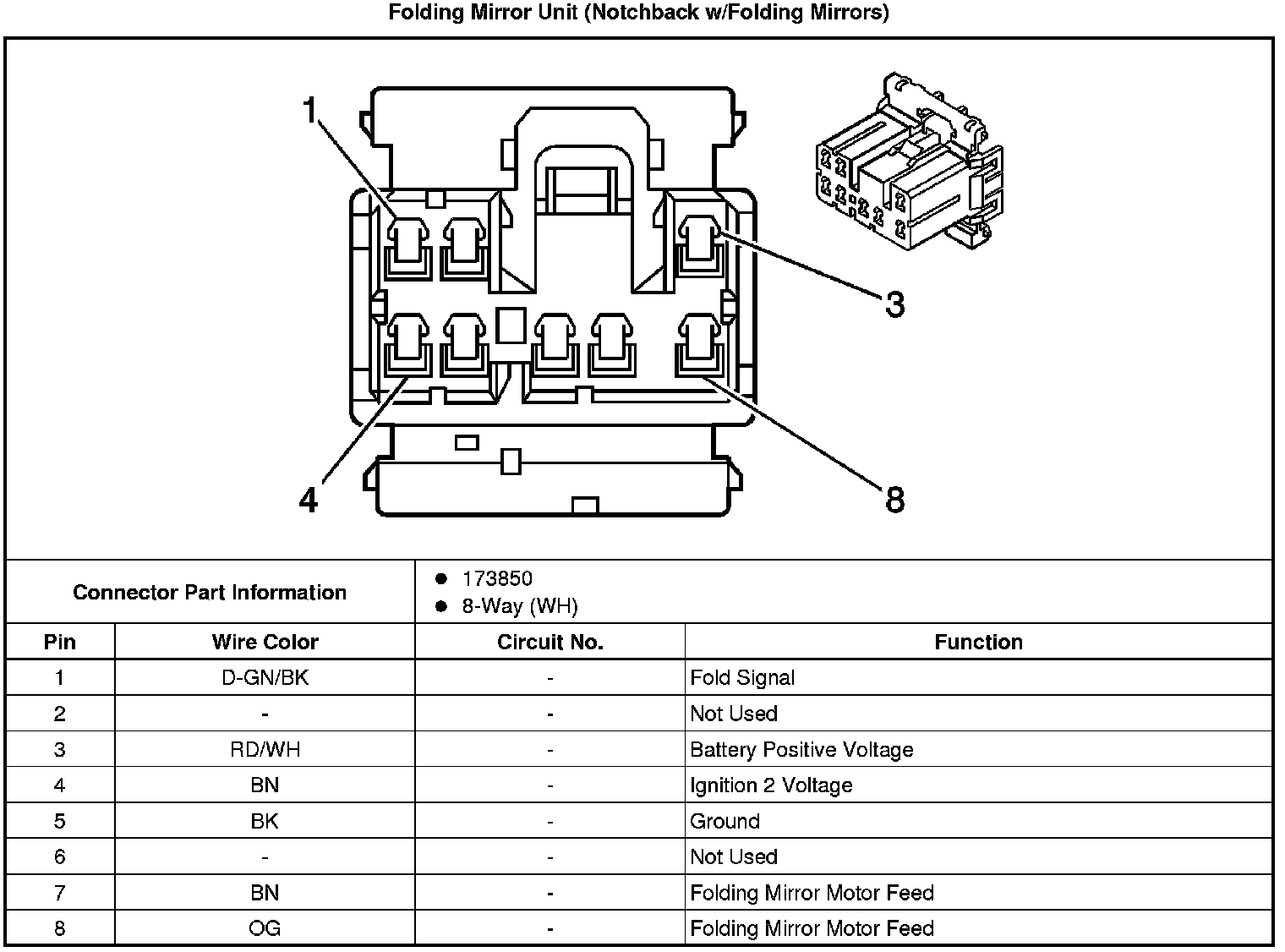

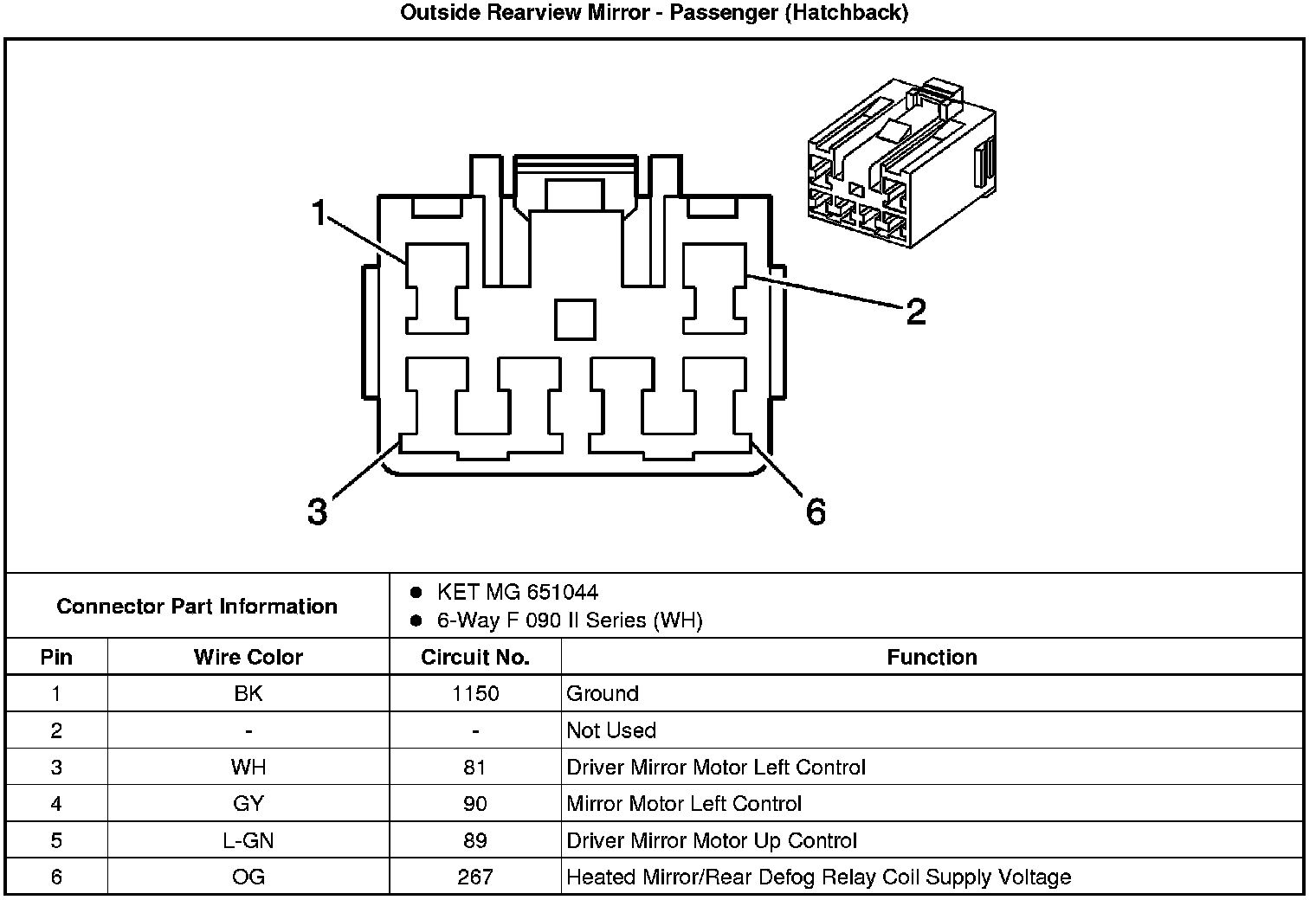

Mirror Connector End Views
