Rear Spoiler Replacement (Notchback)

Rear Spoiler Replacement (Notchback)

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair).
2. Remove the clips and rear compartment trim.

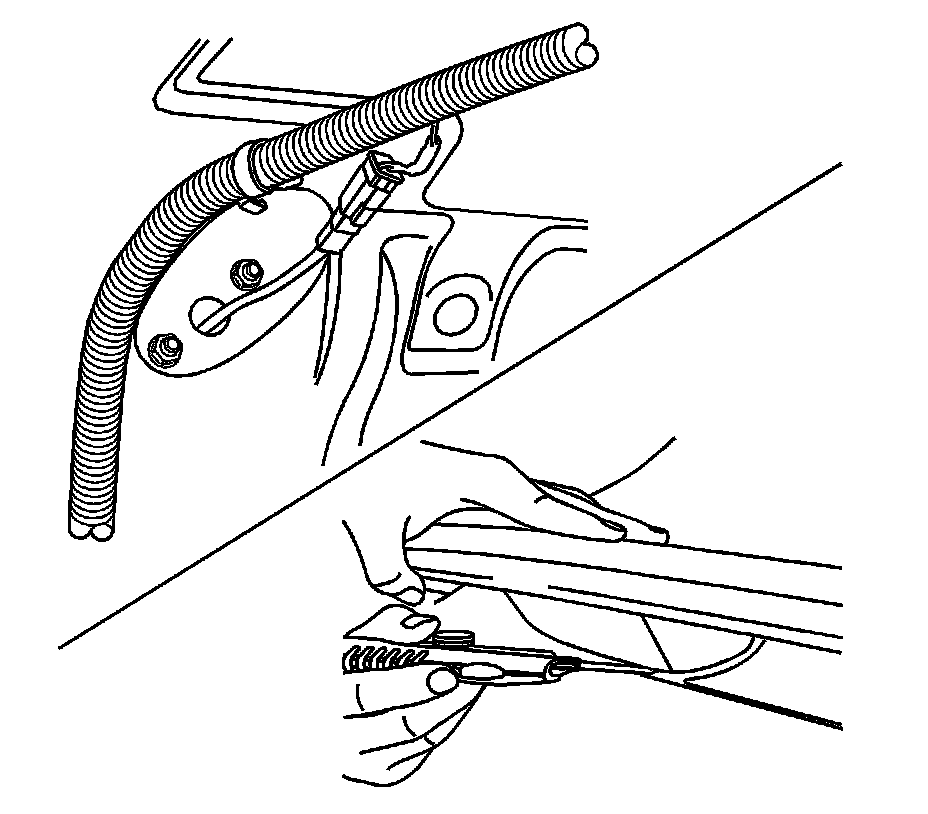

3. Disconnect the rear spoiler electrical connector.
4. Remove the nuts.
5. Using a flat-bladed tool, carefully separate the rear spoiler from the rear compartment lid.

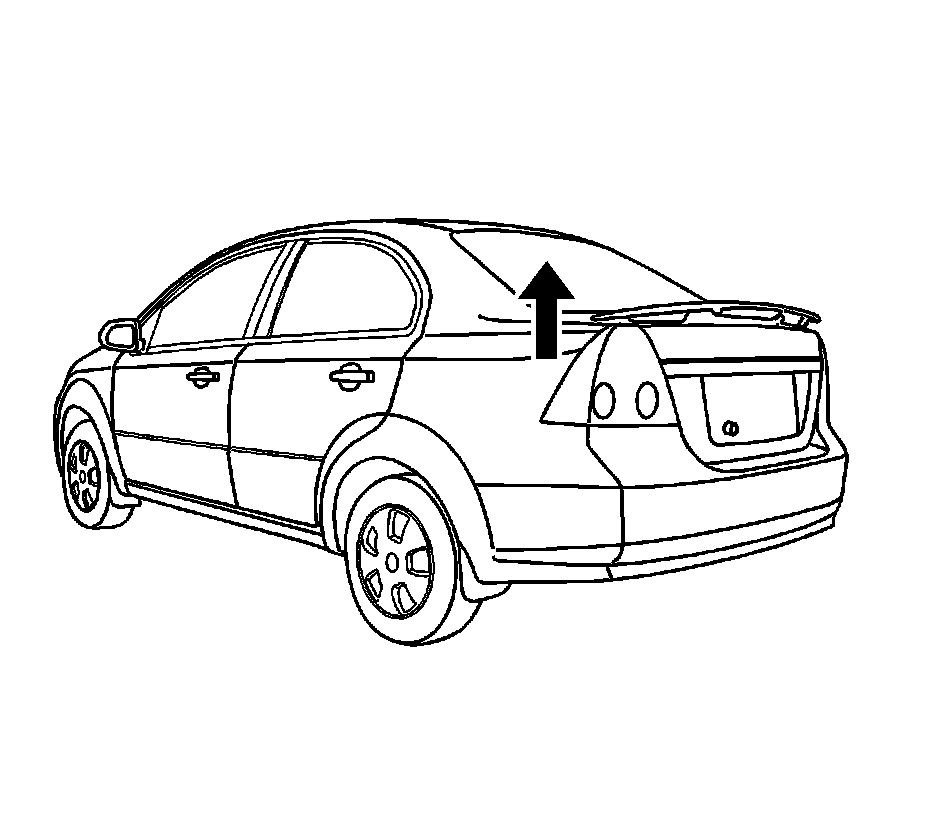

6. Remove the rear spoiler from the rear compartment lid.


Installation Proccedure





Important: If reusing the rear spoiler, remove any remaining double-sided tape from the rear spoiler and the rear compartment lid.


1. Apply new double-sided tape.
2. Peel off the adhesive backing paper and affix the rear spoiler on to the rear compartment lid, ensuring it is carefully positioned.





Notice: Refer to Fastener Notice (Fastener Notice).

3. Install the nuts attaching the rear spoiler.

Tighten the nuts to 3 N.m (27 lb in).

4. Install the rear compartment lid trim with the clips.
5. Connect the negative battery cable.
