Antilock Brake System Diagrams (Notchback)



Antilock Brake System Schematics (Notchback)

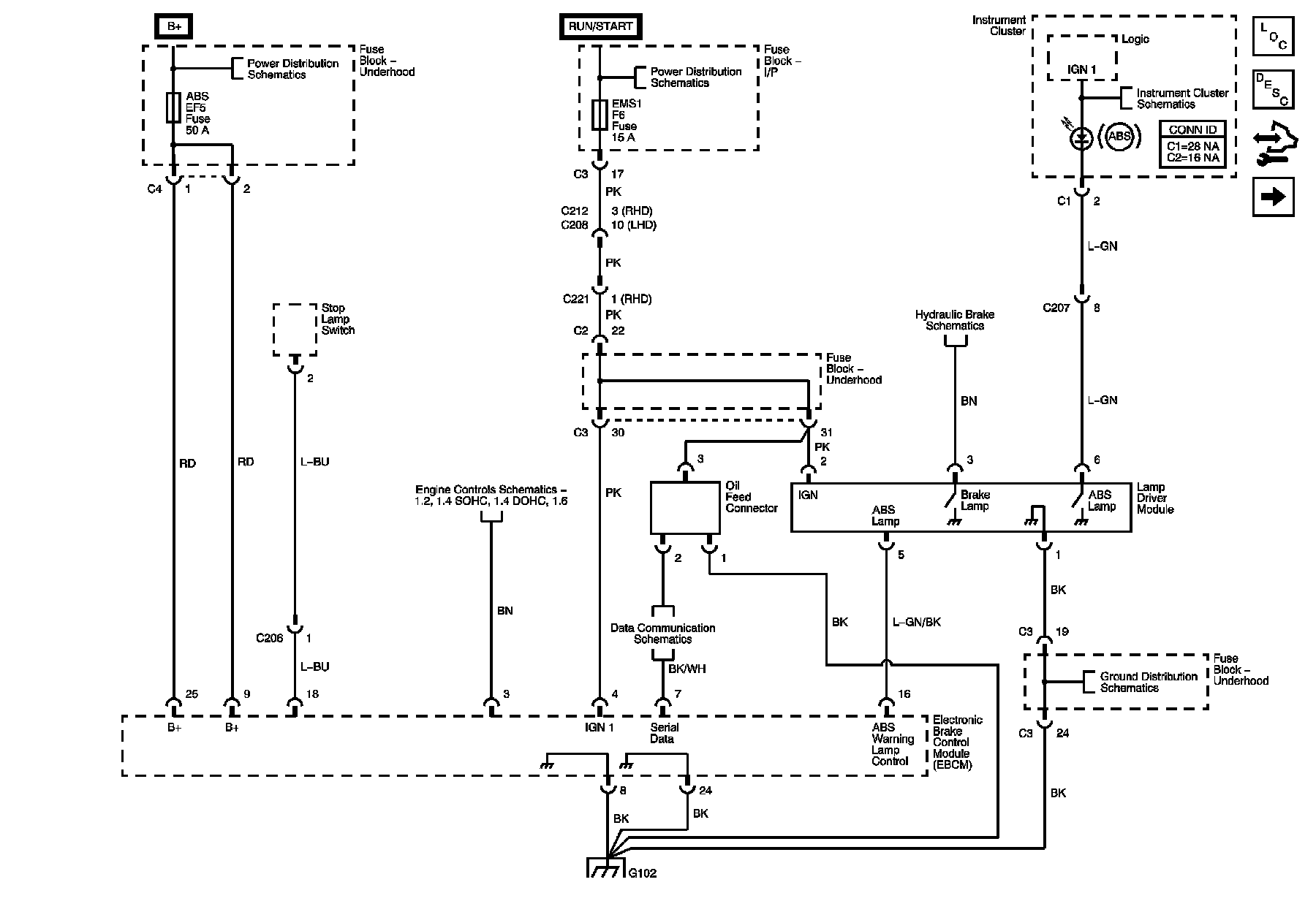

Electronic Brake Control Module (EBCM) Power and Ground Distribution, Serial Data, Lamp Driver Module and Stop Lamp Switch

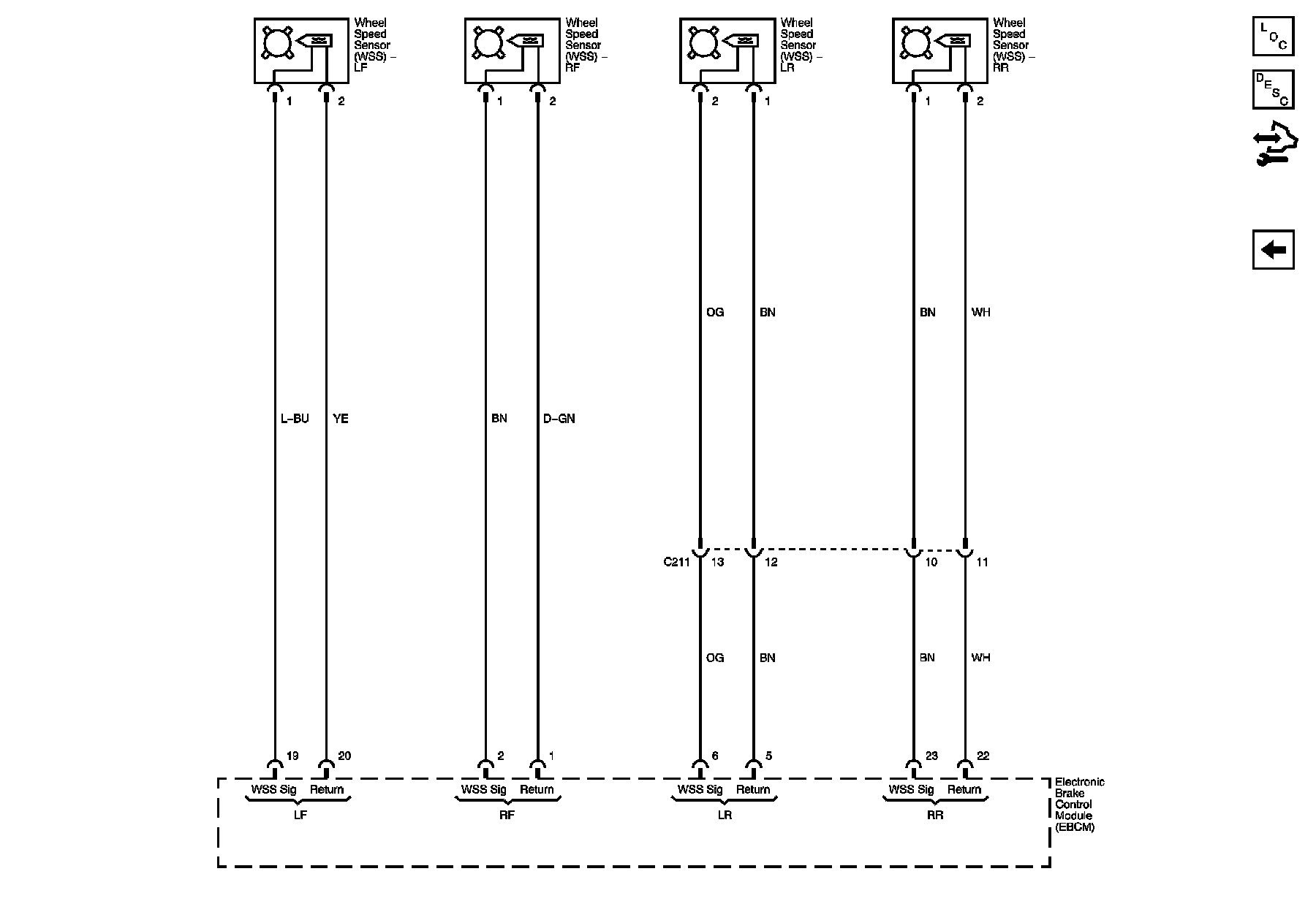

Wheel Speed Sensors
