Rear Brake Hose Replacement

Rear Brake Hose Replacement

Removal Procedure





Notice: Refer to Vehicle Lifting and Jacking Notice (Vehicle Damage Warnings).

1. Raise and support the vehicle.

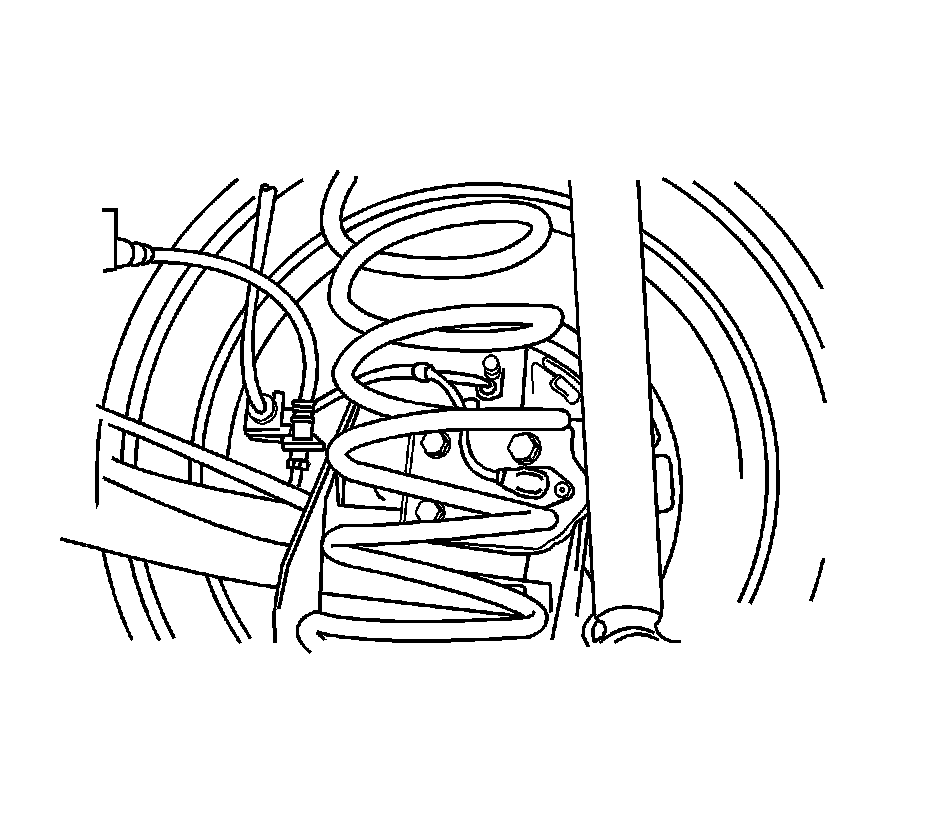

2. Disconnect the brake lines from the brake hoses at the body and the rear axle brackets.




3. Remove both brake hose E-ring retainers.
4. Remove the brake hoses from the brackets.


Installation Procedure

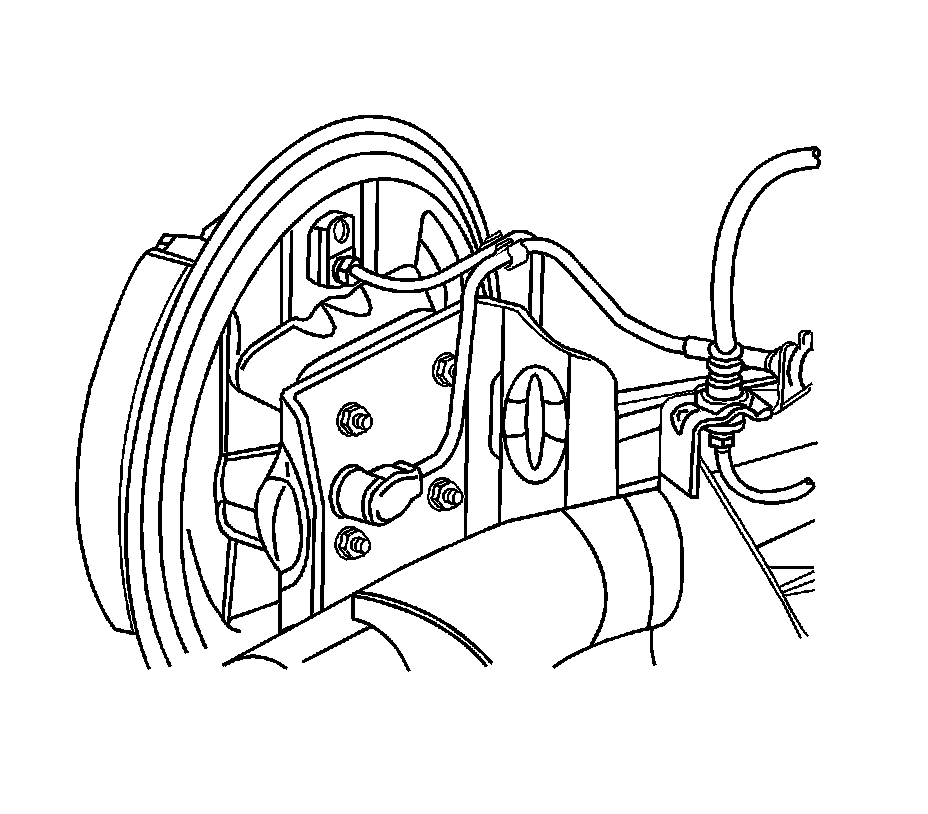

1. Install the brake hoses to the body and the rear axle brackets.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Connect the brake lines to the brake hose.

Tighten the brake lines to 16 N.m (12 lb ft).




3. Install the brake hose retainers.
4. Lower the vehicle.
5. Bleed the brake system. Refer to Hydraulic Brake System Bleeding (Manual) (Service and Repair).
6. Check the brake system for leaks.
