Home
>>
Chevrolet
>>
2008
>>
Aveo L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Blower Motor Switch
Blower Motor Switch

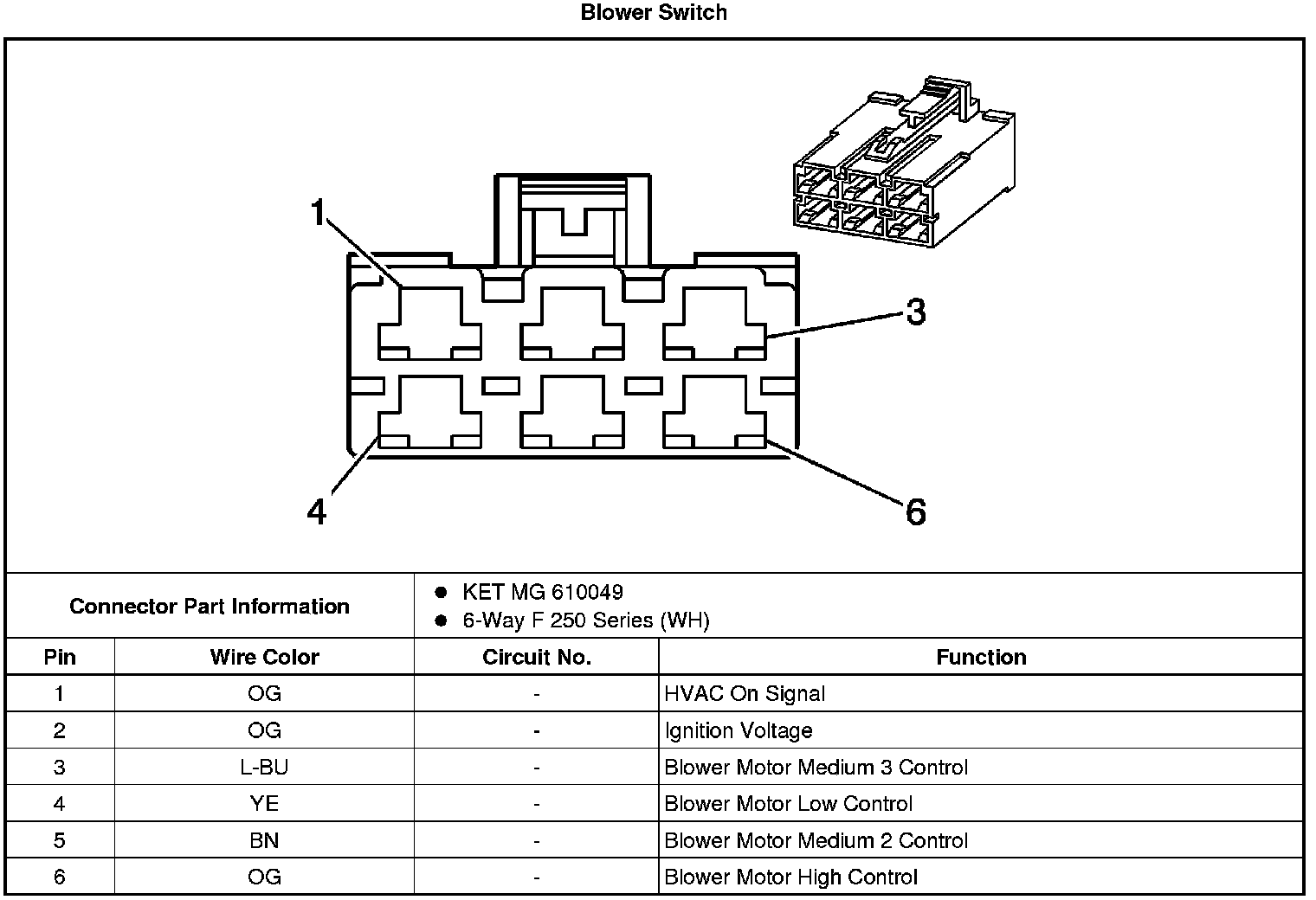

HVAC Connector End Views
