Coolant Temperature Sensor / Switch HVAC
Coolant Temperature Sensor / Switch HVAC

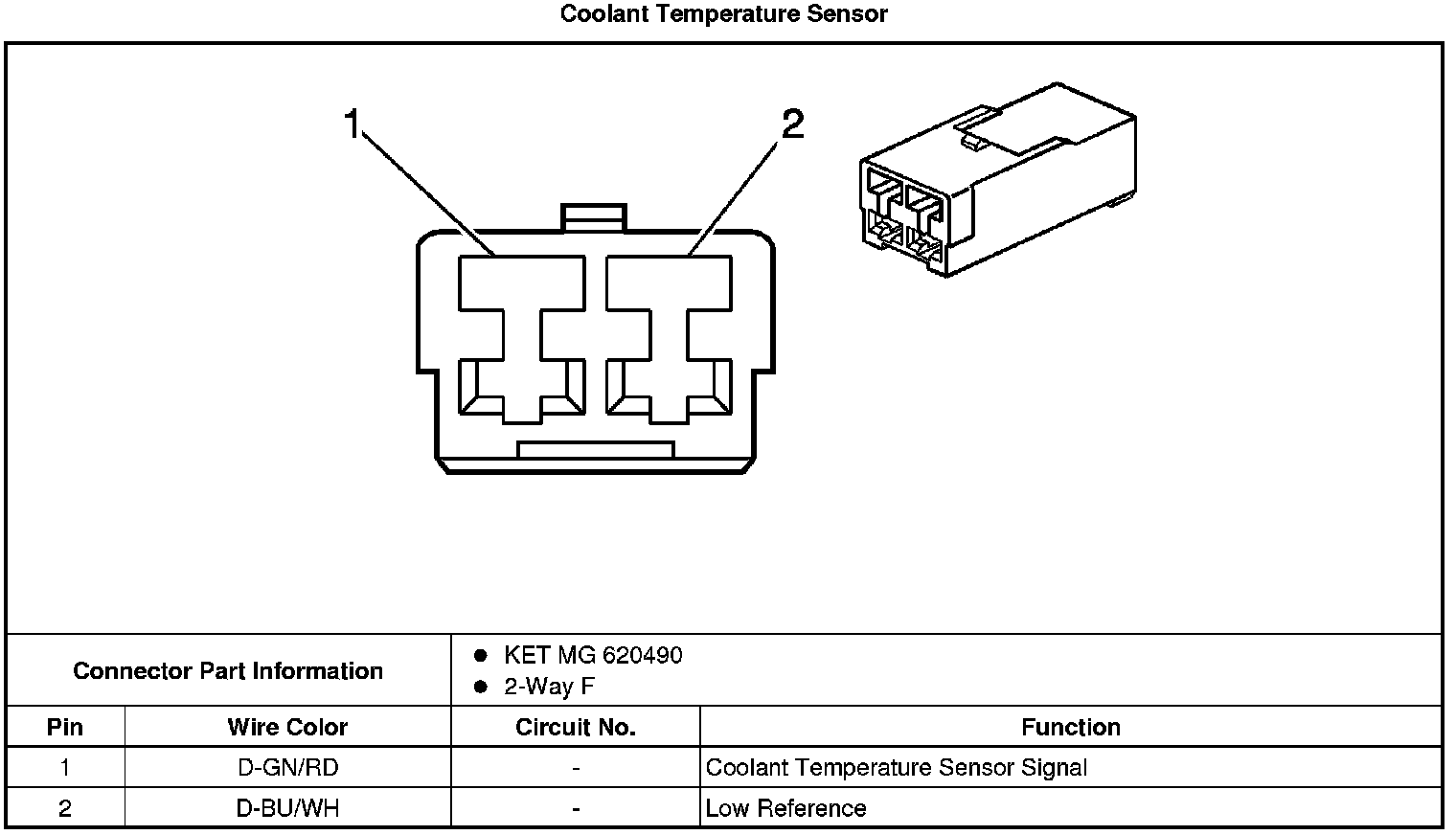

HVAC Connector End Views
