Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Aveo L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Hazard Warning Flasher

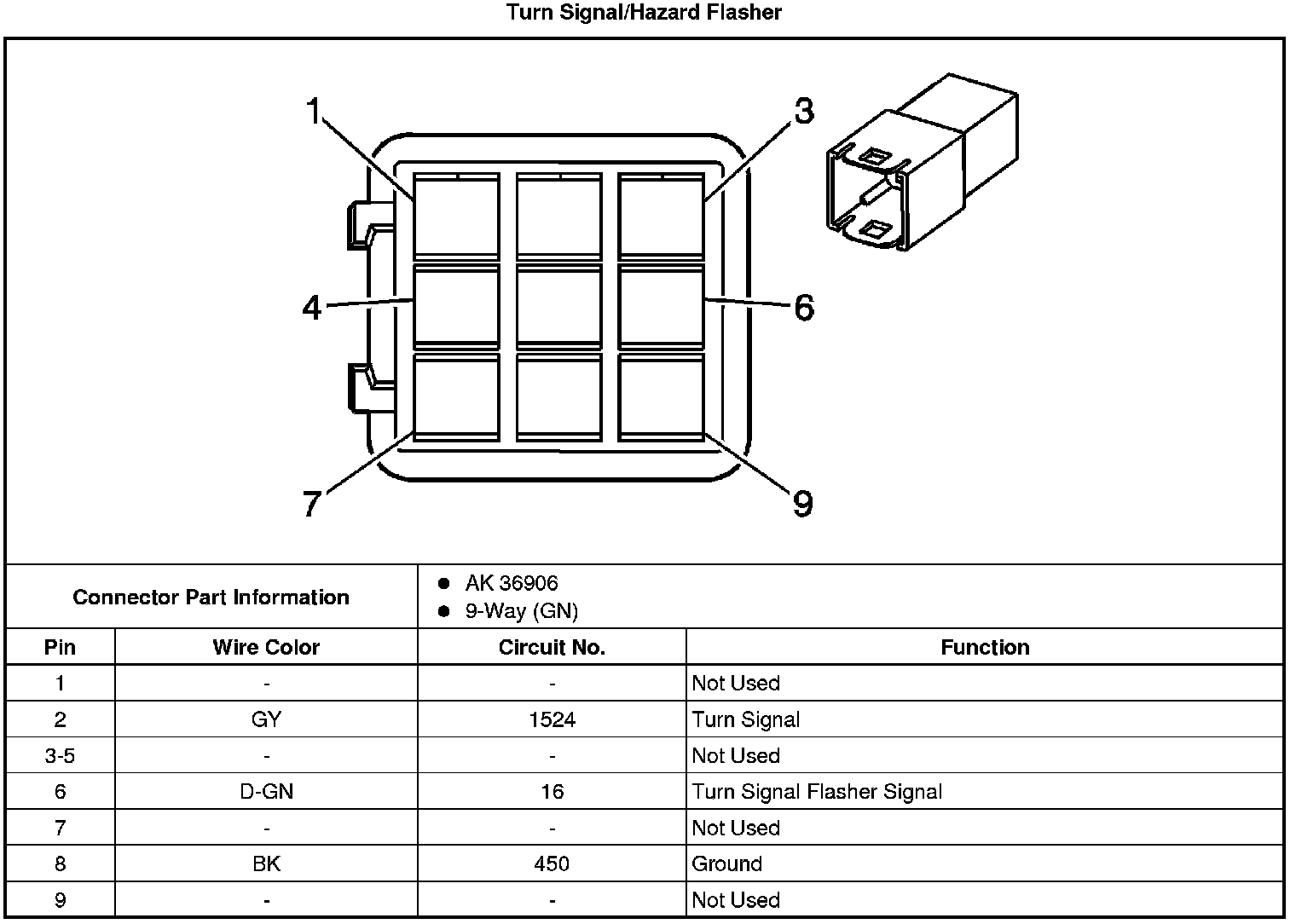

Hazard Warning Flasher
Lighting Systems Connector End Views (Hatchback)
