Lighting and Horns
>>
Horn
>>

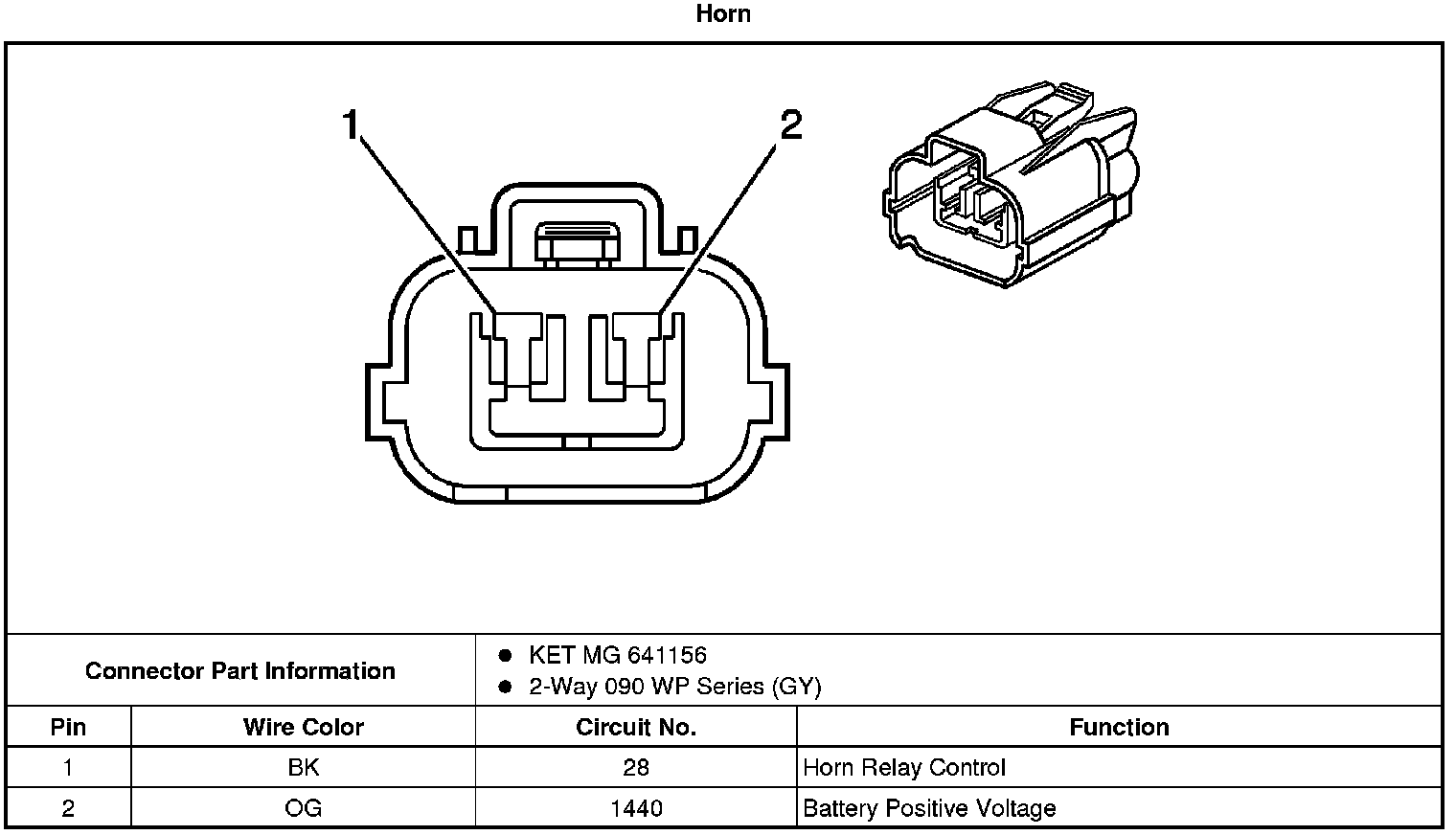

Horn Connector End Views (Hatchback)
Horn Connector End Views (Hatchback)
Horn
Connector End Views (Hatchback)
