Power Door Lock Actuator
>>

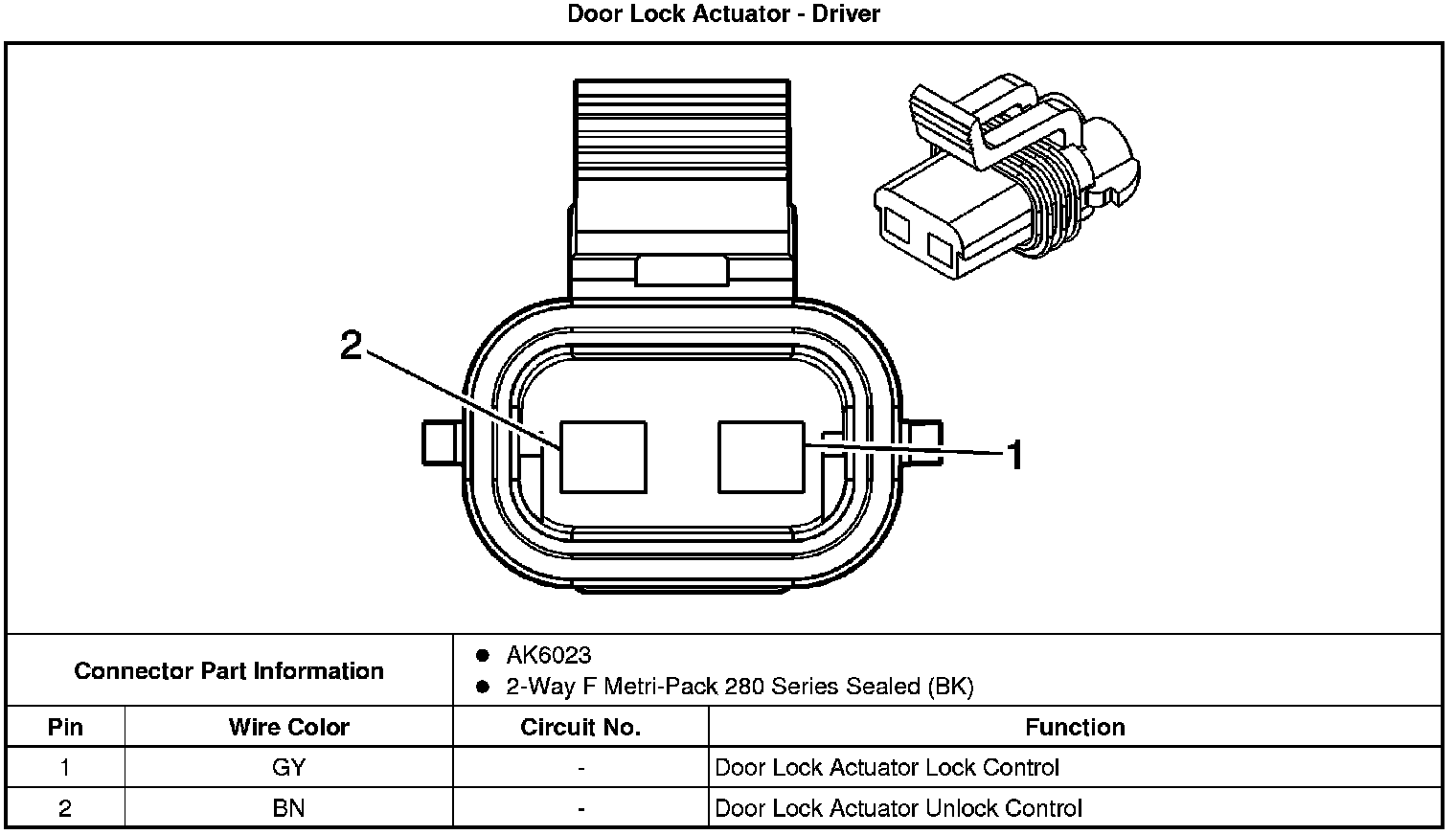

Vehicle Access Connector End Views (Notchback)

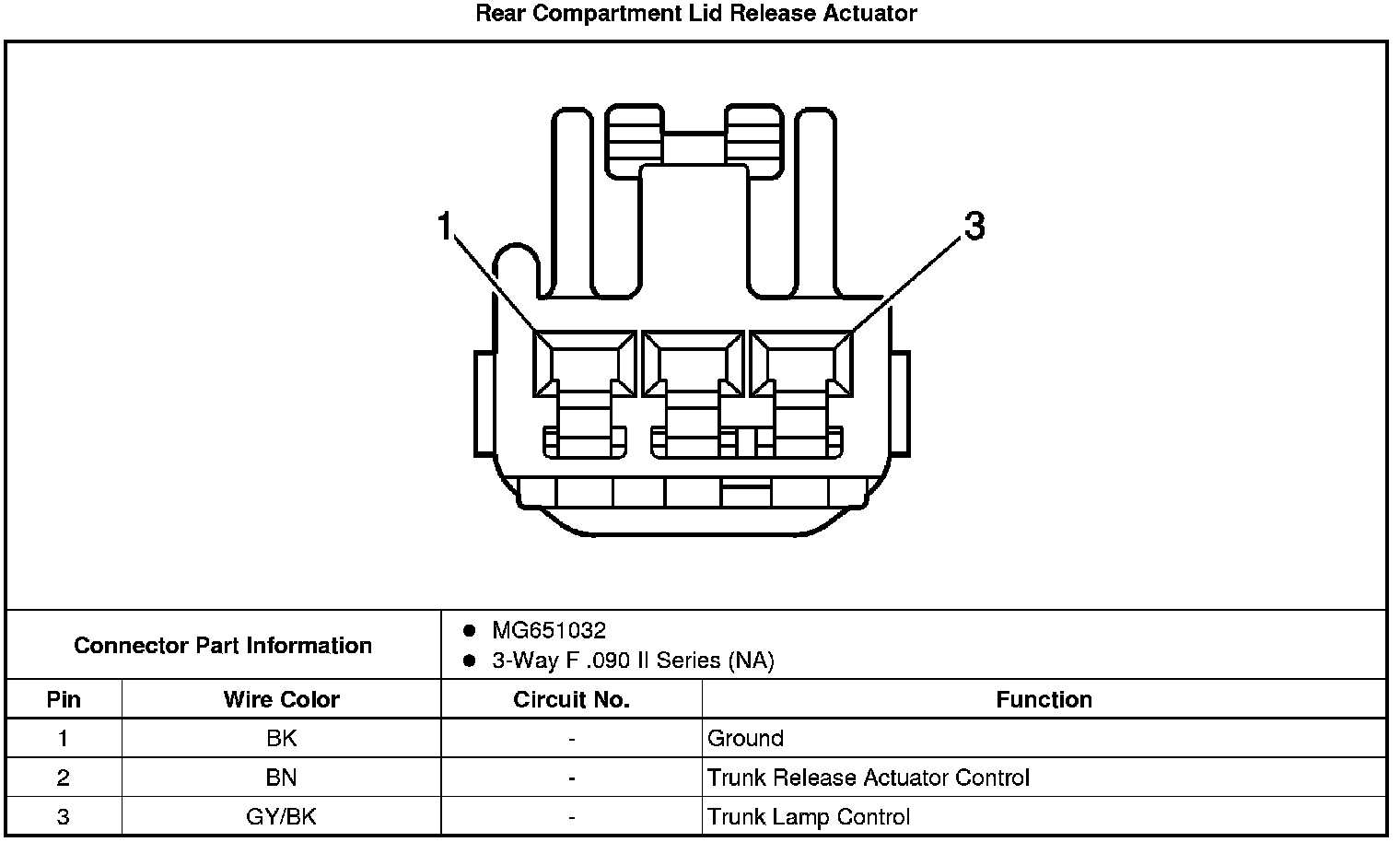

Vehicle Access Connector End Views (Notchback)
Vehicle Access Connector End Views (Notchback)
