Tire Monitoring System
Tire Monitoring System

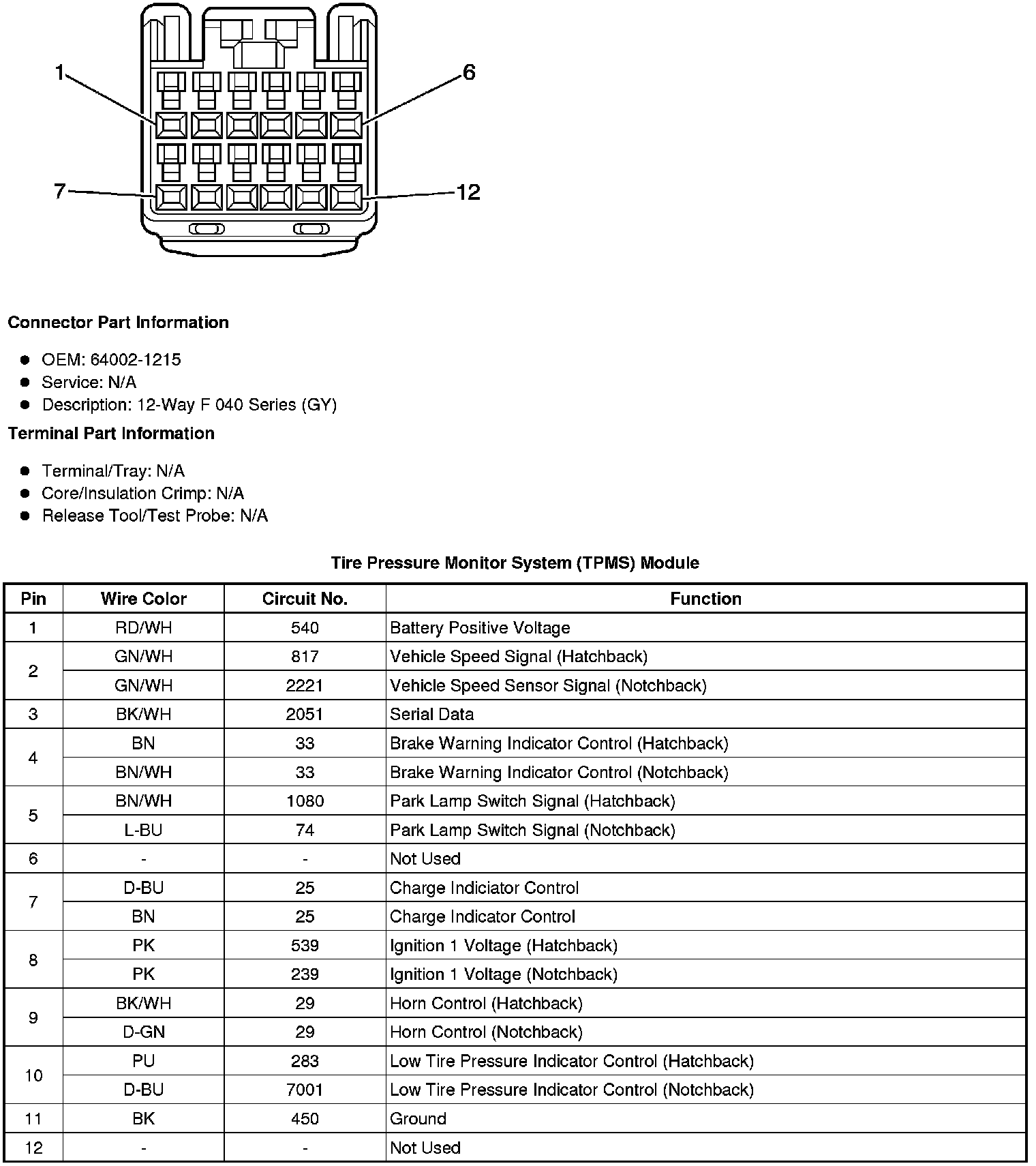

Tire Pressure Monitoring System Connector End Views
Tire Pressure Monitor System (TPMS) Module
