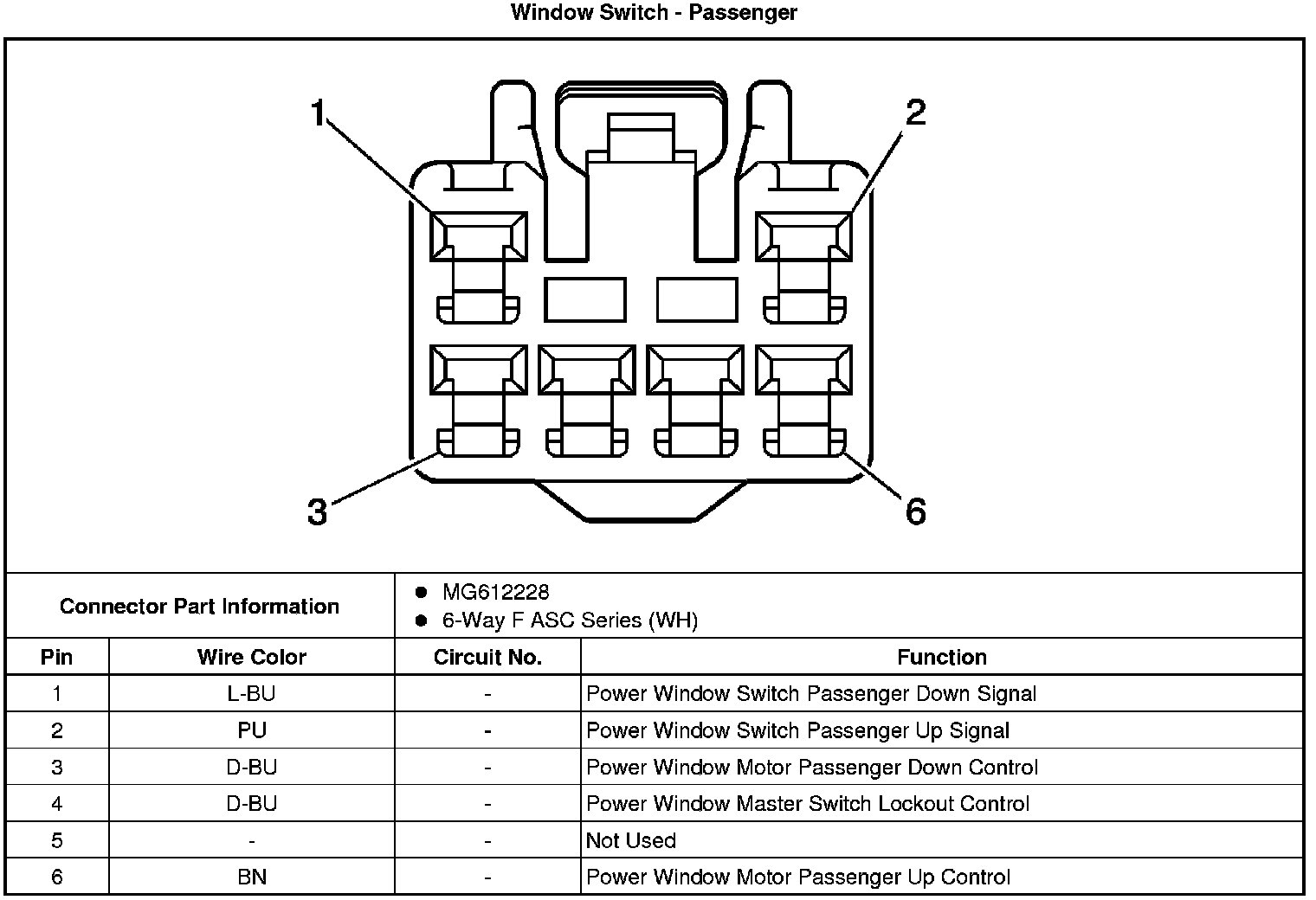

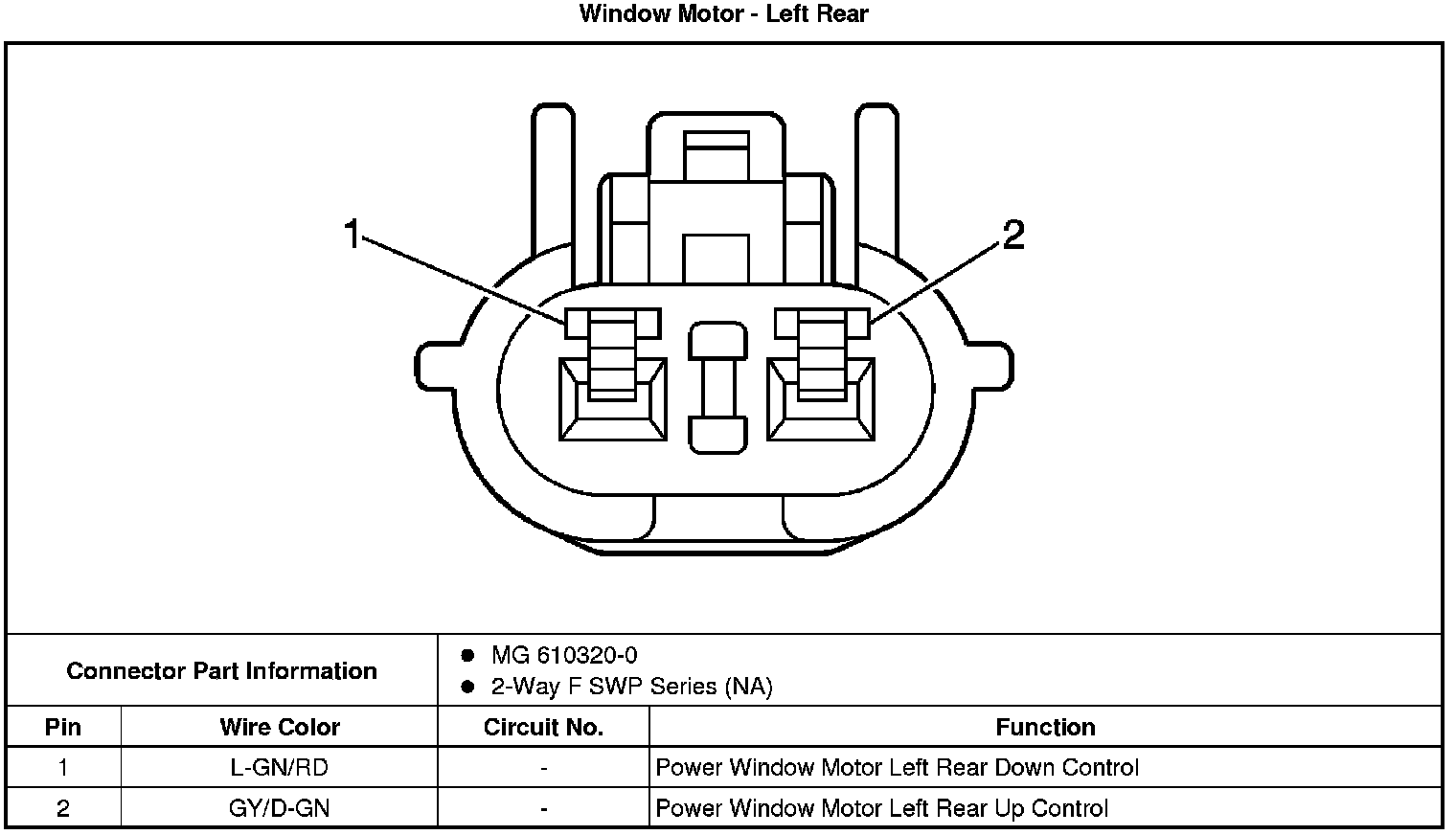

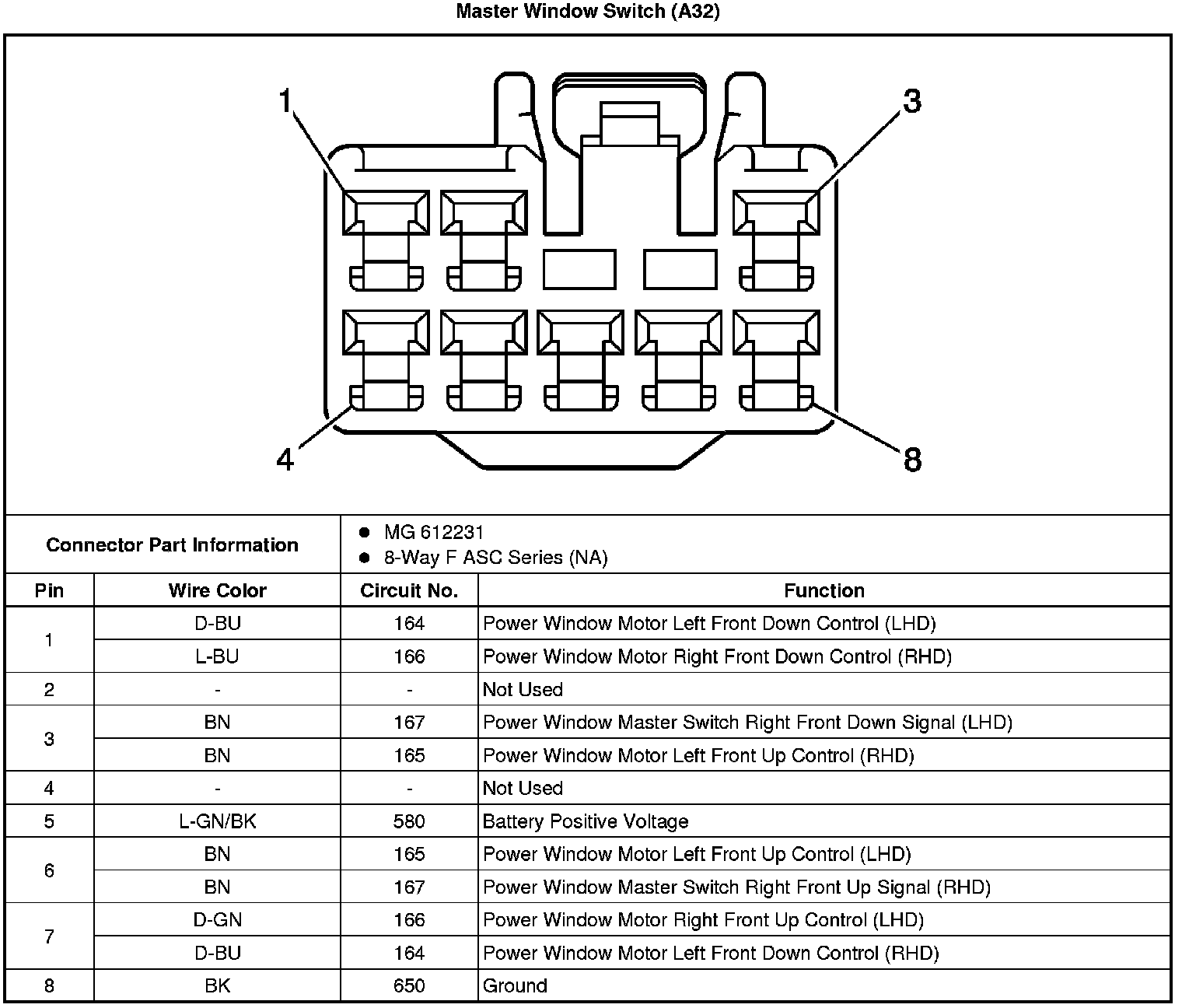

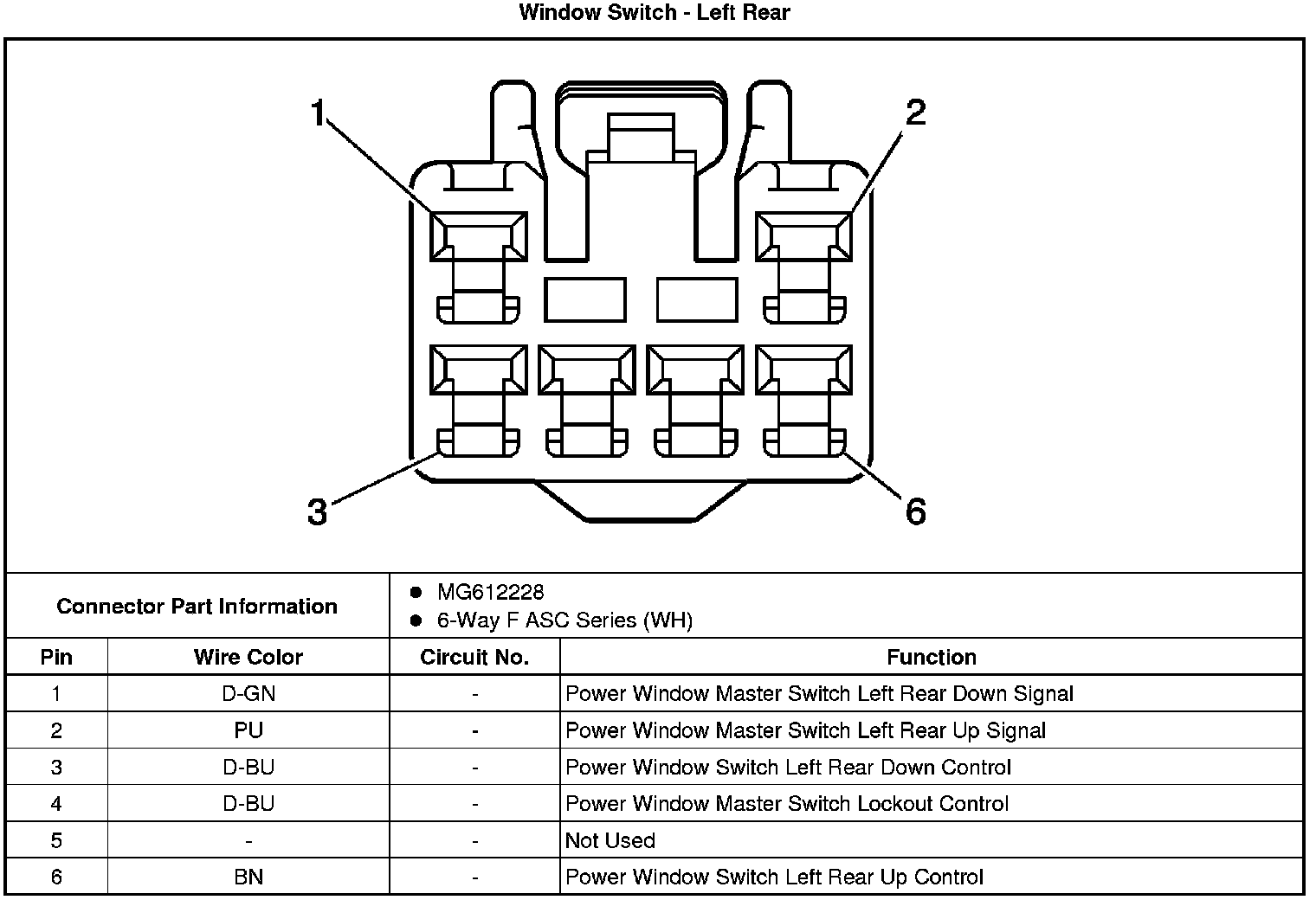

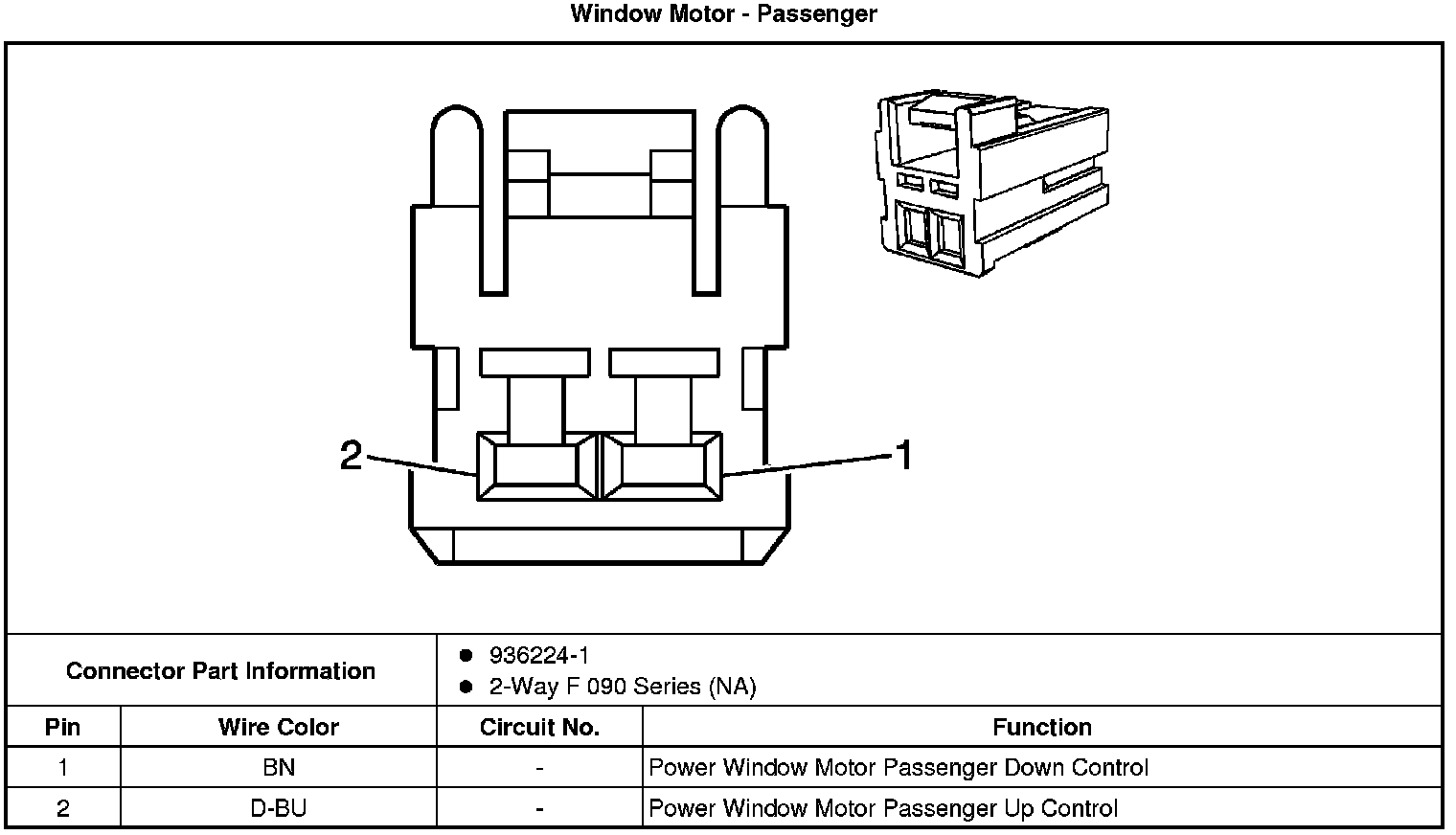

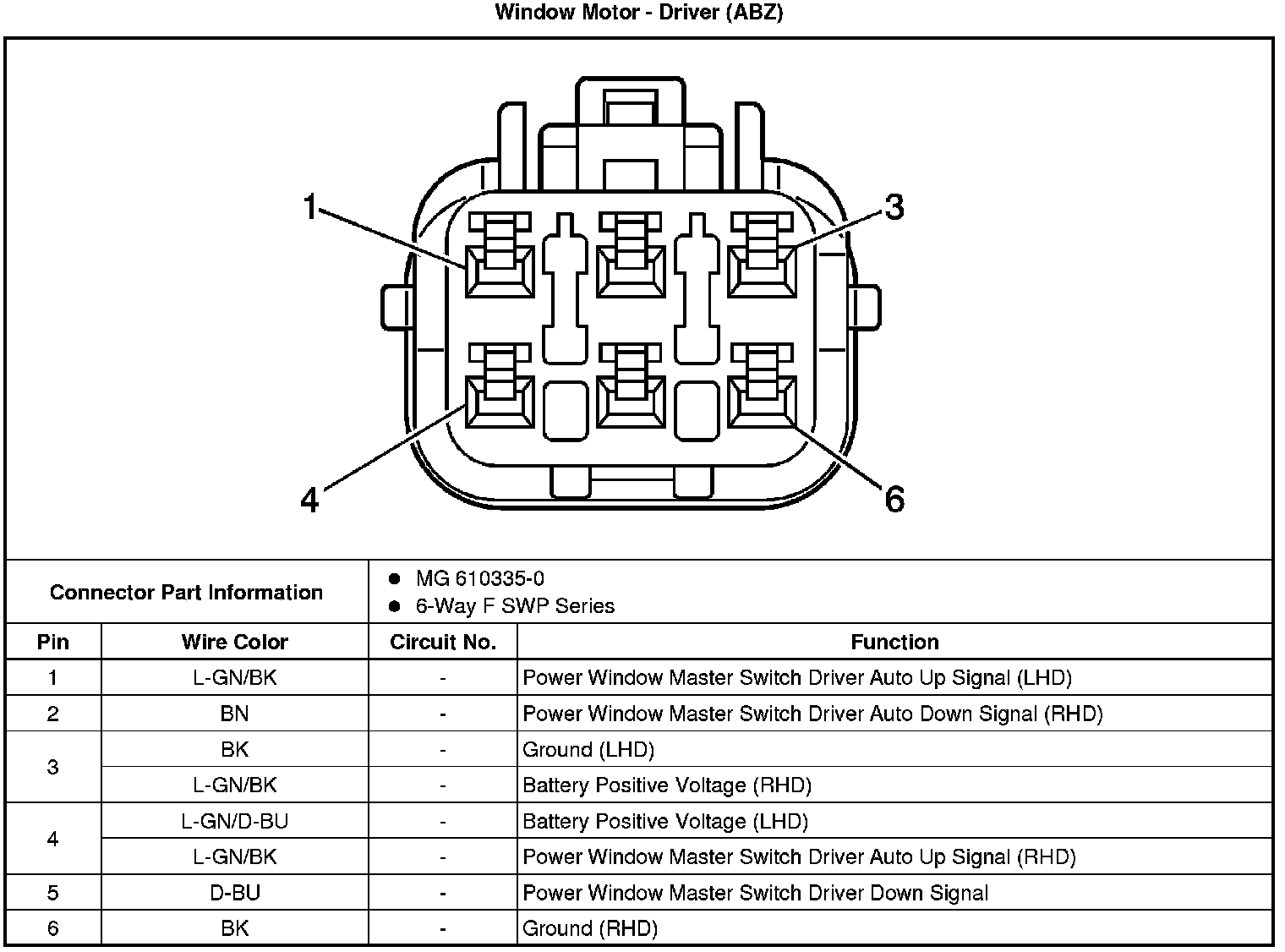

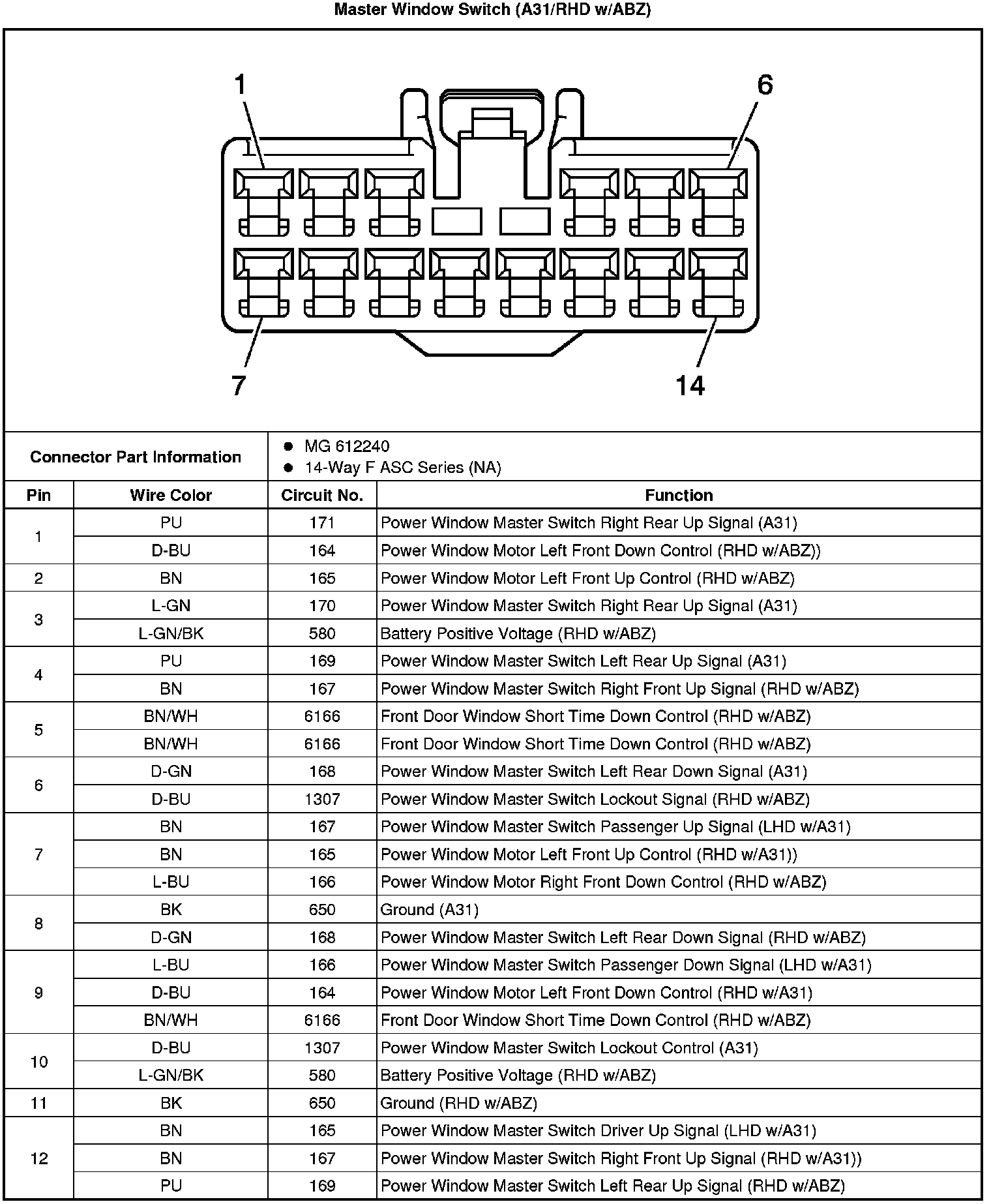

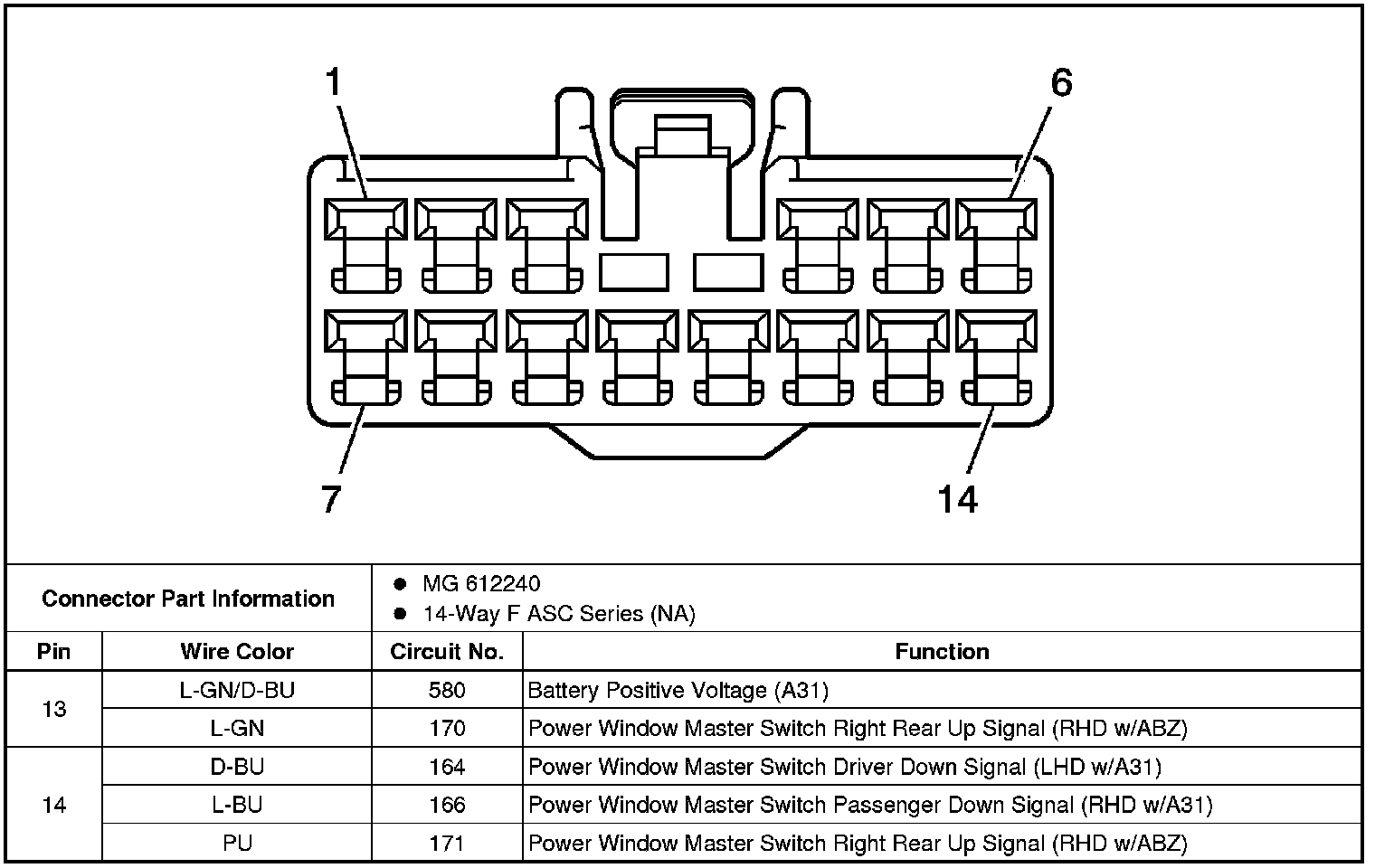

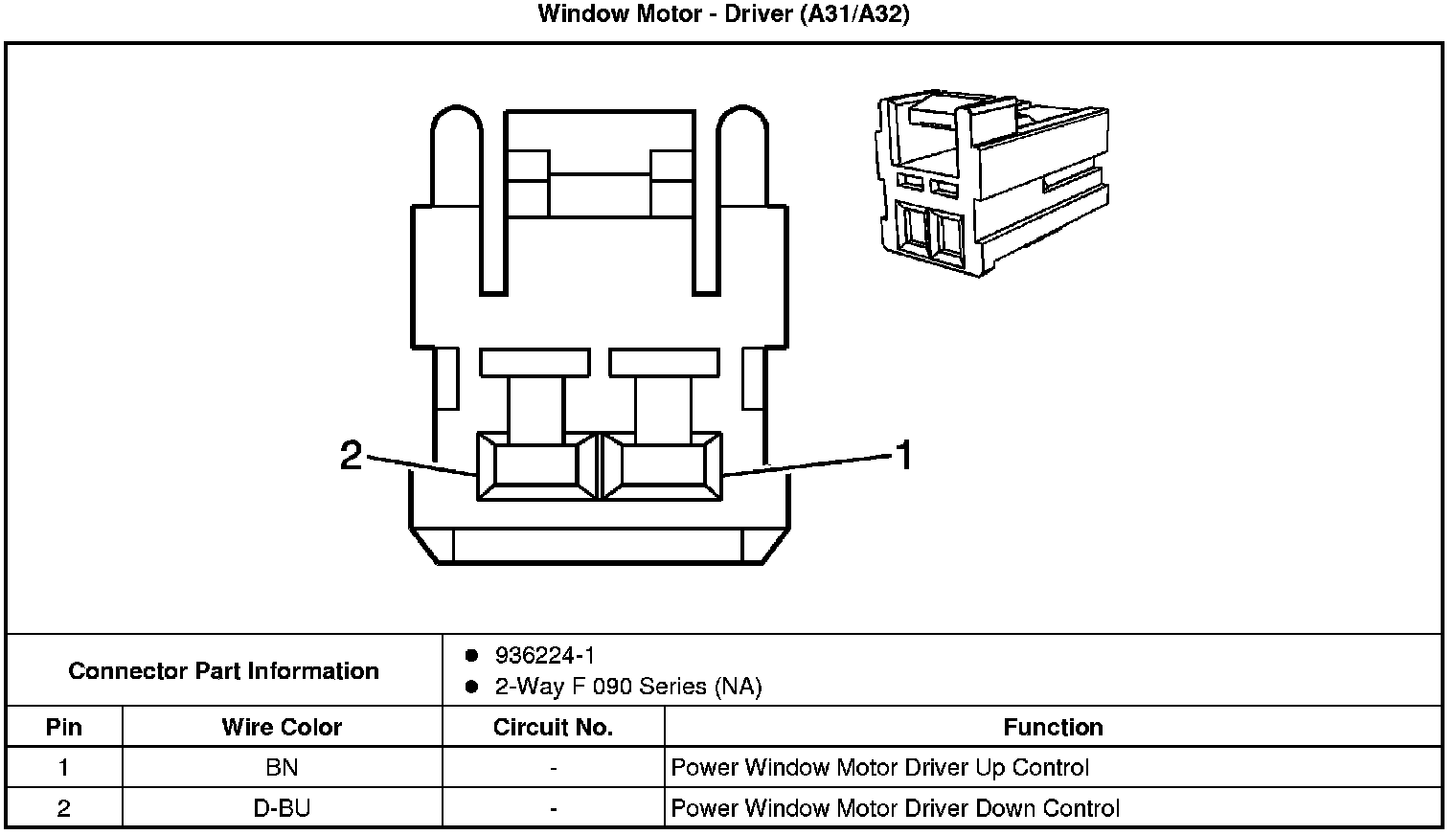

Window Systems Connector End Views (Notchback)
Window Systems Connector End Views (Notchback)
Window Systems Connector End Views (Notchback)
