Antilock Brakes / Traction Control Systems
>>
Antilock Brake System Diagrams (Hatchback)
Antilock Brake System Diagrams (Hatchback)
Antilock Brake System Schematics (Hatchback)

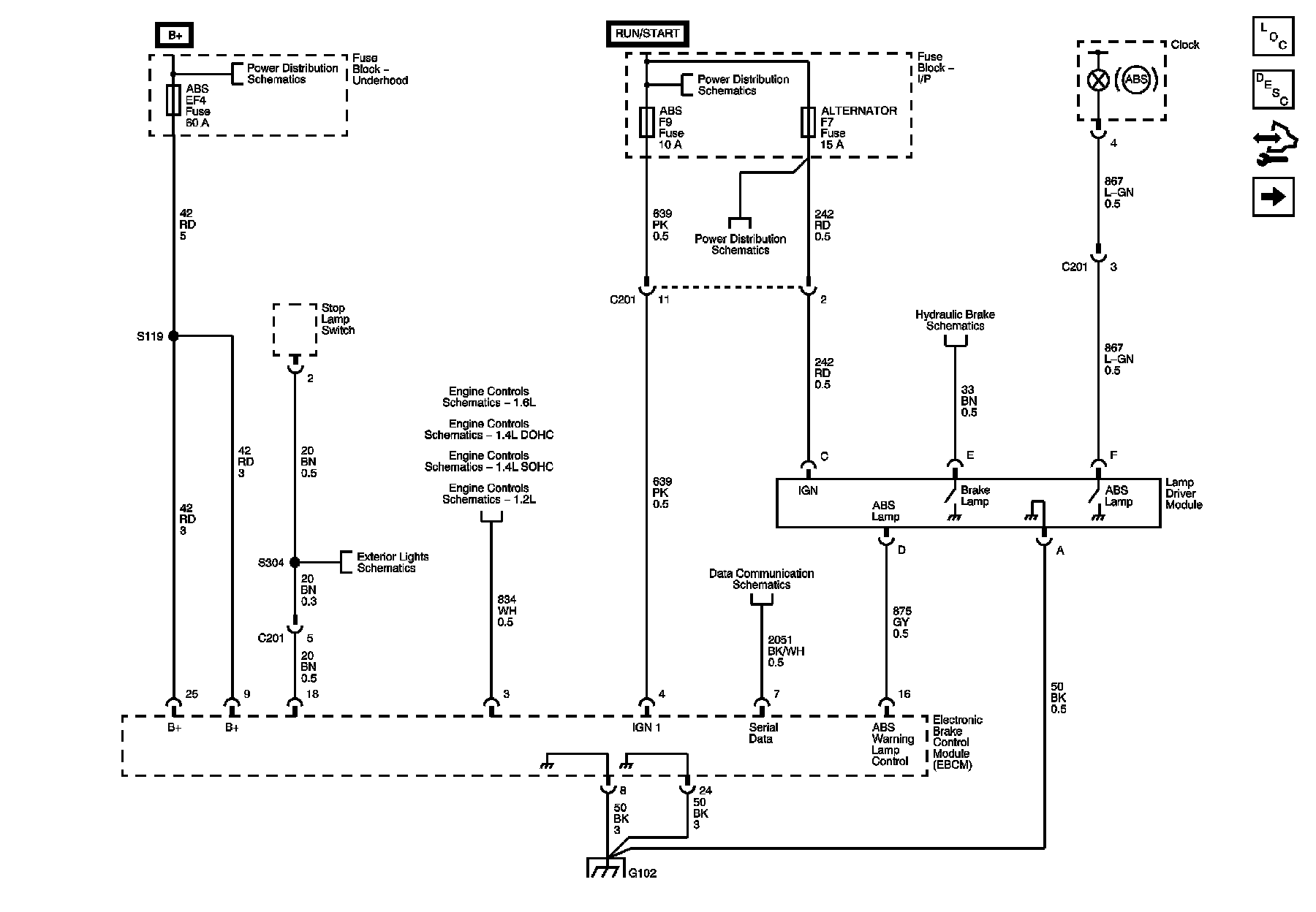

Power, Ground and Inputs

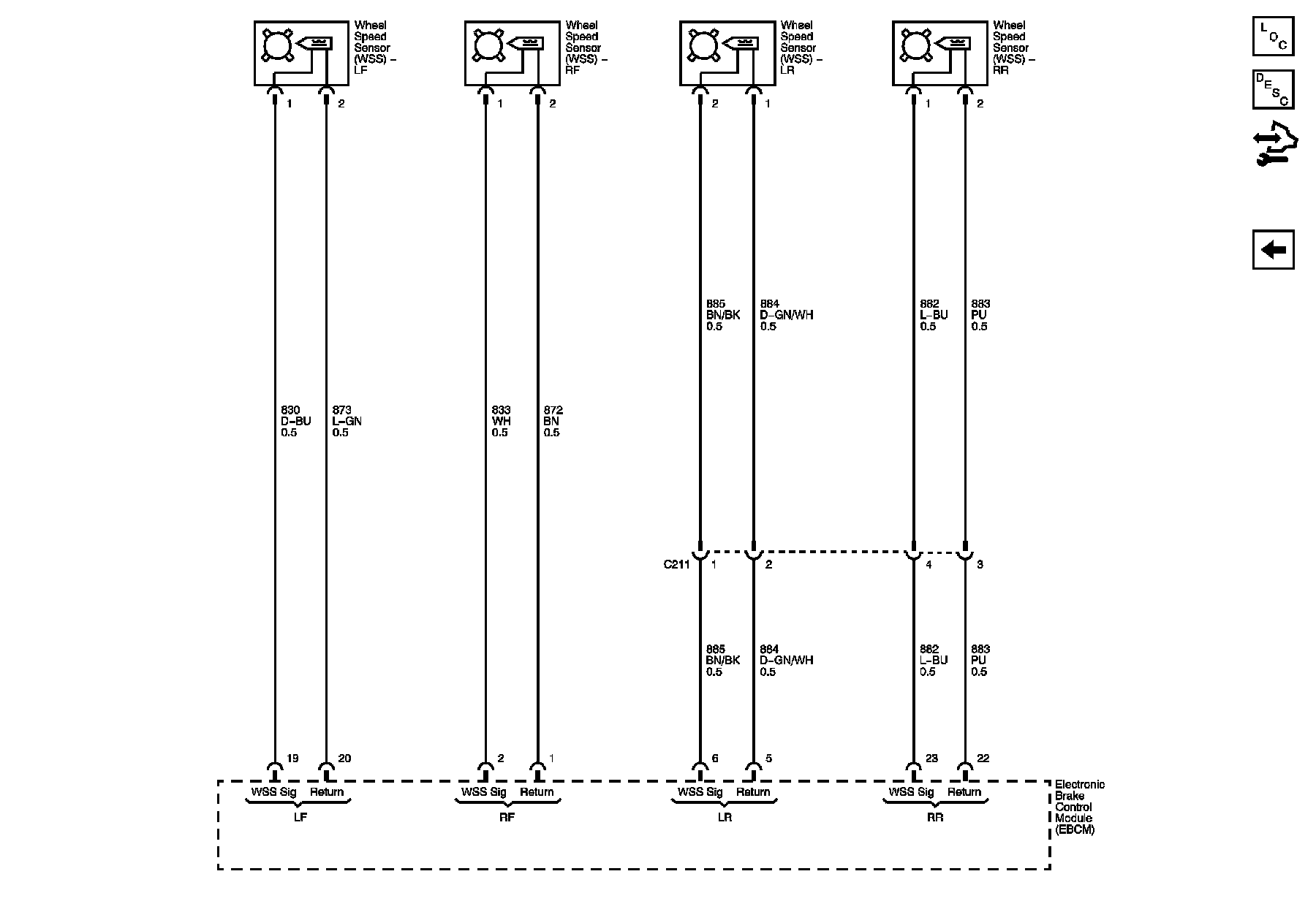

Wheel Speed Sensors
