Driver Information System Diagrams (Hatchback)

Driver Information System Schematics (Hatchback)

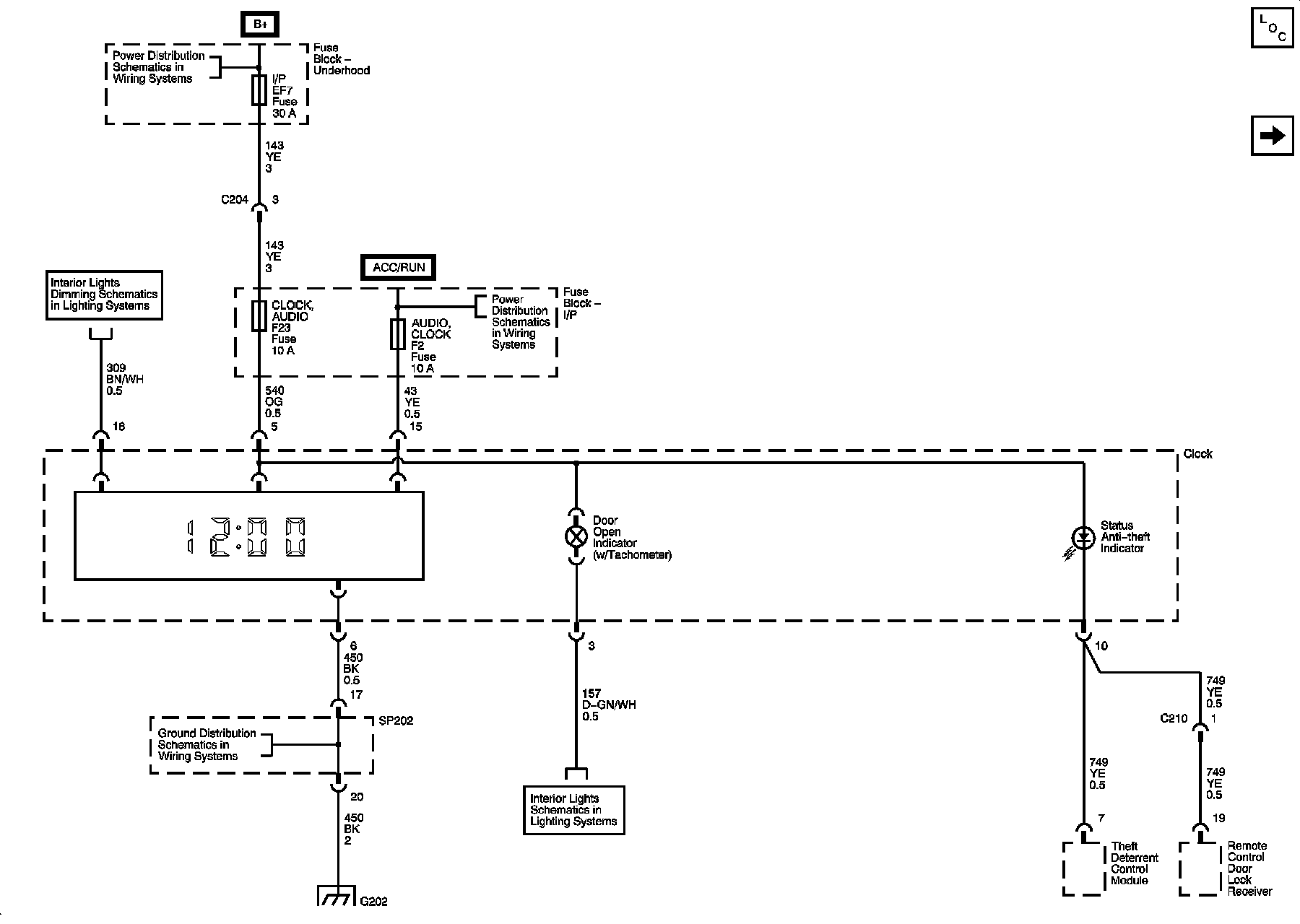

Clock

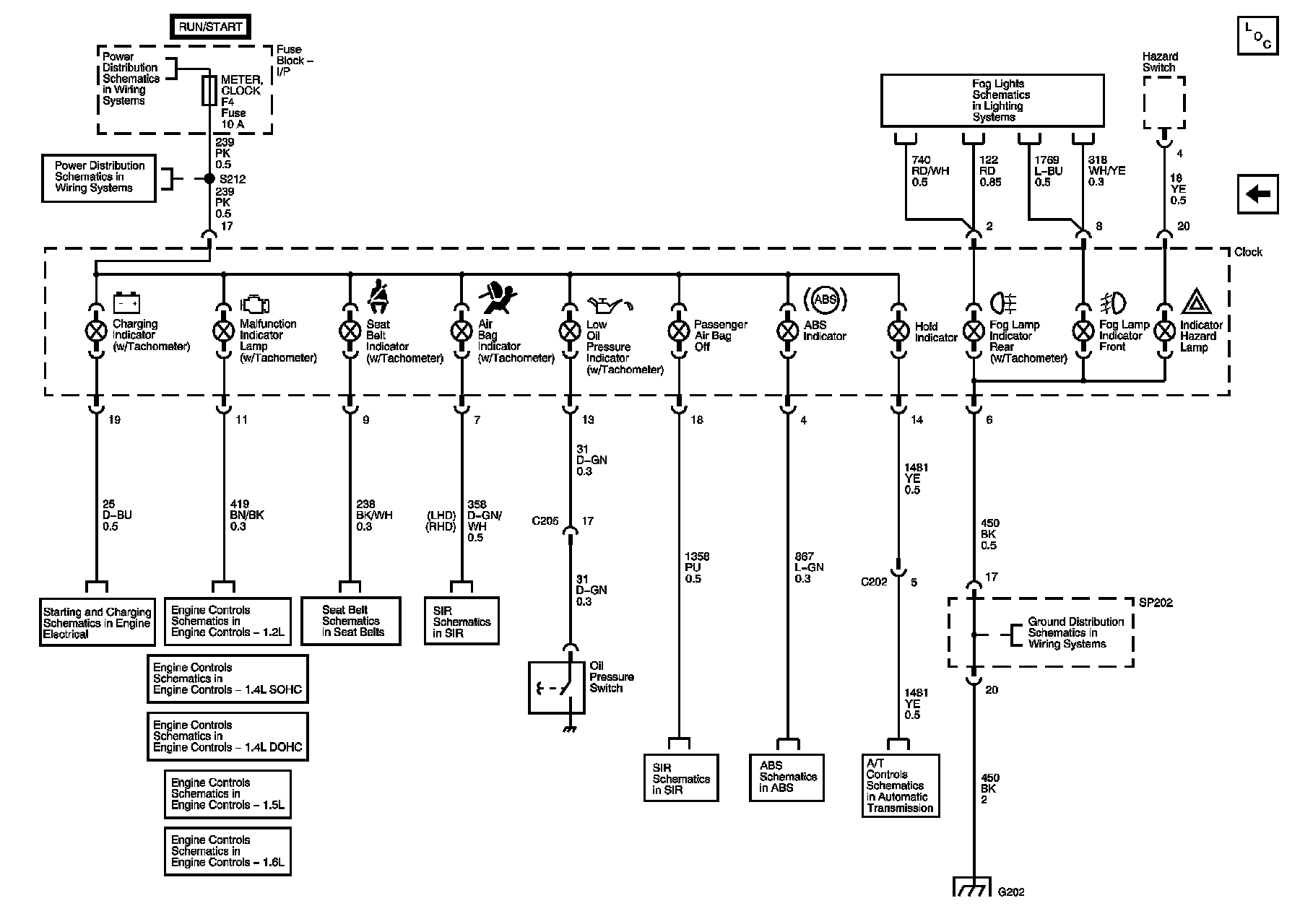

Indicators
