Instrument Cluster Diagrams (Hatchback)



Instrument Cluster Schematics (Hatchback)

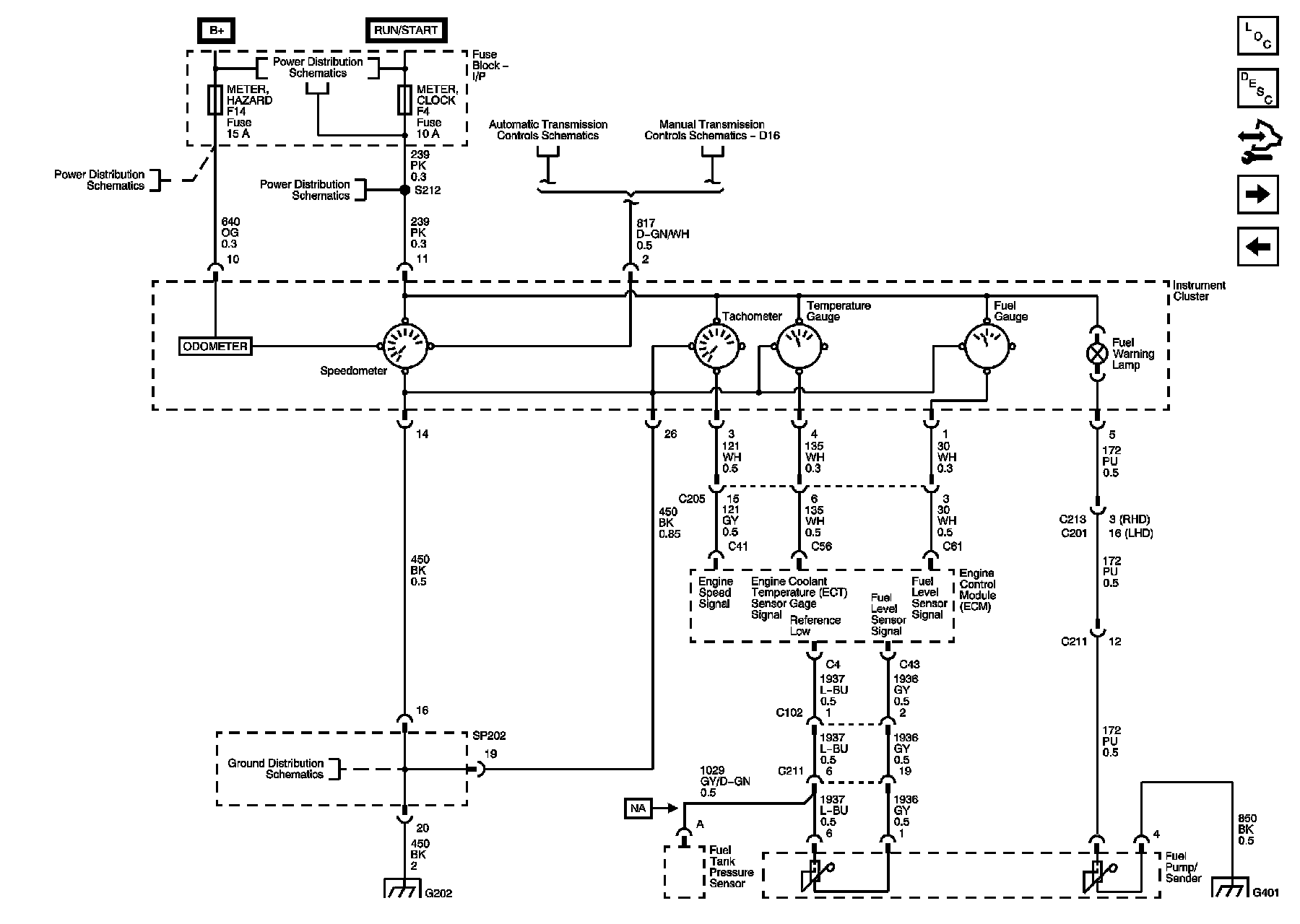

1.6L Gages

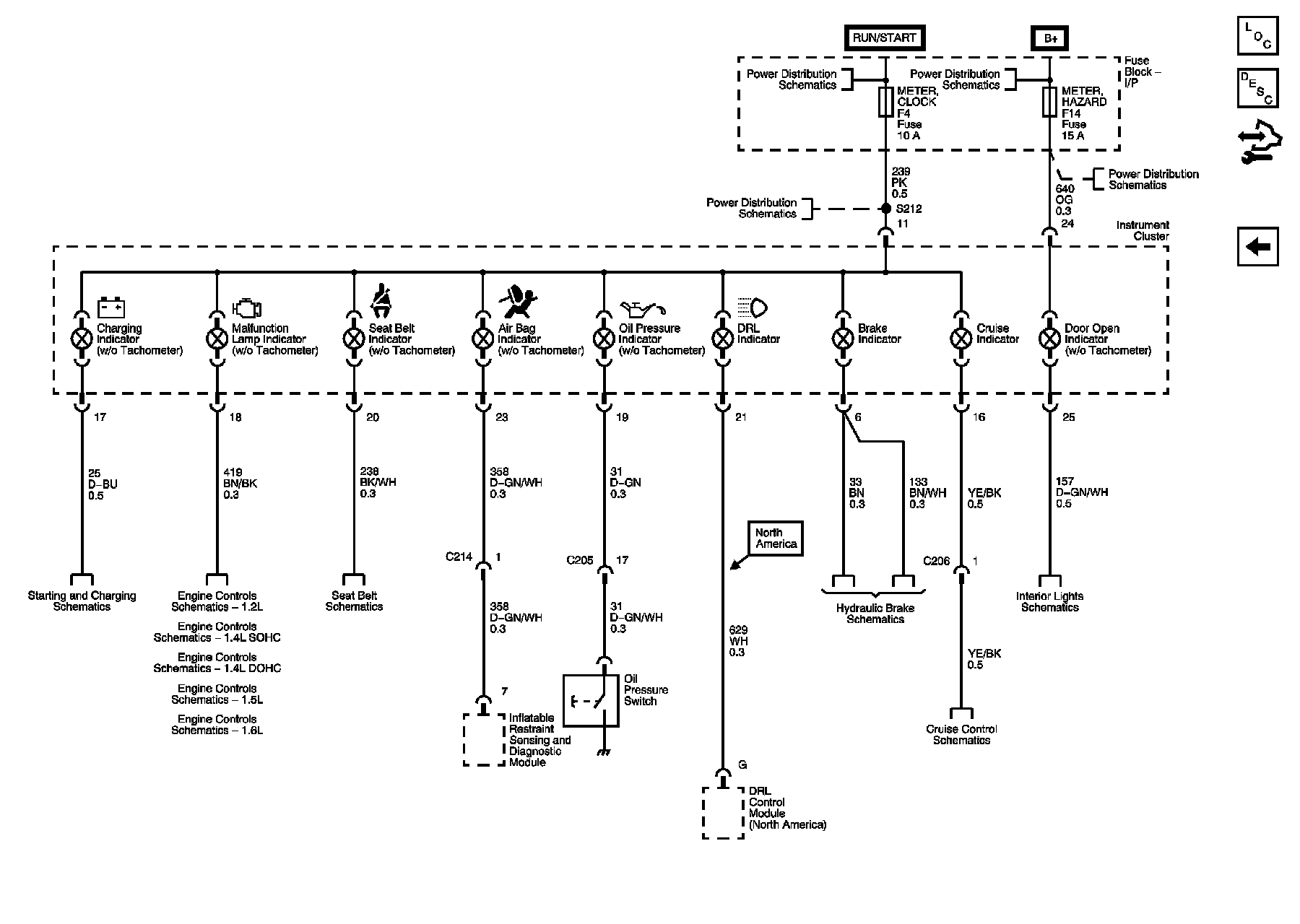

Indicators - 1 of 2

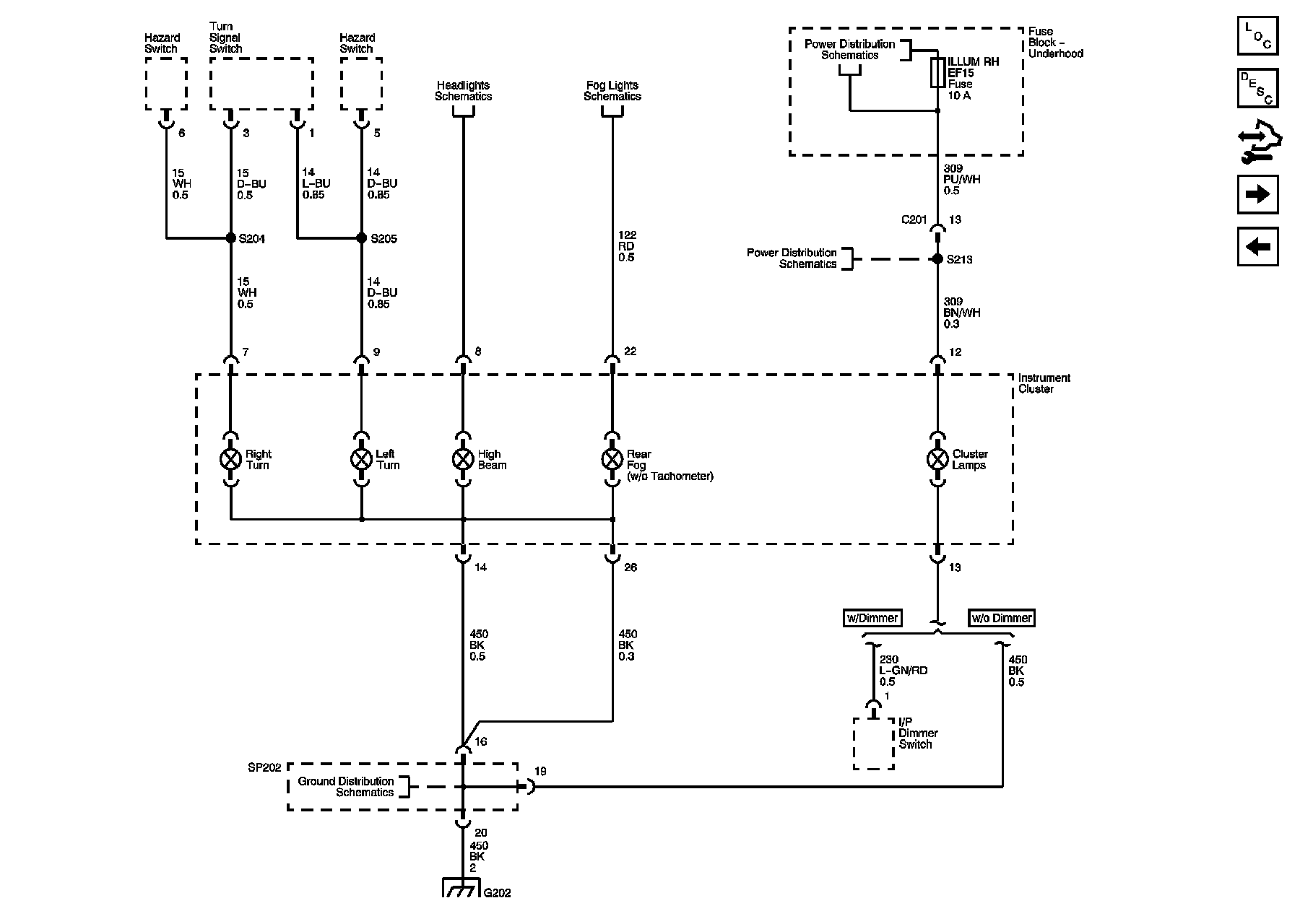

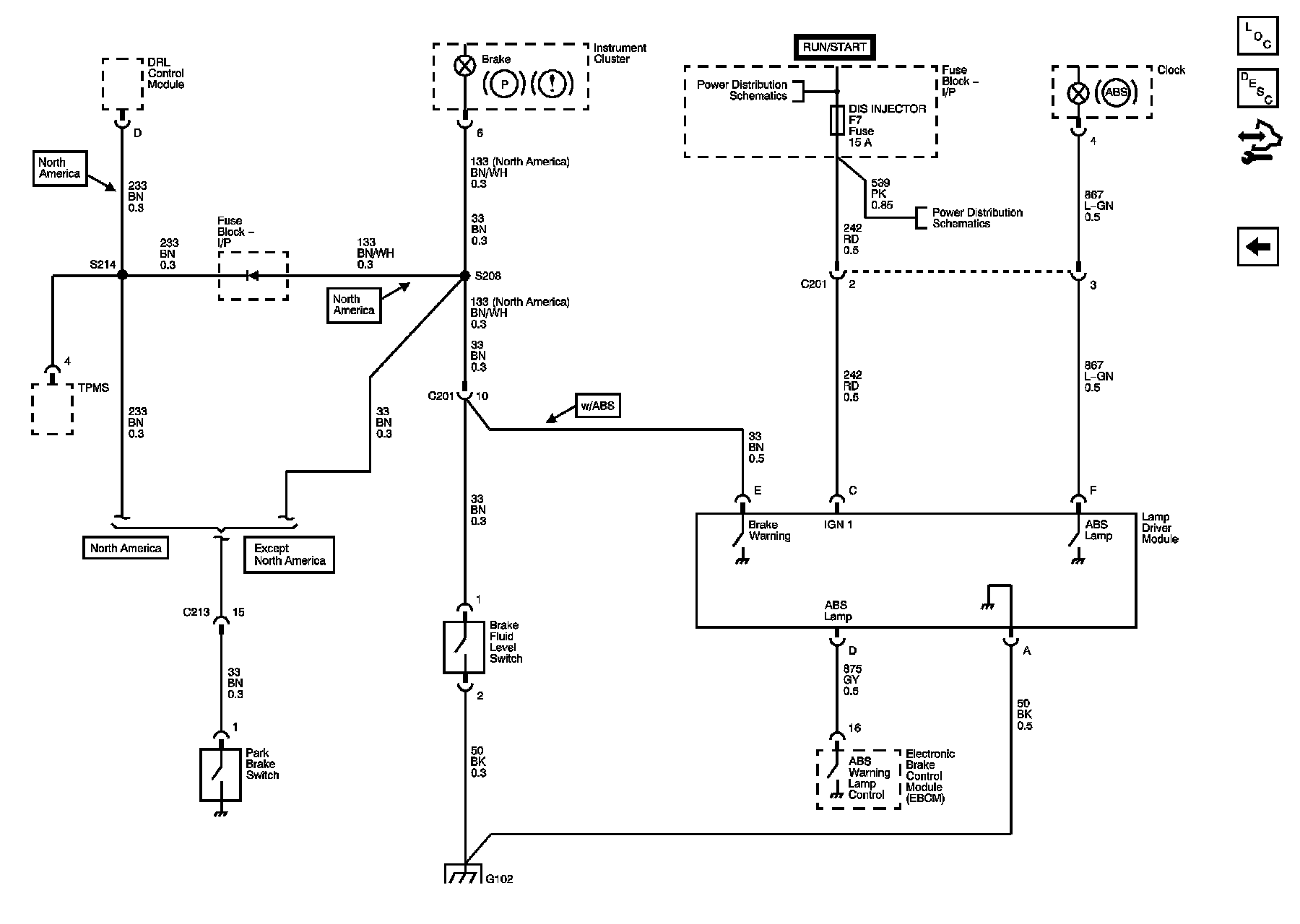

Indicators - 2 of 2





I/P Cluster
