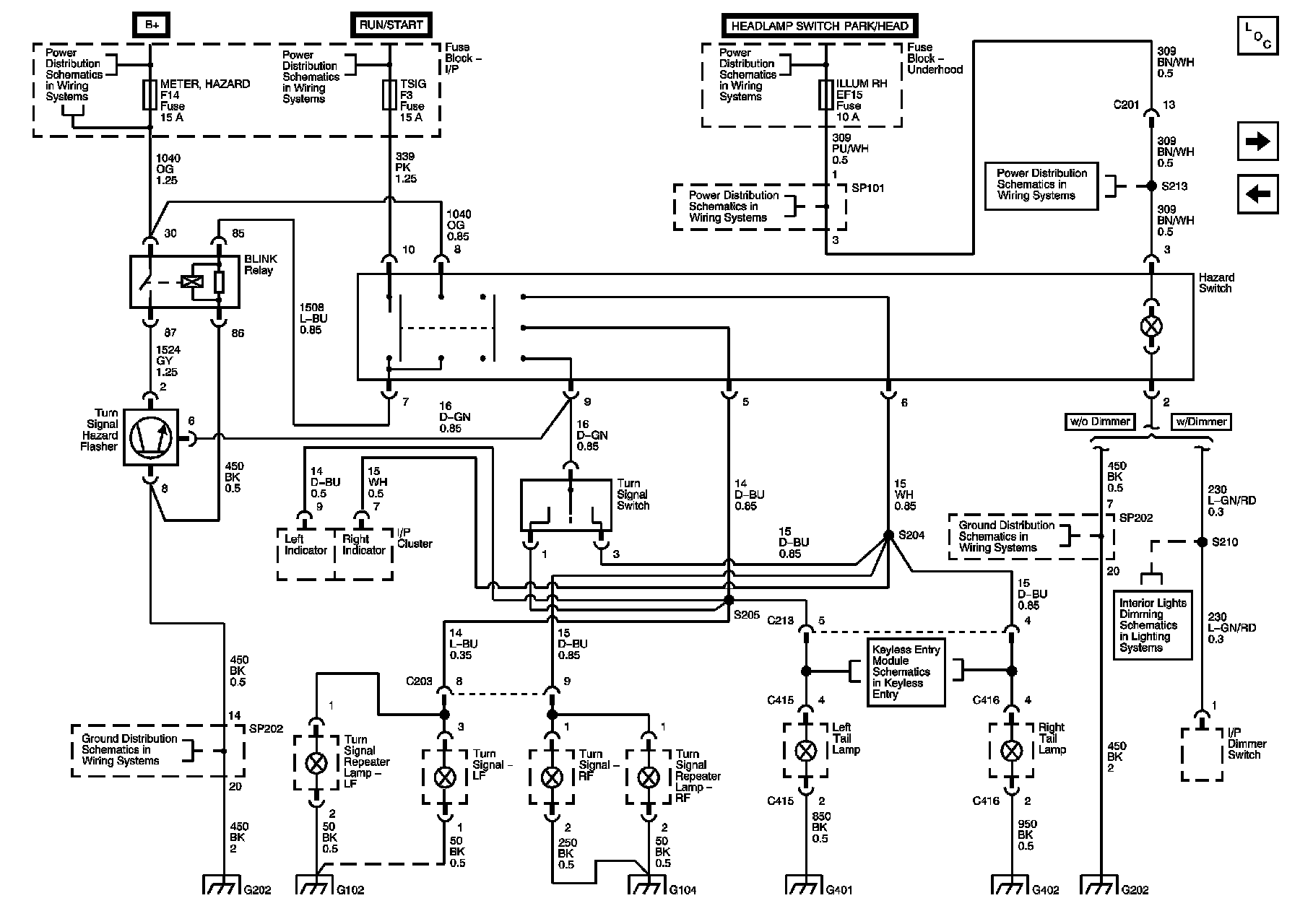

Exterior Lights Diagram 3 (Hatchback)

Exterior Lights Schematics (Hatchback)

Turn Signals

Exterior Lights Diagram 3 (Hatchback):
