Headlight Leveling Diagram (Hatchback)

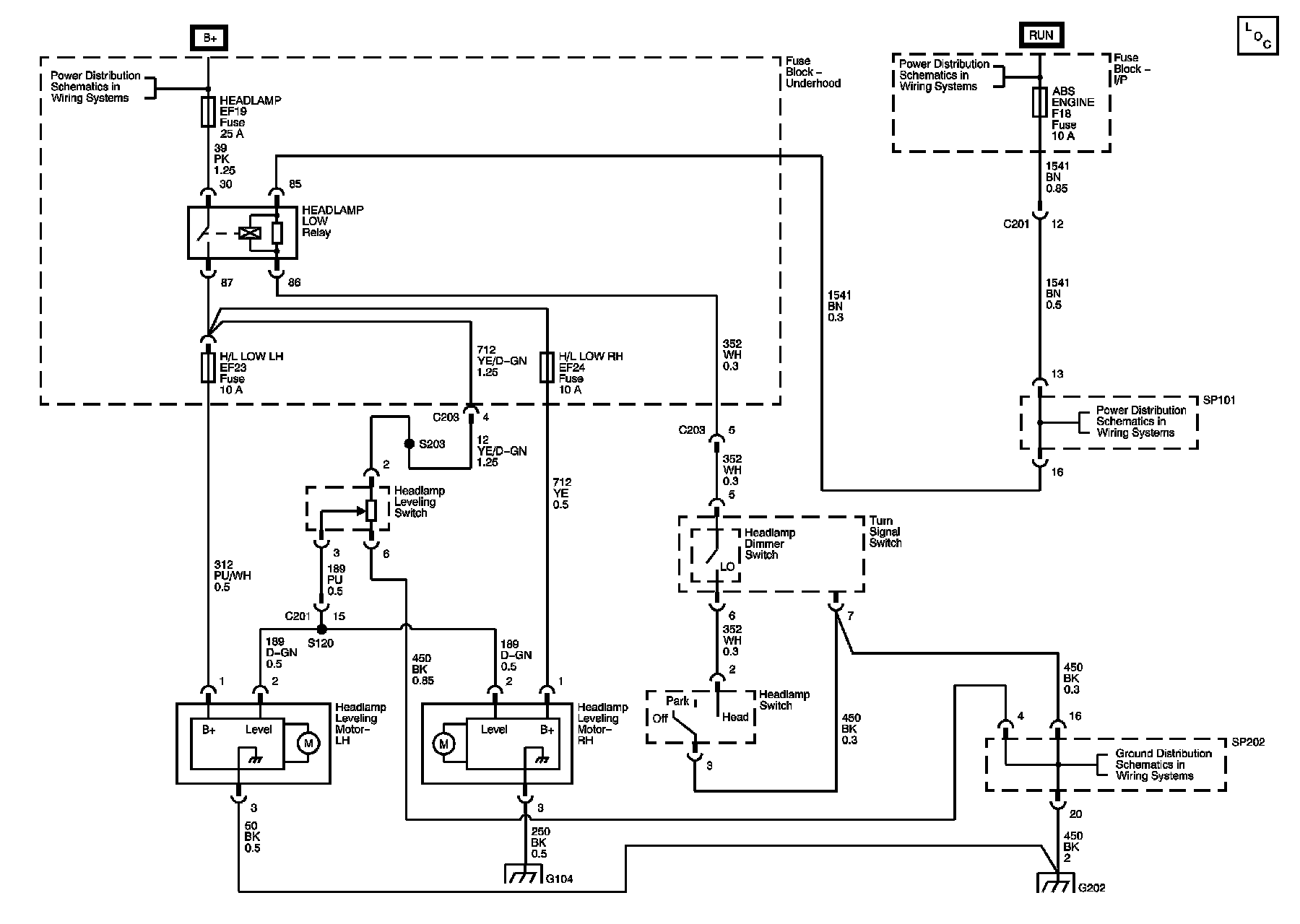

Headlight Leveling Schematics (Hatchback)

Headlight Leveling Diagram (Notchback):
